0.3u Fan Filter Unit Air Conditioner Terminal HEPA Filter For Laboratory Clean Room

0.3u Fan Filter Unit Air Conditioner Terminal HEPA Filter For Laboratory Clean Room

Air Conditioner Terminal HEPA Filter

Laboratory Clean Room Fan Filter Unit

0.3u Fan Filter Unit

Place of Origin:

Sichuan, China

Brand Name:


Contact Us

Request A Quote
Product Details
99.95% ~99.995%
Box Filter
Hot-melt Adhesive
500~600 M3/h
Filter Media:
HEPA Filter With Glass Fiber Media
Body Material:
Aluminium Alloy Frame
Customized Size
Payment & Shipping Terms
Minimum Order Quantity
1 Set
USD 80.00-130.00 Pieces
Packaging Details
a Per PCS Packaged with PE Bag, then in carton case
Delivery Time
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Pieces per 2-30days
Product Description

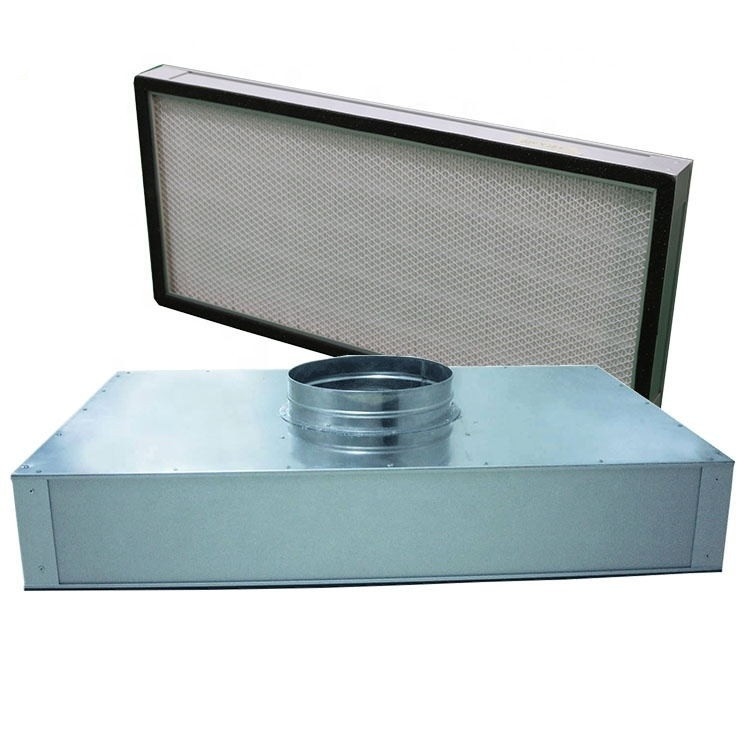

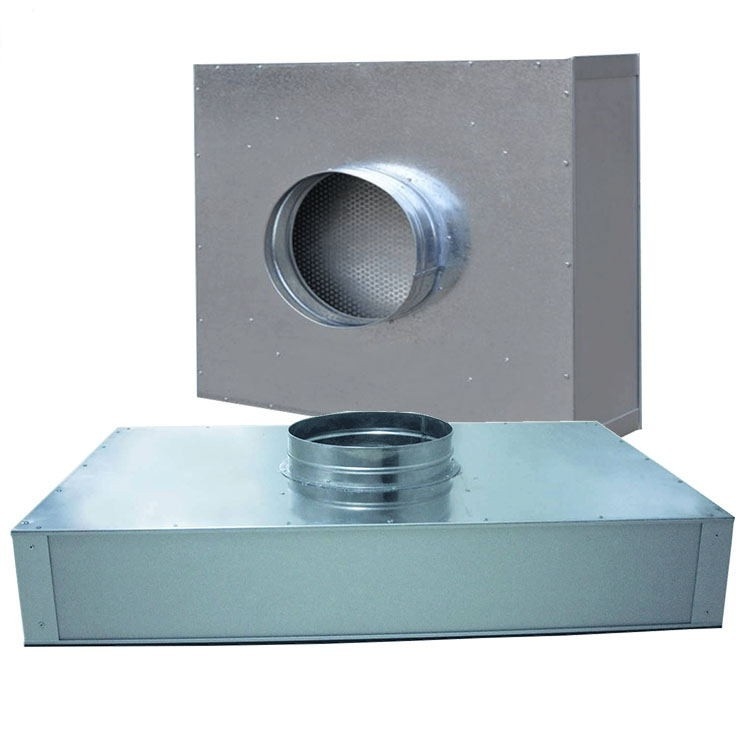

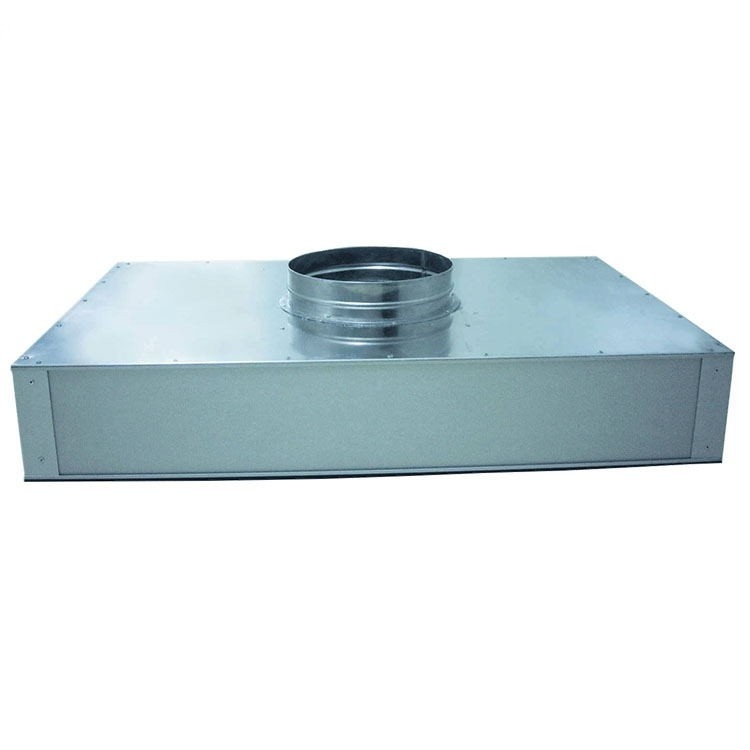

Fan Filter Unit Air Conditioner Terminal HEPA Filter For Laboratory Clean-room

TRAIRF® Ceiling air diffuser filter HEPA/ULPA Module suitable for both laminar flow and non-laminar flow clean-room of Pharmaceutical , Food Beverage factory , Biotechnology Laboratory .It can create clean-room cleanliness level from 10,0000 class to 10 class according to module units covered number in the ceiling .

TRAIRF® hepa filter h13 module all kinds of ceiling systems.Light weight ,small volume make it easy to transport ,installation simple.Module standards thickness size available in 150mm,180mm, Three air intake sizes 10inch, 12inch and 20 inch to meet international universal HEPA Filter size.



  • Light Weight Low cost Easy to installation

  • Fully disposable

  • Mechanical clamping structures

  • Thickness size available in 150 mm ,180 mm

  • Efficiencies of 95% up to 99.9995% @ 0.3 microns

  • Testing according to EN-1822 standard

  • Flammability: UL Classified Relative

  • Humidity: 100%

  • Standard Size


Disposable Ducted Ceiling Terminal Filter HEPA/ULPA Module Using anodized aluminium alloy as box body material,HEPA/ULPA filter media manufactured from ultra-fine fiberglass, it designed into continuity fold paper for providing larger filtration area. Air can through media smoothly with low resistant. What's more, folded media separated through hot melt adhesive to make sure there are no chemical pollution air release to our clean space.



The HEPA Filter is sealed in an anodized aluminum frame that contains a gelled channel to insure air leak-free,tight seal. Meanwhile the HEPA Filter is protected by an anodized aluminum housing and diffuser screen, with a damper control and challenge port for the measurement of challenged aerosol.

Model Outside Dimensions(mm) Rated air flow(m³/h) Initila resistance(Pa) Eficiency(class)
TR-CYT-1 610*610*150 1000 ≤220 ≥99.99
TR-CYT-2 915*610*150 1500 ≤220 ≥99.99
TR-CYT-3 1220*610*150 2000 ≤220 ≥99.99

*Customizable Size
