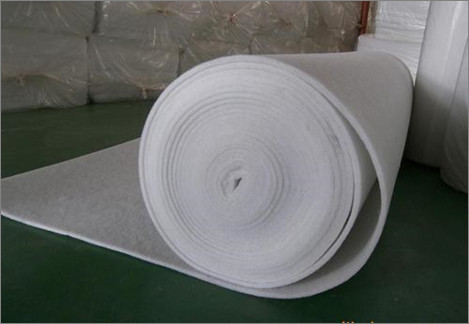

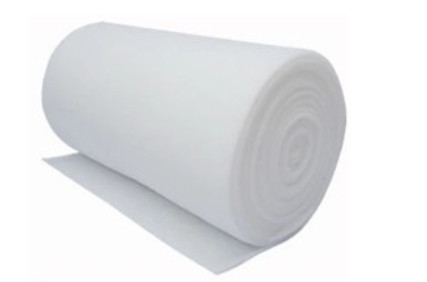

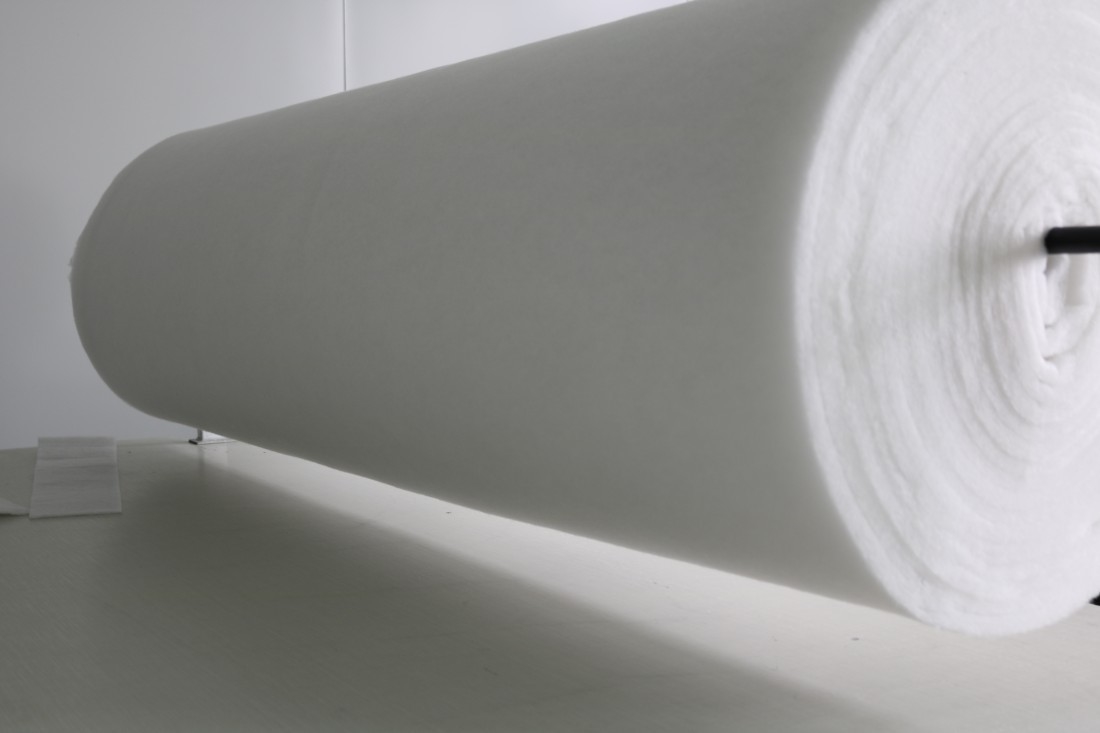

G3 G4 Primary Filtration Filter Material Roll Filter Cotton For Air Filter Media
G3 G4 Primary Filtration Filter Material Roll Filter Cotton widely used as filter media in the ventilation system of cleanrooms where resistance to high humidity and chemicals is desirable. Especially used in the train or the subway, where the place has air-conditioner, pre-filter through air filter program.
Features of Product:
1.Washable and reusable,washable about 2-3 times
2.Low resistance
3.Excellent flame retardant
4.Flexible
5.Economical and practical
Parameters:
1.Media: synthetic fiber with gradual density.
2.EN779 class: G2
3.EUROVENT4/5 class: EU2
4.Average arrestance:75%(ASHRAE52.1-1992)
5.DIN53438 Non-flammability Standard: F1
6.Final resistance: (suggested) 100Pa-(max)200Pa
7.Max. Dust holding capacity: 430g per square meter
8.Temperature resistance: 100℃
9.Available in all standard cut sizes, and rolls.
|
TR-CXM-1 |
Dimensions(m) |
Rated air velovity |
Initial pressure drop(Pa) |
Rated air flow(m³/h) |
||
|
Roll |
Length |
Height |
Thickness |
|||
|
20 |
1/2 |
20±2 |
1.0 |
18 |
3600 |
|
* Customized Size
