Product Description
|
Material and performance |
|
|
Product Name |
hepa filters h13 |
|
Frame Material |
Aluminum Alloy ,galvanized sttel,stainless steel 301 |
|
Filter media |
High- quality Fiberglass filter paper |
|
Partition |
Hot melt adhesive |
|
Sealant |
Polyurethane adhesive |
|
Separator |
Paper/ Aluminum foil |
|
Max. temperature |
85°C |
|
Max. humidity |
80%RH |

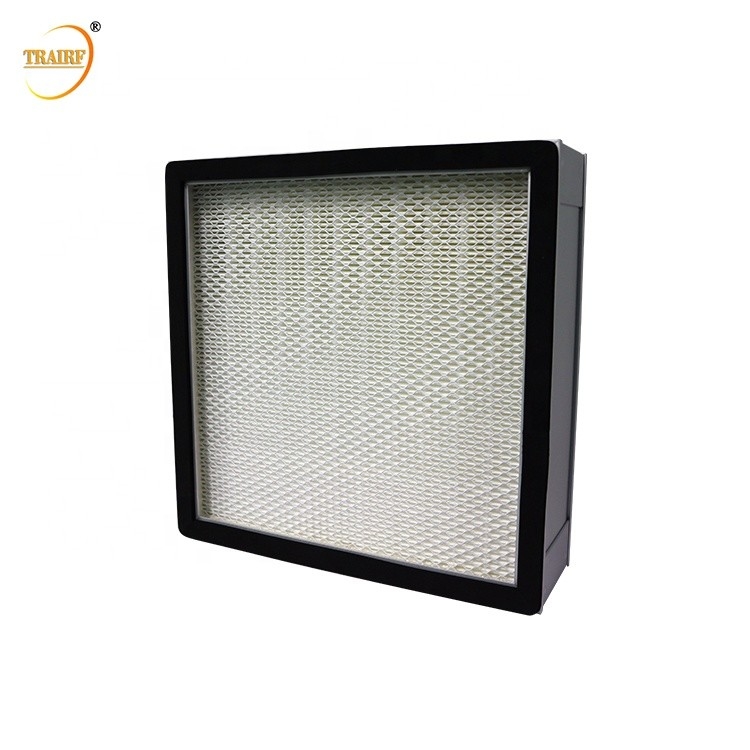

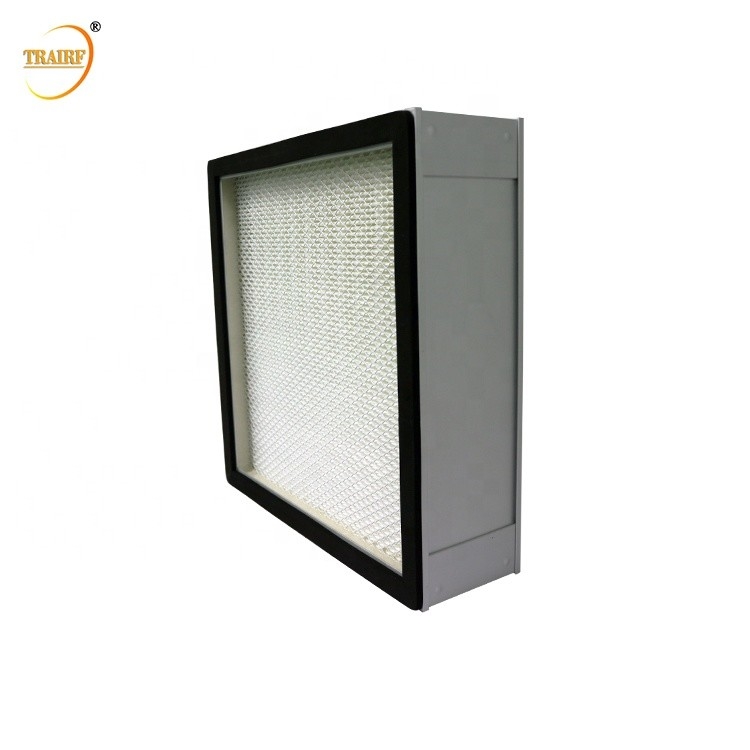

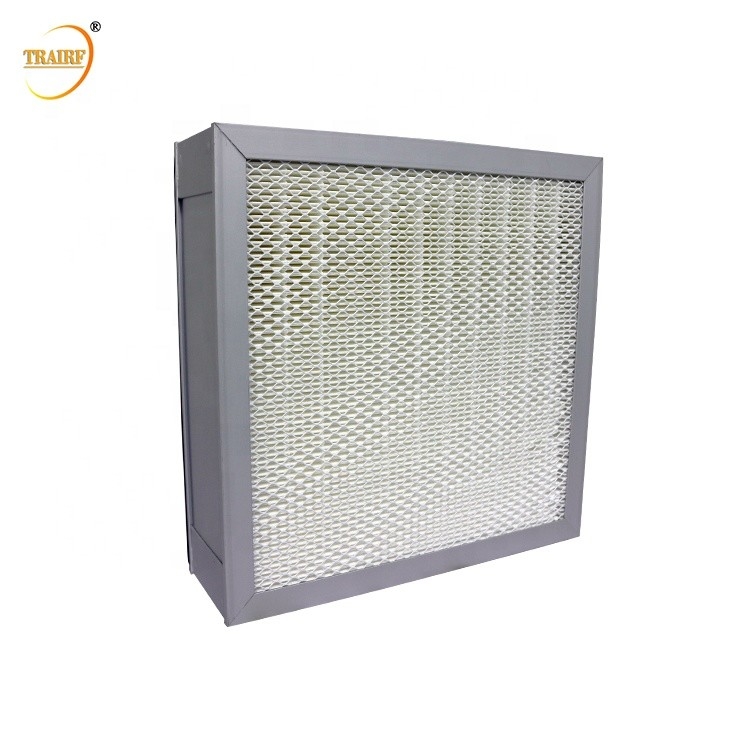

HEPA Filter
Hepa air filters unit for cleanroom, is the terminal device in purified air supply system. It aims to provide the air with desirable static pressure before passing through HEPA filter, to enable uniform air-out.
The replacemrnt hepa requiring filed leak detection is provided with DOP dust and leakage detection mouth, and differential pressure detection mouth and lower damper based on customer’s requirements.
Specifications:
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) |
| TR-WGB-1 | 610×640×50 | 700 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-2 | 915×610×50 | 1000 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-3 | 1220×610×50 | 1000 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-4 | 610×610×69 | 1000 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-5 | 915×610×69 | 1500 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-6 | 1200×610×69 | 2000 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-7 | 610×610×80 | 1200 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-8 | 610×610×90 | 1400 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-9 | 610×610×100 | 1600 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-10 | 1170×570×69 | 1800 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-11 | 1170×570×80 | 2200 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-12 | 1200×610×80 | 2500 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-13 | 1200×610×90 | 2800 | ≤220 or ≤140(HV) | ≥99.99 |
| TR-WGB-14 | 1200×610×100 | 3200 | ≤220 or ≤140(HV) | ≥99.99 |
* Customizable Size
HEPA filters are designed to arrest very fine particles (dust) effectively.
Dust hepa filter sheet is widely used in clean rooms. Besides, hepa air purifier(air cleaner) also suitable for ventilation system and havc system.
bio filter H11 H12 H13 H14
There are a number of sealing modes, such as dry-type sealing, wet-type sealing, dry & wet double sealing negative pressure type, wet-type double sealing negative pressure type available for customer’s option. The case material may be plastic-spry steel plate, S304 stainless steel plate, aluminum alloy section, etc.
Details:
1.Strong aluminum alloy frame to protect whole structure.
2.Hard-wearing rubber to prevent scratches on the frame.
3.Perfect adhesive pouring technology to ensure no air leak.
4.Fiber Glass Filter Paper:high efficiency media, high dust holding capacity and low resistance.
Applications:
HEPA air filter suits for all industrial filtration workplaces.
For example,Laminar Air Flow Hood, Biomedical,Vehicles,Airlines,Heating, air conditioning,respiratory protection, clean rooms, industrial processes, and building ventilation systems, Whole House Air Cleaning Systems, Electronic Air Filters for High-End Residential & Commercial Facilities.
Package details:
1.FCL Order Filter packaged by 5 layers carton case.
2.LCL order filter packaged by wooden case.
3.According to customer's requirements.
