99.99% H13 Deep Pleated High Temp Laminar Flow HEPA Filter

99.99% H13 Deep Pleated High Temp Laminar Flow HEPA Filter

99.99% H13 high temp hepa filter

H13 High Temp Laminar Flow HEPA Filter

H13 Deep Pleated laminar flow hepa filter

Place of Origin:

Sichuan, China

Brand Name:

TRAIRF

Contact Us

Request A Quote
Product Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops, Pharmaceutical Plants, Oven Larminar Air Flow
Material:
Fiber Glass With Paper Or Aluminum Foil Separation
Efficiency:
99.99%
Type:
Deep Pleated HEPA Filter
Frame:
Galvanized, Stainless Steel
Initial Pressure:
220Pa
Work Temperature:
250~300℃
Humidity:
80%RH
Key Word:
Laminar Flow Hepa Filter
Port:
Shenzhen , Shanghai
Payment & Shipping Terms
Minimum Order Quantity
10 units
Price
$80.00/units 10-99 units
Packaging Details
1.FCL Order Filter packaged by 5 layers carton case
2.LCL order filter packaged by wooden case
Delivery Time
2-30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Unit/Units per Month
Product Description

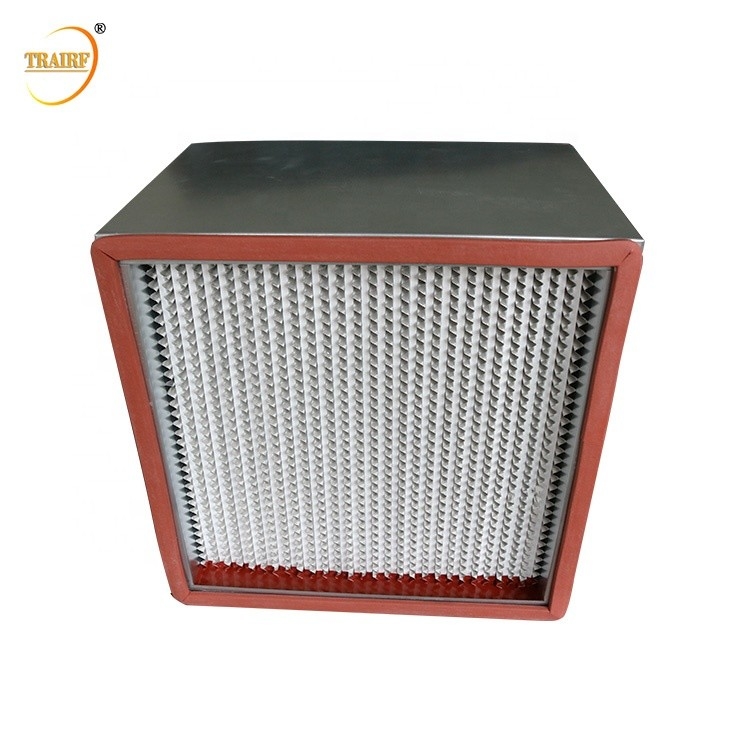

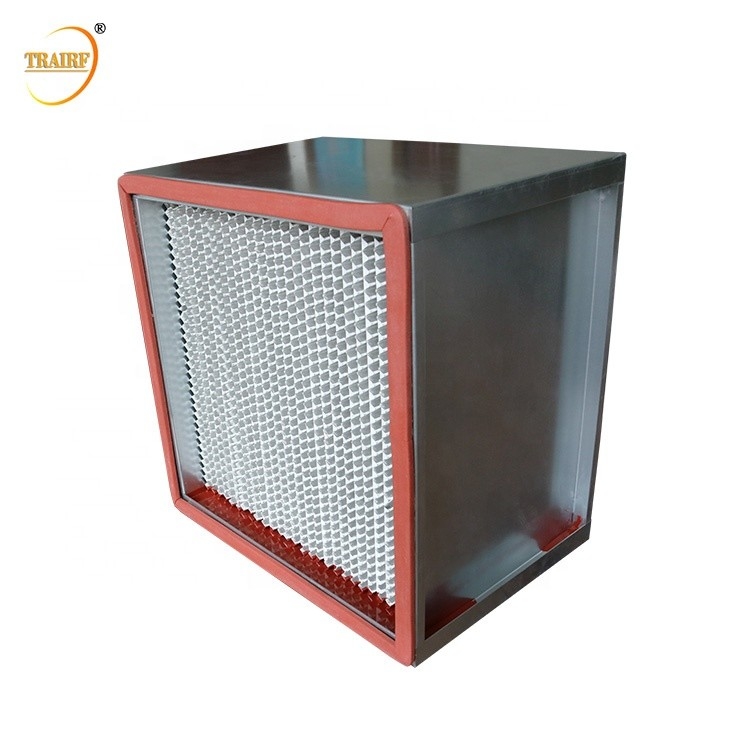

99.99% H13 Deep Pleated High Temp Laminar Flow HEPA Filter

High temperature HEPA filter is an air filter that can withstand temperatures up to 250°C. It uses stainless steel as the frame and glass fiber filter paper as the filter material. Widely used in the spraying industry, oven, chemical, ultrasonic industry and other high temperature purification sites.

The Deep Pleated design uses an aluminum separator as a divider that divides the filter media and creates a airflow path tunnel.



Specification:

Model

Dimensions(mm)

Airflow(m³/h)

Initial Resistance(Pa)

Efficiency(%)(0.3um)

Dust Capacity(g)

TR-NGW-Z1

484*484*120

390

≤220

≥ 99.99

230

TR-NGW-Z2

610*610*120

620

≤220

≥ 99.99

370

TR-NGW-Z3

915*610*120

930

≤220

≥ 99.99

560

TR-NGW-Z4

1220*610*120

1500

≤220

≥ 99.99

740

TR-NGW-Z5

484*484*150

530

≤220

≥ 99.99

320

TR-NGW-Z6

610*610*150

1000

≤220

≥ 99.99

510

TR-NGW-Z7

915*610*150

1500

≤220

≥ 99.99

770

TR-NGW-Z8

1220*610*150

2000

≤220

≥ 99.99

1020

TR-NGW-Z9

484*484*220

1000

≤220

≥ 99.99

600

TR-NGW-Z10

610*610*220

1600

≤220

≥ 99.99

920

TR-NGW-Z11

915*610*220

2300

≤220

≥ 99.99

1340

TR-NGW-Z12

1220*610*220

3000

≤220

≥ 99.99

1750

Note: Customization is available.



Cleanliness level

This is similar to the normal HEPA Filter, which achieves an efficiency rating of H13 99.97% @ 0.3micron and H14 99.995% @ 0.3 micron. Different efficiencies can be achieved using different fiberglass materials. Each High temperature HEPA filter is tested by smoke to ensure that the filter is not leaking. Packed in plastic bags to prevent long-term storage from being oxidized. A single filter is packed in carton and then secured with wooden boxes to ensure safety during transport.

99.99% H13 Deep Pleated High Temp Laminar Flow HEPA Filter 0



Dimension

  • Thickness 150mm or 292mm ( 6 / 12 inch )
  • 610*610*292 / 150mm ( 24*24*12 / 6 inch )
  • 305*610*292 / 150 mm ( 12*24*12 / 6 inch )

Temperature

  • Max temperature resistance 250°C, 300°C, 350°C,400°C

Efficiency

  • H10, H11, H12, H13, H14, U15 EN:1822

Features:
1.High efficiency ,high working temperature,low resistance,good uniformity winds,Low initial pressure drop,large dust holding capacity ,environmental friendly and long service life,air filter manufacturer
2.Efficiency:95%0.3um,99%0.3um,99.9% 0.3um ,99,99% 0.3um 99.999%0.3um ,99.9995%0.12um
3.Sealant:Red Silica Gel(250~280 ) Ceramic Glue(350~400 )
4.Filter media:fiberglass paper H10,H11,H12,H13,H14,U15
