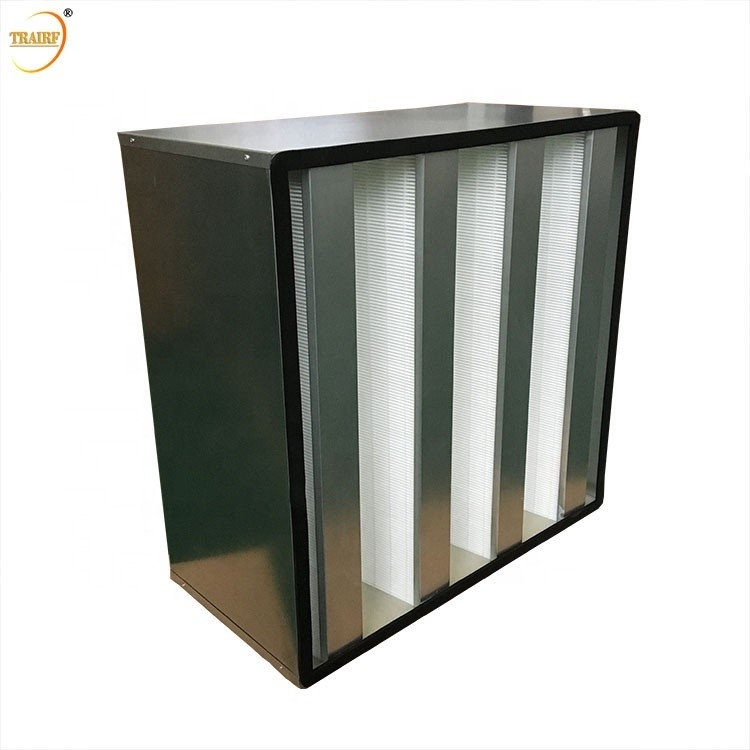

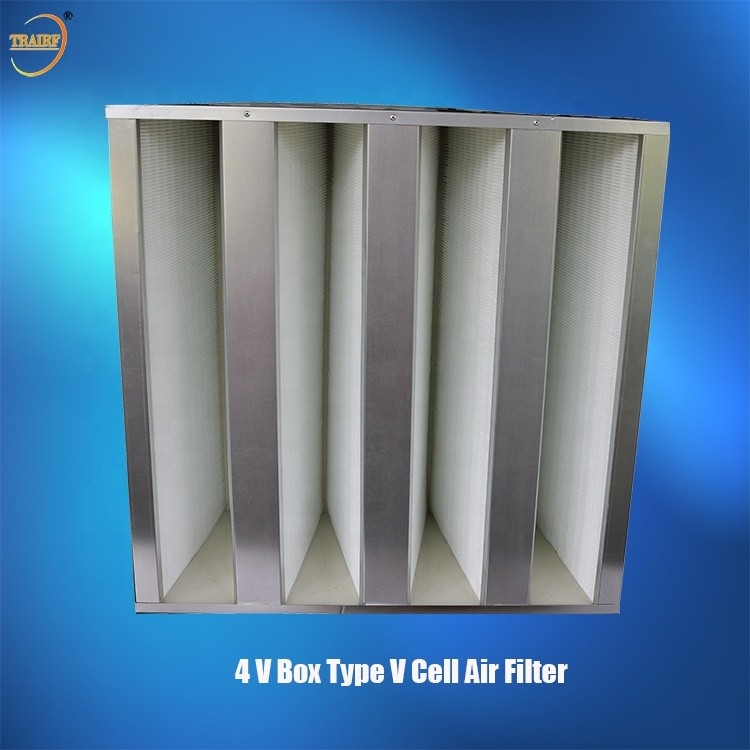

TRAIRF® F9 Metal Frame V Bank HEPA Filter is assembled by multiple mini-pleat packs formed into eight (4 V) to twelve (6 V) pieces of V type pleat.Media is made of water resistant micro-glass fiber. Compare to traditional aluminium foil or paper separator, TRAIRF®F9 Metal Frame V Bank HEPA Filterusing hot melting glue as filter media separator,Each media pack and frame end is completely sealed by fire-retardant epoxy, polyurethane foam or silicon sealant to ensure no chemical air pollution released into our clean space.It can easily remove air contamination such as fine dust, smoke, vapor, soot, pollen, bacteria and etc.
Efficiency:
The series provide guarantee efficiency from 95.99%, 97.99%, 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter.
Frame:
The frame is available for Metal Frame (Galvanized Steel, Aluminum Alloy and Stainless Steel) in Box Type or Header type.

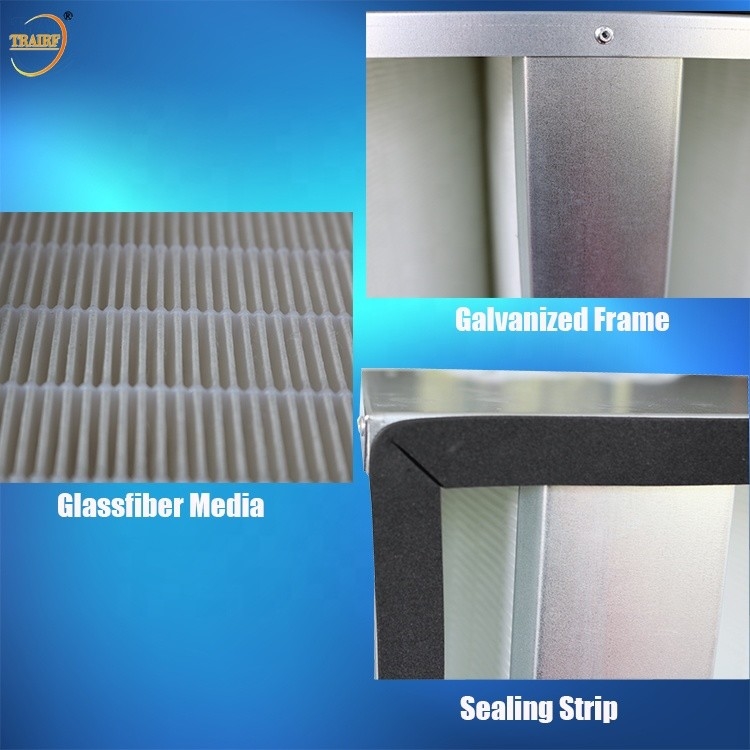

Materials:
1.External Frame: Galvanized metal frame or ABS Plastic Frame
2.Space: Hot-melt gel
3.Sealing glue: Polyurethane
4.Filter Media: Glass Fiber or PP
5.Can be used under the highest temperature humidity:80℃,80%
6.Recommend Final Pressure Drop: 600Pa
Parameter:
|
Model |
Dimensions(mm) |
Airflow(m³/h) |
Initial Resistance(Pa) |
Efficiency(%) |
Filter Media
|
|
TR-WYG-1 |
287*287*292 |
800 |
≤125 |
95(F8)/99(F9) |
Glass fiber or Synthetic Fiber |
|
TR-WYG-2 |
490*287*292 |
1200 |
≤125 |
95(F8)/99(F9) |
|
|
TR-WYG-3 |
490*490*292 |
2000 |
≤125 |
95(F8)/99(F9) |
|
|
TR-WYG-4 |
592*490*292 |
2000 |
≤125 |
95(F8)/99(F9) |
|
|
TR-WYG-5 |
592*490*292 |
2700 |
≤125 |
95(F8)/99(F9) |
|
|
TR-WYG-6 |
592*287*292 |
1600 |
≤125 |
95(F8)/99(F9) |
|
|
TR-WYG-7 |
592*592*292 |
2400 |
≤125 |
95(F8)/99(F9) |
|
|
TR-WYG-8 |
592*592*292 |
3200 |
≤125 |
95(F8)/99(F9) |
Customized Service is Available
Features:
1.Long service life
2.Large volume, High Dust Hold Capacity
3.Low Resistant Pressure
Product Details:
Certifications
Our Filter quality are guaranteed because Our Factory are passed:
A. CE Certificate Authentication
B. ISO 9001: 2015 Certificate
Package & Shipping
According to filter type, we are provid below package:
Carton Package
Wooden Case
According to your requirement to packing air filter
Shipping Ways:
Shipping by Courier for samples or small quantity order or order which required urgently
Shipping by Air
Shipping by Sea for large quantity order or air shipping fee too high
Shipping by Train for Europe Marketing
