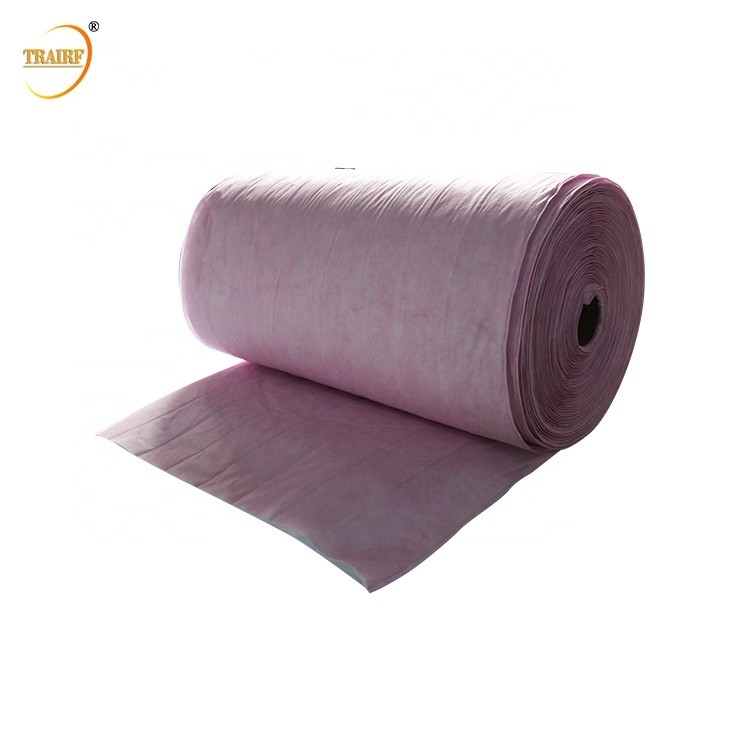

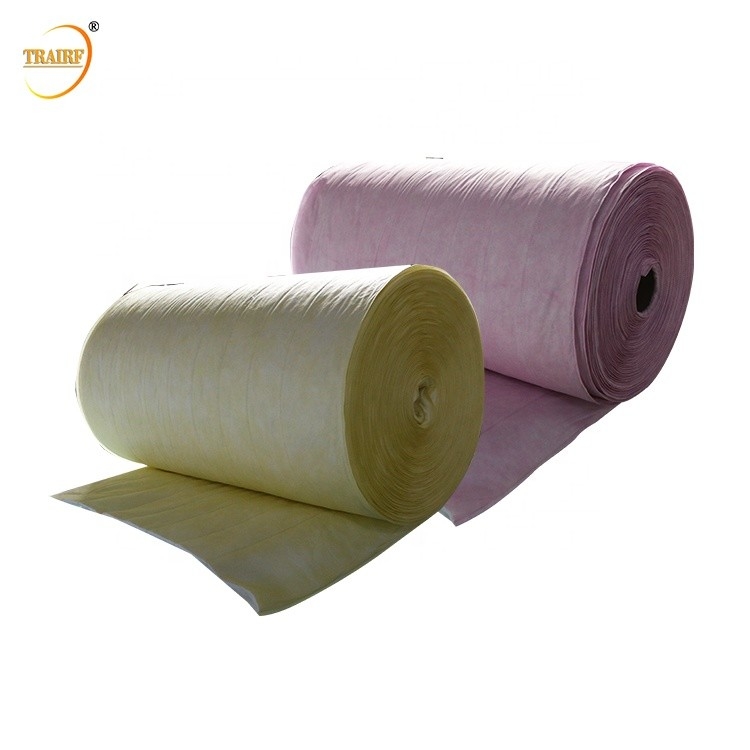

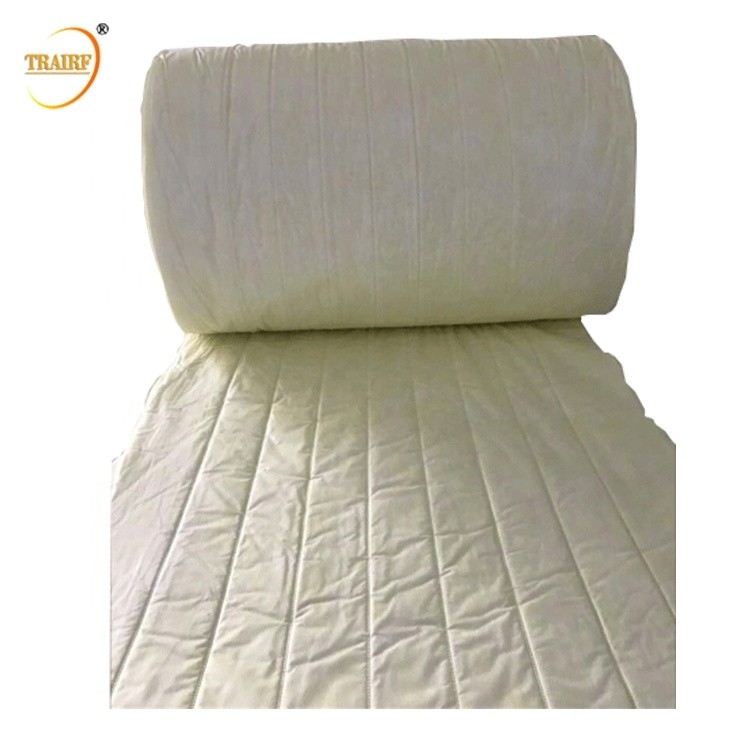

F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll

F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll

0.3u Air Filter Media

F7 Medium Efficiency Air Filter Media

0.3u Synthetic Fiber Air Filter Media Roll

Place of Origin:

Sichuan, China

Brand Name:


Contact Us

Request A Quote
Product Details
Bag Filter
Product Name:
F7 Medium Efficiency Pocket Bag Air Filter Roll Media
Filter Media:
Melt Blown
Air Conditioner Air Filter
Cut Into Roll Or Pieces
Payment & Shipping Terms
$1.50/square meters 1-999 square meters
Packaging Details
1. FCL Shipment Order, using 5 layers carton case
2. LCL Shipment order, using wooden case package outside
Delivery Time
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Pieces per 2-30days
Product Description

Synthetic Melt blown Pocket Filter Roll Media

 Our pocket air filter Media Material Specifiation:

1) Surface layer: 100% high strength non-woven fabric, color can be made according to customer's demand.

2) Bi-component (PP +PET) layer:bi-component structure, in that, the super-fine Melt-blown fiber give the non-woven higher filtration efficiency rate and the PET fiber convey excellent compression resilince property. The two fibers are blended in structure of"Z" shape,which makes the filter media featured with higher air permeability and dust holding capacity, more importantly, it can decrease the pressure drop raising up during its using. it is a newly developed filter media for the applications requesting higher dust holding and low resistance synchronously.

3) Lining Non-woven fabric layer: needle punched media or non-woven compound media applied, design to filter the larger particles at lower initial pressure drop and enhance to reach the max dust volume and helpful pocket longer service life.

4) Middle separator: to make sure the air is pressed evenly throughout the bag.


Pocket Filter Media Parameter Sheet:

Standard          Flow rate 32L/min                 Air Velocity @5.3cm/s

Weight (g/㎡)          ±10%

      China        GB/T14295-93      EURO       EN779:2002    EURO         EN779:2012

Initial Resistance


Initial Efficiency


Medium F5 M5 1 55 150 White
Medium F6 M6 1.8 70 200 Green
Medium F7,F8 F7,F8 2 85 220


F8-Light Yellow

Senior Medium F9 F9 2.4 90 240 Dark Yellow

F7 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Media Roll 0
