Pocket Air Filter Description:

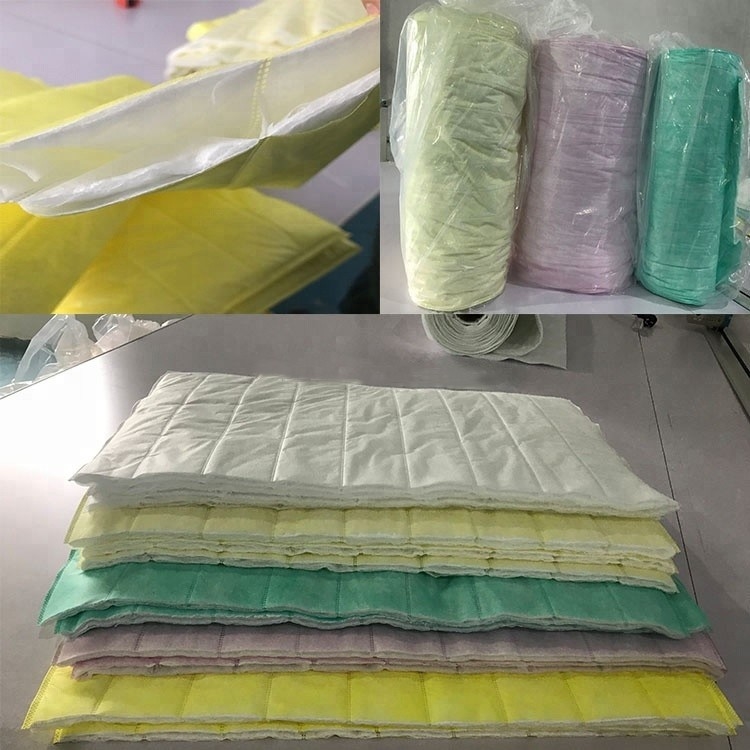

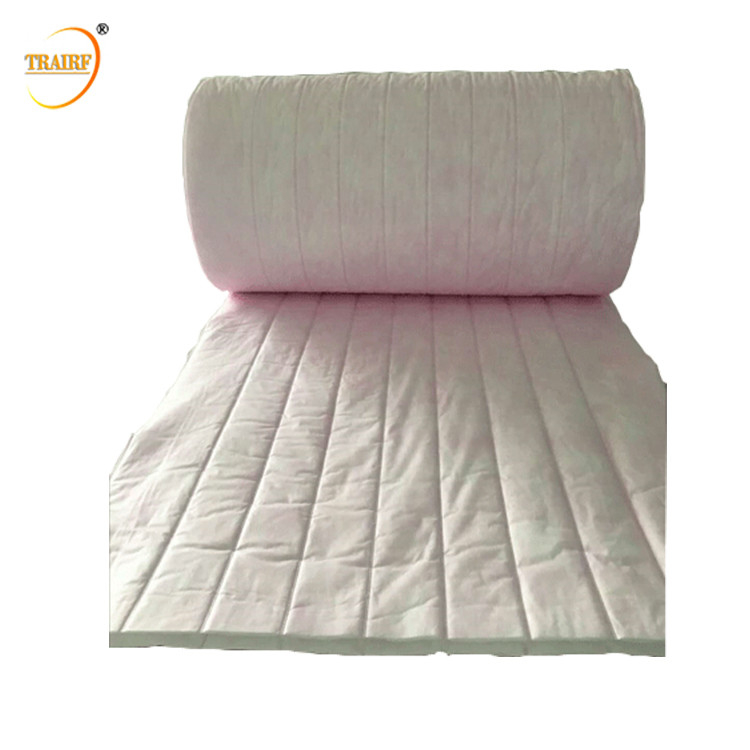

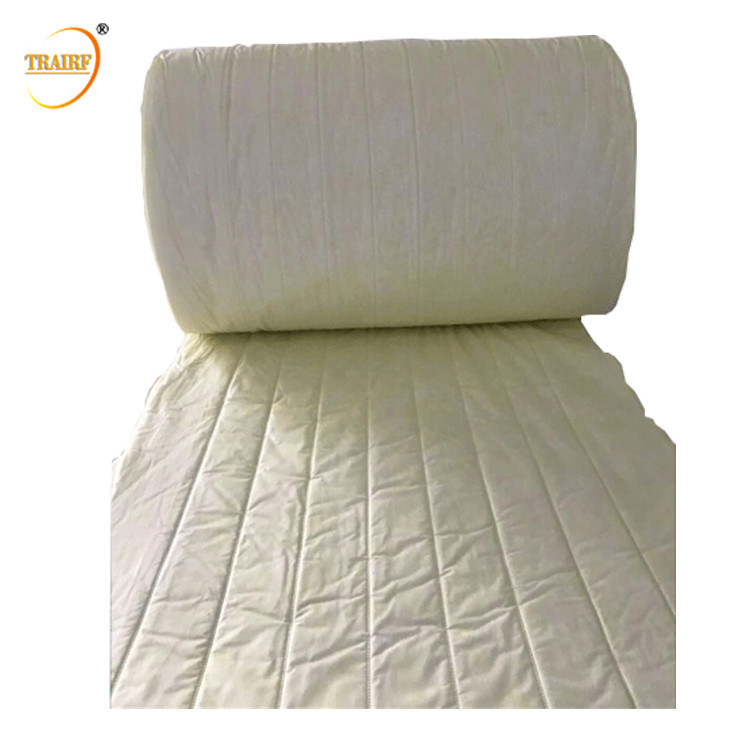

The pocket filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding. TRAIRF® pocket filters are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.
Efficiency:
TRAIRF® Medium Efficiency Pocket Air filters have an average atmospheric dust spot efficiency range 45-50%, 60-65%, 80-85% and 90-95% in NBS Test Method; per ASHRAE 52.2, the efficiency is MERV9, MERV11, MERV12 & MERV14.
Features:
Bag Filter is designed to a V-Shape pocket with extended surface frame. V-Shape pocket design allows every pockets to fully inflate and maintain a proper spacing with adjacent pockets. Air can freely through from front to back .
Frame:
Both glass fiber and synthetic fiber filter media Bag Filters consists of individual pockets, which are bonded to a corrosion-resistant header, aluminium alloy and galvanized frame header are available.
Filter Construction |
||
Filter Type |
Pocket Type |
Extended Surface header type |
Filter Media |
Micro Glass Fiber or Synthetic |
|
Filter Frame |
Aluminium alloy / Galvanized / Stainless Steel |
|
Separator |
individual pockets bonded to a corrosion-resistant header |
|
Pocket Color |
F5- White / F6- Green / F7 - Pink / F8 - Yellow / F9 - White |
Parameter
Class | Size H*W*H(mm) | Bags | Filtration area | Rated air flow(m³/h) | Initial resistance(Pa) | Recommend final resistance |
35%(G4) | 287*592*550 | 3 | 1.86 | 1700 | 15 | 350 |
592*592*550 | 5 | 3.12 | 3400 | 20 | ||
592*592*600 | 6 | 3.78 | 3400 | 20 | ||
45%(F5) | 287*592*550 | 3 | 2.12 | 1700 | 20 | 400 |
592*592*550 | 5 | 3.66 | 3400 | 30 | ||
592*592*600 | 6 | 4.40 | 3400 | 30 | ||
65%(F6) | 287*592*550 | 3 | 2.12 | 1700 | 45 | 400 |
592*592*550 | 5 | 3.66 | 3400 | 80 | ||
592*592*600 | 6 | 4.40 | 3400 | 80 | ||
85%(F7) | 287*592*550 | 3 | 2.80 | 1700 | 100 | 400 |
592*592*550 | 5 | 4.78 | 3400 | 125 | ||
592*592*600 | 6 | 5.78 | 3400 | 125 | ||
95%(F8) | 287*592*550 | 3 | 2.80 | 1700 | 110 | 450 |
592*592*550 | 5 | 4.78 | 3400 | 130 | ||
592*592*600 | 6 | 5.78 | 3400 | 130 |
Customized Service is Available
