Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
Description:

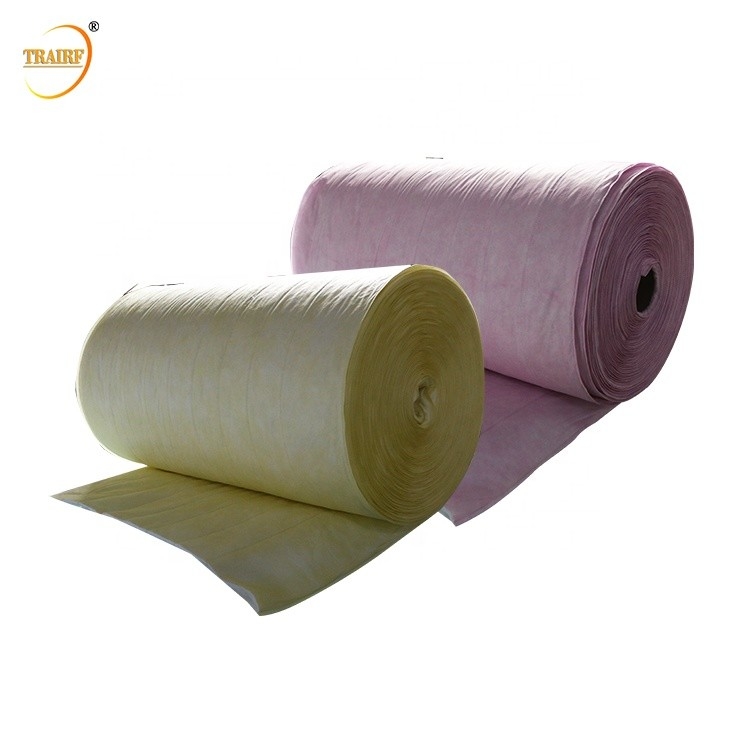

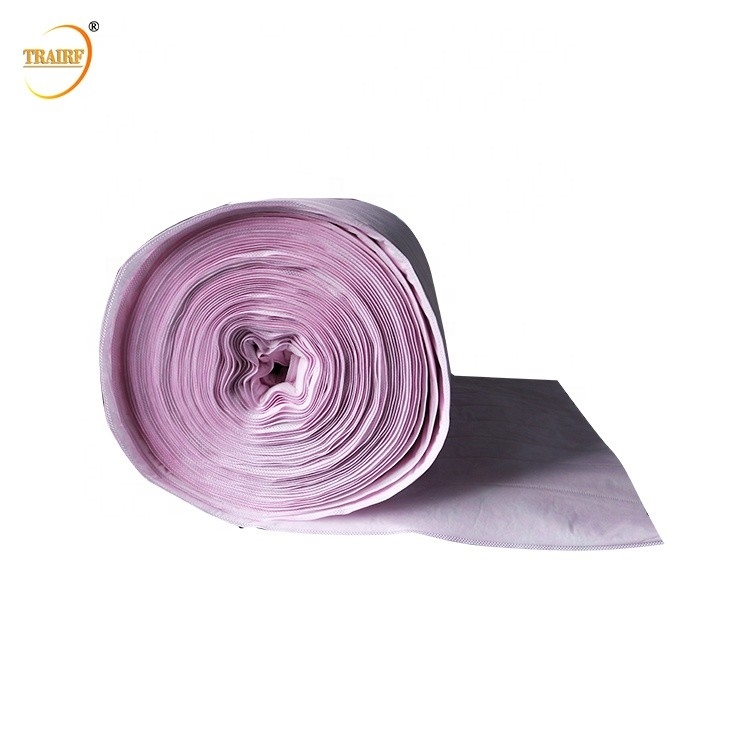

TRAIRF®F5 F6 F7 F8 F9 Synthetic Bag Air Filter Media Rolls is an extended surface air filter designed for most medium and high efficiency air filtration systems.This broad spectrum of styles and models make the main pack extremely versatile and suitable for almost any commercial or industrial air handling systems.
|
Product Details |
1.Style |
Filter Bag/Pocket Filter |
|
2.Feature |
Dust collector, Long Service Life |
|
|
3.Material |
Synthetic fiber,meltblown |
|
|
4.Size |
Customization is available |
|
|
5.Color |
White,Orange,Green,Pink,Yellow,Black |
|
|
6.Frame |
Galvanized,Aluminum alloy,Plastic box |
|
|
7.Is used to |
Air Conditioing system,air handling unit |
|
|
8.Efficiency |
35%-95%,G3,G4,F5-F8 |
|
|
10.Packing |
Carton |
|
|
11.Weight |
Based on size&material |
|
|
Purchase information |
12.Minimum order |
20 pcs |
|
13.Sample time |
3-5 working days |
|
|
14.Lead time |
15-25 days after payment |
|
|
15.Payment |
T/T |
|
|
16.certificate |
ISO9001 ,CE |
SPECIFICAITONS:
| Class | Size H*W*D(mm) | Bags | Filtration area | Rated air flow(m³/h) | Initial resistance(Pa) | Recommend final resistance |
| 35%(G4) | 287*592*550 | 3 | 1.86 | 1700 | 15 | 350 |
| 592*592*550 | 5 | 3.12 | 3400 | 20 | ||
| 592*592*600 | 6 | 3.78 | 3400 | 20 | ||
| 45%(F5) | 287*592*550 | 3 | 2.12 | 1700 | 20 | 400 |
| 592*592*550 | 5 | 3.66 | 3400 | 30 | ||
| 592*592*600 | 6 | 4.40 | 3400 | 30 | ||
| 65%(F6) | 287*592*550 | 5 | 2.12 | 1700 | 45 | 400 |
| 592*592*550 | 5 | 3.66 | 3400 | 80 | ||
| 592*592*600 | 6 | 4.40 | 3400 | 80 | ||
| 85%(F7) | 287*592*550 | 3 | 2.80 | 1700 | 100 | 400 |
| 592*592*550 | 5 | 4.78 | 3400 | 125 | ||
| 592*592*600 | 6 | 5.78 | 3400 | 125 | ||
| 95%(F8) | 287*592*550 | 3 | 2.80 | 1700 | 110 | 450 |
| 592*592*550 | 5 | 4.78 | 1700 | 110 | ||
| 592*592*600 | 6 | 5.78 | 3400 | 130 |
*CUSTOMIZATION IS AVAILABLE
TRAIRF® F5 F6 F7 F8 F9 Synthetic Bag Air Filter Media Rolls are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.
Media:
Fiberglass and Synthetic Fiber filter media are available for TRAIRF® Air Filter Bag. Synthetic fiber media consist of one layer of spun bound on each side for strength and stability, one coarse fiber melt-blown layer for filtration of larger particles and one fine melt-blown layer for filtration of smaller particles.This media is extremely durable and non-shedding. Using a variety of materials, the range of filtration efficiency can be spanned from 45-50% to 90-95% and > 95%.
