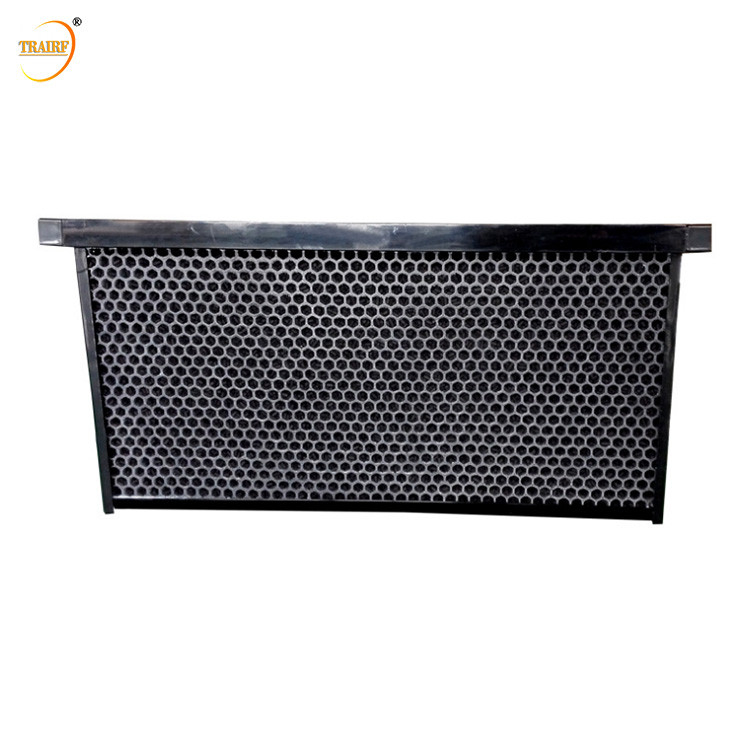

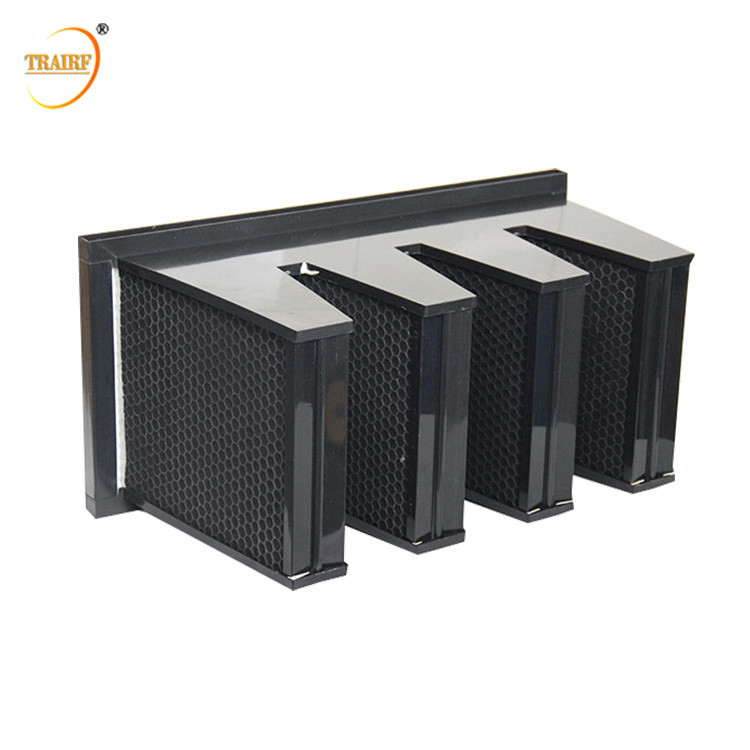

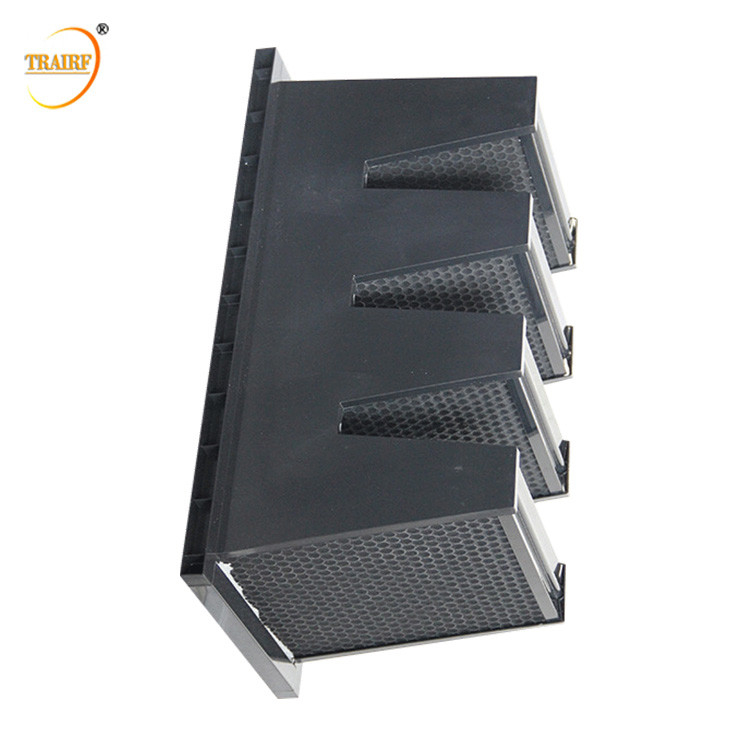

ABS Plastic Frame F7 V Bank Compact Carbon Filter With High Adsorption Capacity

ABS Plastic Frame F7 V Bank Compact Carbon Filter With High Adsorption Capacity

F7 v bank carbon filter

ABS Plastic frame v bank carbon filter

F7 V Bank Compact Filter

Place of Origin:

Sichuan, China

Brand Name:


Contact Us

Request A Quote
Product Details
Product Name:
V Bank Activated Carbon Filter Media Air Filter
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
F7, F7
V Bank Compact Filter
592*592*292mm * 4V
Frame Material:
ABS Plastic Frame
Initial Pressure(Pa):
Advise Final Pressure(Pa):
Working Temperature:
80 ℃
Shanghai, Shenzhan
Payment & Shipping Terms
$117.65/units 1-49 units
Packaging Details
1.FCL order will packaged by 5 layers carton case
2.LCL order will packaged by wooden case
Delivery Time
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Unit/Units per Month
Product Description

 V Bank Activated Carbon Filter Media Air Filter


TRAIRF® Plastic Frame V Bank Air Filter  is assembled by multiple mini-pleat packs formed into eight (4 V) to twelve (6 V) pieces of V type pleat.Media is made of activated carbon granule. TRAIRF®Plastic frame V Type Air Filter It can easily remove air contamination such as fine dust, smoke, vapor, soot, pollen, bacteria and etc.


Frame is made of ABS plastic, Easy of installation and maintenance.

Media: Using carbon particles and ultrafine synthetic fibres composite material, effectively removing harmful substances in the air Larger filter area, reliable performance with high adsorption capacity and removal efficiency.


Efficiency:(EN779:2002 filter class)F7

                      (ASHRAE 52.2:2007 filter class)MERV13.

Recommended final pressure drop:250Pa.


Hepa Filter Materials:

Filter Construction

Filter Type

Box Type

Single Header Type

Filter Media

Activated Carbon Granule

Filter Frame

ABS Plastic frame are Available



Support Grid



Sealing Strip



Dimensions Rated Air Flow Initial Pressure Drop
W*H*D(mm) (m³/h) (Pa)
287*287*292 800 120
287*490*292 1200
287*592*292 1600
490*287*292 1100
490*490*292 1900
490*592*292 2400
592*287*292 1100
592*490*292 1900
592*592*292 2400
592*287*292 1600
592*490*292 2500
592*592*292 3200
592**287*292 1800
592*49*292 3200
592*592*292 3900
305*305*292 850
305*610*292 1700
610*305*292 2100
610*610*292 4200

Customized Service is Available



1.Large Air Flow with low resistant

2.ABS Plastic

3.header constrution

4.292mm thickness size are available

5.Normal work temperature, humidity :80 ℃ , 80%

6.Filtration efficiencies: F7
