Overview:
Features: 1. Large effective filtration area, lower resistance, great dust holding capacity.
2. Easy to be changed etc.

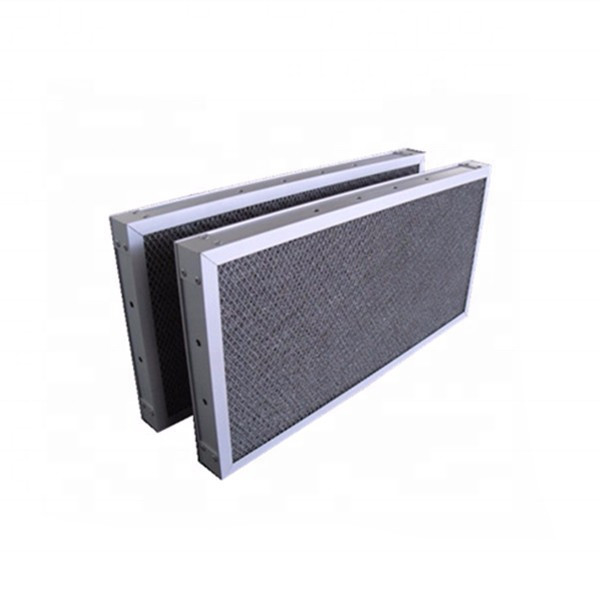

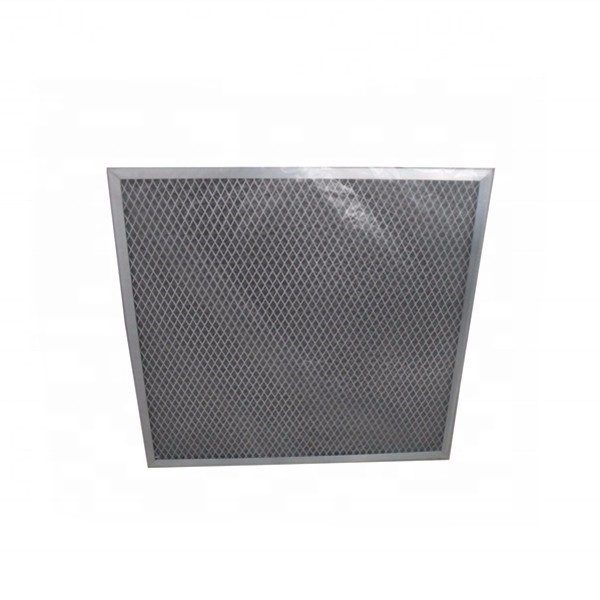

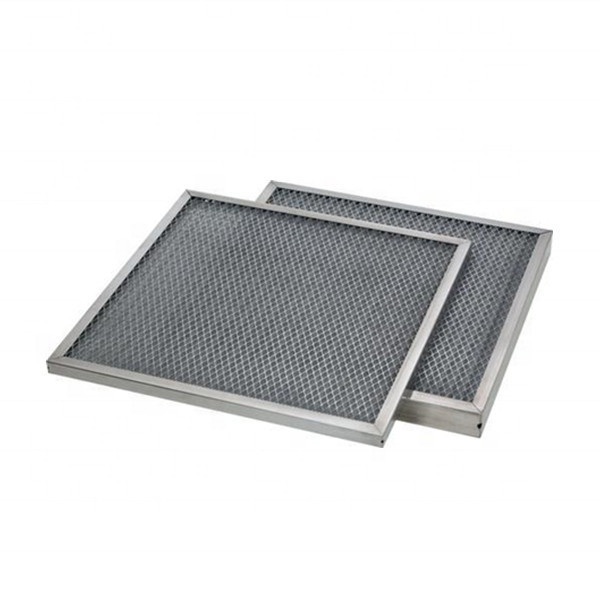

Model: TR-NRJAF
Filter Media: Aluminum
Frame Material: Aluminium, GI
Protecting Mesh: Aluminum mesh
Efficiency: G1, G2
Construction: Coalesce Filter
Filtration Grade: Primary Filter
Application: Prime metal air filter is mainly used on gas turbine.
SPECIFICATIONS:
|
Model |
Width |
Height |
Depth |
Filter area |
Airflow and pressure drop |
Efficiency |
||
|
(mm) |
(mm) |
(mm) |
(m2) |
(m3/h&pa) |
||||
|
TR-NRJAF |
580 |
580 |
25 |
0.3 |
2000/6 |
G1 |
||
Features:
1. High dust loading capacity
2. Low pressure drop
3. Large air flow
4. Efficiency: G2, G3, G4
5. Low cost
6.Easy installation
7.Long service life
8.Customization is available.
