99.99% 0.3um HEPA Terminal Box FFU Fan Filter Unit 1000m³/h

99.99% 0.3um HEPA Terminal Box FFU Fan Filter Unit 1000m³/h

HEPA Terminal Box 1000m3/h

99.99% 0.3um FFU Fan Filter Unit

FFU Fan Filter Unit 1000m3/h

Place of Origin:

Sichuan, China

Brand Name:

TRAIRF

Contact Us

Request A Quote
Product Details
Type:
Laminar Flow Module
Frame:
Aluminum / GI / SUS /MDF
Max Temperature:
70℃~150℃
Air Supply Direction:
Top / Side
HEPA Efficiency:
99.99% At 0.3um
Air Volume:
1000m³/h
Brand Name:
TRAIRF
Payment & Shipping Terms
Minimum Order Quantity
1 Units
Price
USD 94.00-98.00 Pieces
Delivery Time
2-30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Pieces per 2-30days
Product Description

Terminal Clean Room High Efficiency HEPA Box FFU Fan Filter Unit

Product Introduction:

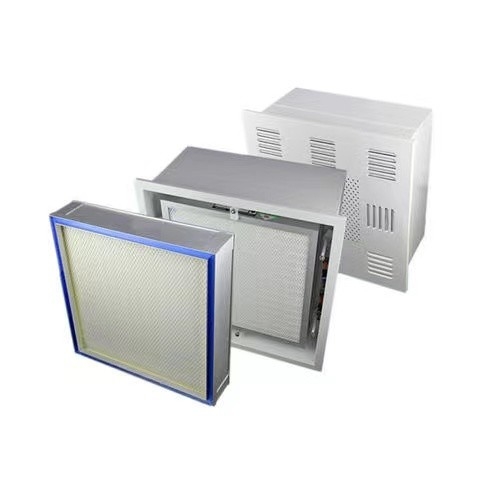

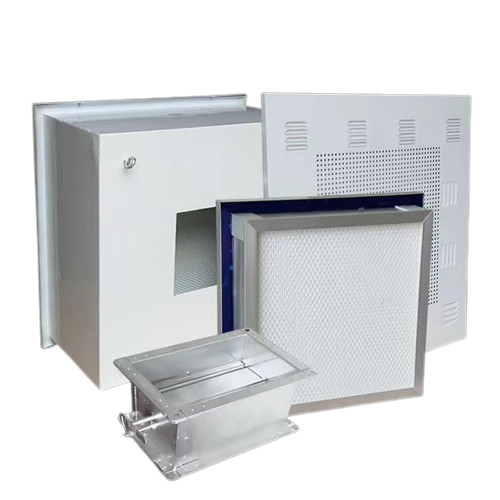

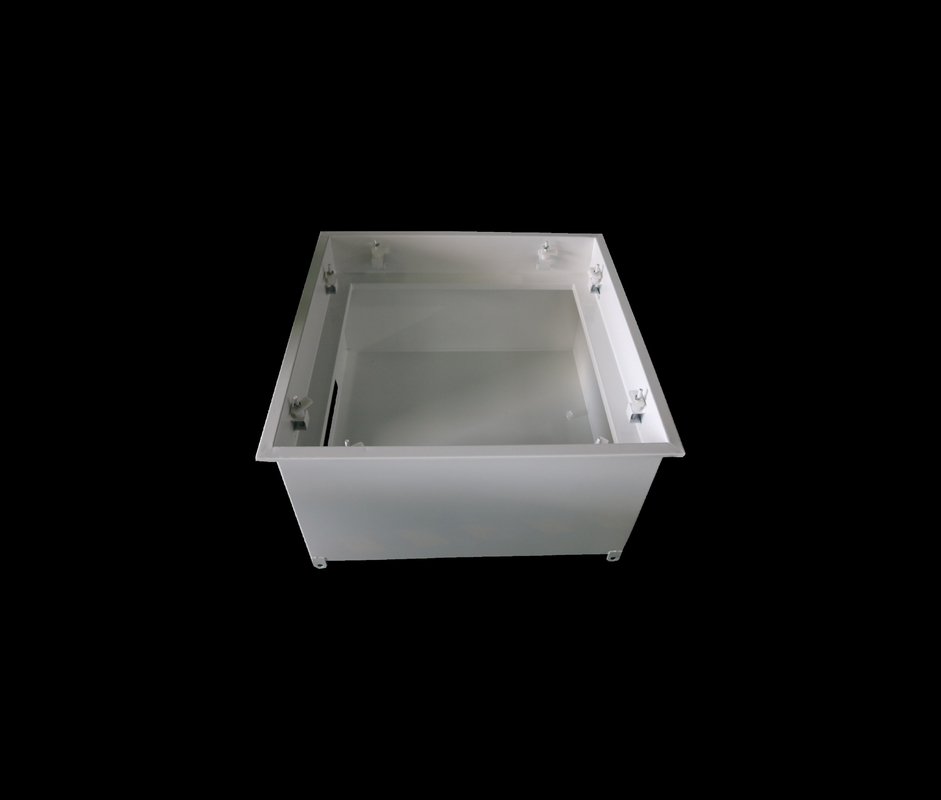

The HEPA Terminal Box is the ideal terminal filtration device for thousands, thousands and 100,000 level purification air conditioning system, which can be widely used in the purification air conditioning system of medicine, health, electronics, chemical and other industries. The high efficiency air supply outlet is used as the terminal filtration device for the renovation and construction of 1000-300000 grade clean rooms, which is the key equipment to meet the purification requirements. The high efficiency air supply outlet includes a static pressure box, a diffuser plate, a high efficiency filter, and the interface of the air duct can be top connection or side connection.



Performance characteristics:

1. The housing is made of high quality cold rolled steel plate.

2. Electrostatic spraying on the surface.

3. Elegant appearance, compact structure, easy to install and maintain.

4. The outlet surface diffuser panel is aluminum spray, cold rolled steel spray or stainless steel.



Provisions:

(1) Clean air supply outlet should be attached to side supply by louvers, slit type tuyere; When the side flow is obstructed or the unit area is large, and the wind speed of the personnel activity area is strict, the side flow should not be used;

(2) When there is a suspended ceiling, the diffuser or orifice plate should be used for air supply according to the height of the air conditioning area and the requirements for air flow. When the air supply per unit area is large, and the wind speed or regional temperature difference in the personnel activity area is small, the orifice plate should be used for air supply;

(3) Spout air supply, swirling air supply or lower air supply should be used in tall Spaces;

(4) The variable air volume terminal device should ensure that the air distribution meets the basic requirements of the air conditioning area environment when the air volume changes;

(5) The surface temperature of clean air supply outlet should be higher than the indoor dew point temperature; Low temperature tuyere should be used when the indoor dew point temperature is lower.
