F5-F9 Efficiency Synthetic Air Filter Media Rolls with Temperature Resistance

F5-F9 Efficiency Synthetic Air Filter Media Rolls with Temperature Resistance

F9 Synthetic Air Filter Media

Pleated Air Filter Media Rolls

Customized Synthetic Air Filter

Place of Origin:


Brand Name:



ISO9001, CE

Contact Us

Request A Quote
Product Details
Pressure Drop:
Surface Treatment:
White, Pink, Green, Yellow
Payment & Shipping Terms
Minimum Order Quantity
1 square meter
1.5 square meter
Packaging Details
plastic bag
Delivery Time
4-10 workdays
Payment Terms
T/T, L/C, D/P, Paypal
Supply Ability
50000 square meters
Product Description

Product Description:

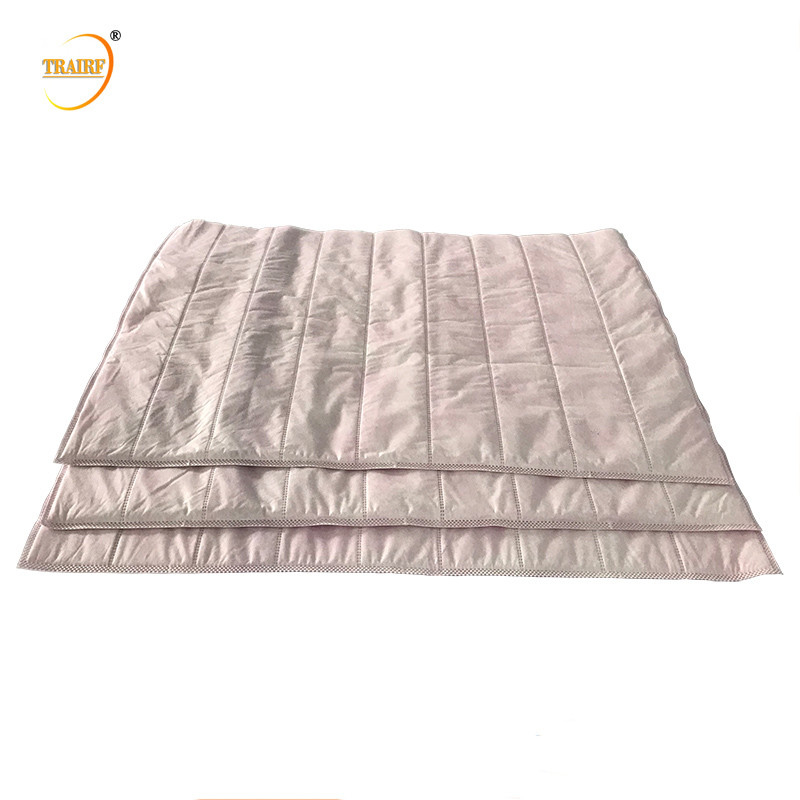

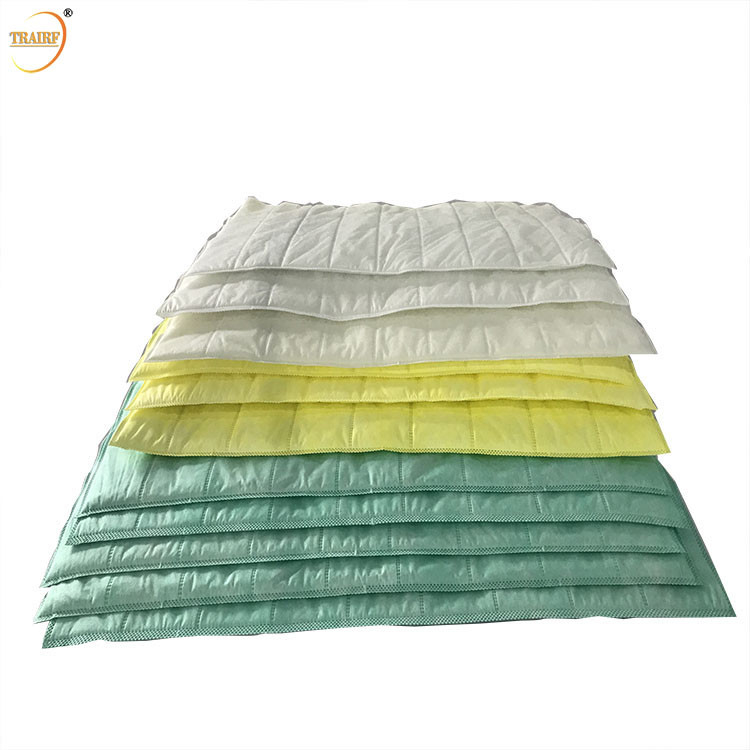

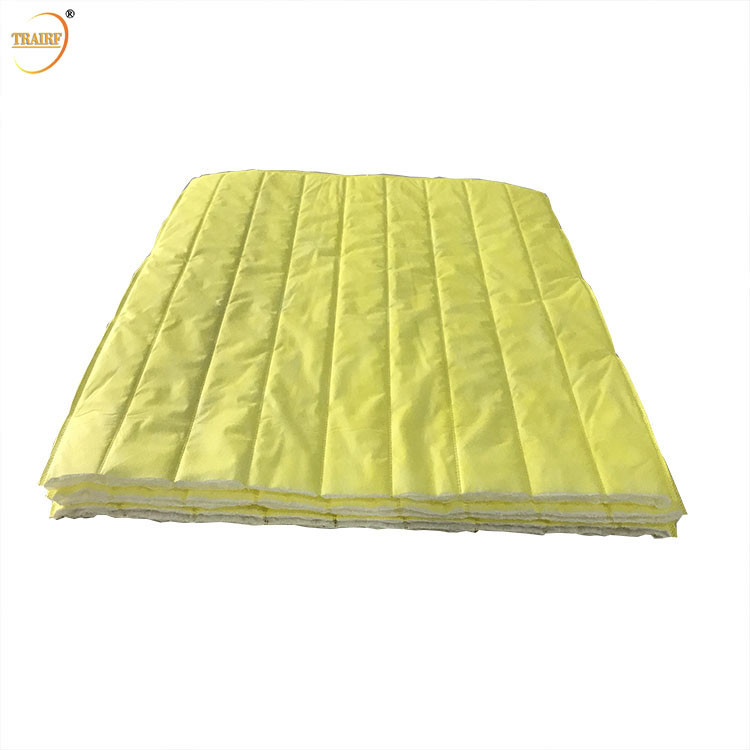

Our pocket air filter Media Material Specifiation:

1) Surface layer: 100% high strength non-woven fabric, color can be made according to customer's demand.

2) Bi-component (PP +PET) layer: bi-component structure, in that, the super-fine Melt-blown fiber give the non-woven higher filtration efficiency rate and the PET fiber convey excellent compression resilince property. The two fibers are blended in structure of"Z" shape, which makes the filter media featured with higher air permeability and dust holding capacity, more importantly, it can decrease the pressure drop raising up during its using. It is a newly developed filter media for the applications requesting higher dust holding and low resistance synchronously.

3) Lining Non-woven fabric layer: needle punched media or non-woven compound media applied, designed to filter the larger particles at lower initial pressure drop and enhance to reach the max dust volume and helpful pocket longer service life.

4) Middle separator: to make sure the air is pressed evenly throughout the bag.



This material offers low resistance and large air flow making it suitable for various applications. It boasts large dust holding capacity and long service life, making it cost economical. With the highest temperature and humidity it can reach of 80ºC and 80%RH respectively, it provides excellent performance.

Its G3-F9 Bag Filter efficiency is remarkable with a range of 45-95% @0.5 micron. To ensure optimum performance, a recommended final resistance of 300-400pa is best suited.



Our product can be used across a broad range of industrial painting operations, including furniture factories, automobile factories, electronics industries, pharmaceutical industries, food industries and more.

It is designed to absorb surplus particles which are created during the spray-painting process, as well as balancing the air pressure in the workspace. Not to mention, it is manufactured using sustainable materials, making it an example of an eco-friendly approach.


Support and Services:

Air Filter Media Technical Support and Service

We provide technical support and service for air filter media products. We have a team of experts who are available to help answer your questions and provide guidance on the best air filter media for your needs. Our team is knowledgeable in all aspects of air filter media, from selection and installation to maintenance and troubleshooting. We also offer a range of services to keep your air filter media in top condition, such as cleaning, replacement, and repair.

If you need any help or advice with air filter media, please contact us. Our team is available 24/7 to provide you with the best technical support and service for your needs.


Packing and Shipping:

Packaging and Shipping for Air Filter Media

Air Filter Media must be packaged in a manner that allows for safe transport and storage. Depending on the type of product, packaging materials may include cardboard boxes, shrink wrap, bubble wrap, packing peanuts, or other protective materials. All packages should be clearly labeled, and it is essential to include the necessary information for proper handling and storage.

When shipping Air Filter Media, it is important to use a reliable and secure carrier. All packages should be inspected before shipping to ensure the contents are intact and secure. It is also important to document any damage or defects that may be present before the package is shipped. Once the package has been shipped, the tracking number should be retained for tracking and monitoring of the shipment.



Q1: What is the brand name of the Air Filter Media?
A1: The brand name of the Air Filter Media is TRAIRF.

Q2: Where is the Air Filter Media manufactured?
A2: The Air Filter Media is manufactured in China.

Q3: What certifications does the Air Filter Media have?
A3: The Air Filter Media has ISO9001 and CE certifications.

Q4: What is the minimum order quantity for the Air Filter Media?
A4: The minimum order quantity for the Air Filter Media is 1 square meter.

Q5: What is the price of the Air Filter Media?
A5: The price of the Air Filter Media is 1.5 square meter.
