Pleated Panel Aluminum Mesh Dust Air Filter for Laminar Flow Hood

Pleated Panel Aluminum Mesh Dust Air Filter for Laminar Flow Hood

Place of Origin:

Sichuan, China

Brand Name:

trairf

Model Number:

315*815*46mm

Contact Us

Request A Quote
Product Details
Color:
Yellow
Condition:
New
Porosity:
5um
Frame:
Aluminum Alloy Frame
Shape:
Rectangle
Package:
Carton Box
Initial Resistance:
25-40Pa
Weight:
1.5KG
Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
USD 6.56-10..25 pieces
Packaging Details
carton box
Delivery Time
5-12 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pieces per 5-12 days
Product Description



Pleated Panel Aluminum Mesh Dust Air Filter for Laminar Flow Hood
Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the
medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the
place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter
can be directly sent to the user.

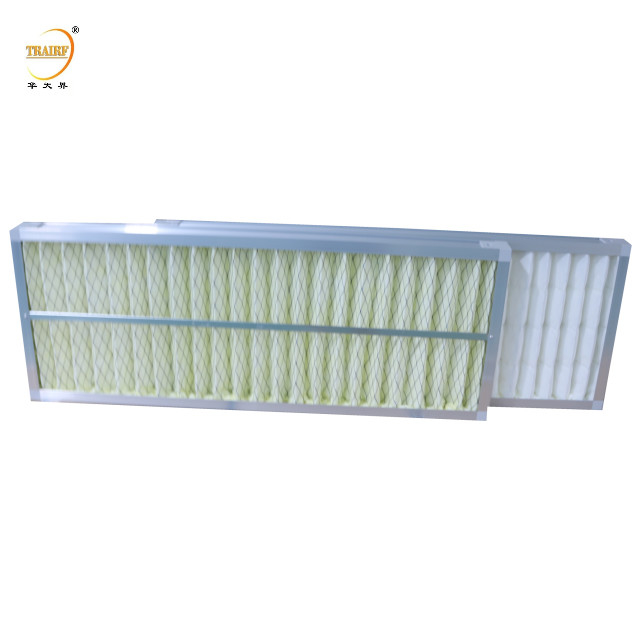

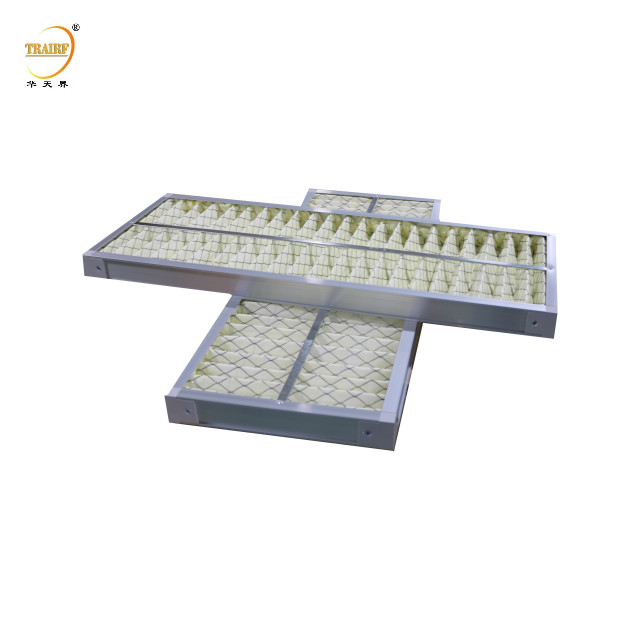

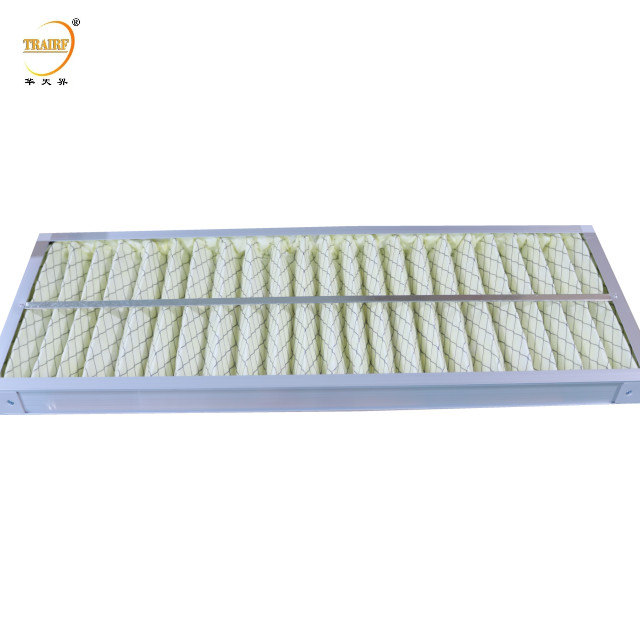

Pleated Panel Aluminum Mesh Dust Air Filter for Laminar Flow Hood 0Pleated Panel Aluminum Mesh Dust Air Filter for Laminar Flow Hood 1Pleated Panel Aluminum Mesh Dust Air Filter for Laminar Flow Hood 2

Features:
Color: yellow
External frame: Aluminum Alloy frame
Material: cotton
Construction: Panel filter
*Long service life
* Large dust holding capacity
*Can be reused many times
*Small resistance, high air volume, low wind speed

Product parameters
Model Outside dimensions(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency(class) Model of filter media
TR-CX-P1
295×295×10/20mm
12”×12” ×1/2”/1”
800m³/h 25-40Pa 40% weight

G2

G3

G4

Nylon nets

Early effect filter cotton

Corrugated aluminium nets
TR-CX-P2
495×295×10/20mm
20”×12” ×1/2”/1”
1300m³/h
TR-CX-P3
495×495×10/20mm
20”×20” ×1/2”/1”
2200m³/h
TR-CX-P4
595×295×10/20mm
24”×12” ×1/2”/1
1600m³/h
TR-CX-P5
595×495×10/20mm
24”×20” ×1/2”/1”
2700m³/h
TR-CX-P6
595×595×10/20mm
24”×24” ×1/2”/1”
3200m³/h



* Customizable size



Matters needing attention for air filters:
1. After cleaning the filter cloth, if the initial resistance value of the filter is lower than the initial resistance value of the filter installed for the first time, it should not be used and replaced in time;The filter should be replaced even if the pressure difference is greater than the initial value after two times of cleaning.

2. When taking the HEPA filter, the case should be carried upside down to make the HEPA filter land smoothly.
3. After cleaning the filter, check whether it is damaged or not, and replace it in time. Do not rub, machine wash or shake dry.
4. In the cleaning process, the primary and middle effect filter should not be confused, and should be numbered in order to
distinguish.
5. Each air purification system should have a set of spare filters to be replaced in time when cleaning.
