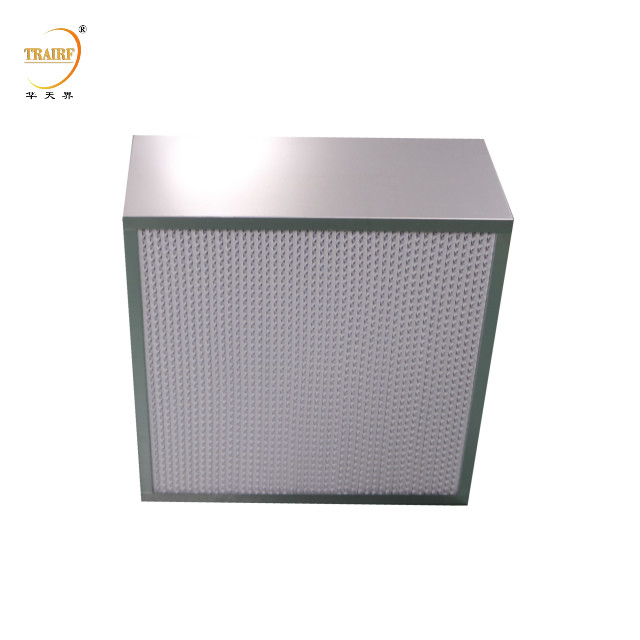

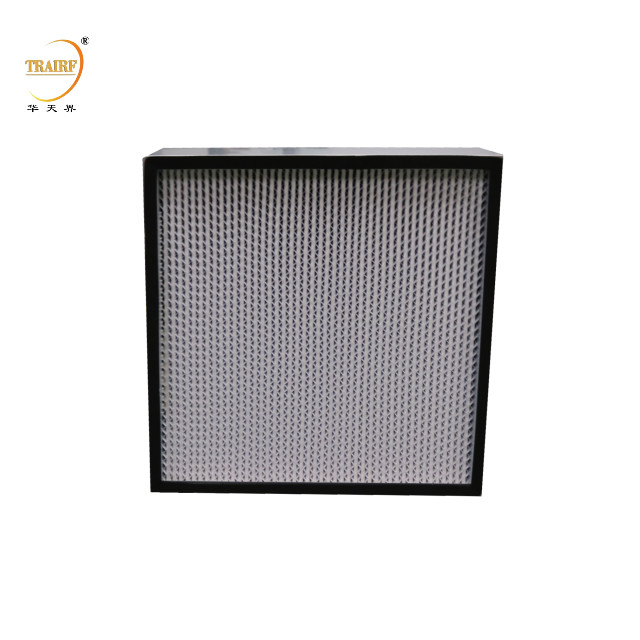

Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter

Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter

H14 Hepa Filter

H13 Hepa Filter

Deep Pleated Laminar Flow Hood

Place of Origin:

Sichaun,China

Brand Name:

trairf

Certification:

CE,SGS

Model Number:

484*484*220mm

Contact Us

Request A Quote
Product Details
Efficiency:
99.95%
Porosity:
0.3um
Dimensions(mm):
484*484*220mm
Material:
Fiberglass
Filter Grade:
H13 H14
Frame Material:
Galvanized Frame
Feature:
High Efficiency
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
USD 21.36-24.15 piece
Packaging Details
pp plastic and carton package
Delivery Time
5-12 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pieces per one month
Product Description
Factory Price Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter
Product Description
High efficiency filter with partition board is made of microfiber as filter material, plywood paper, aluminum platinum as partition board, and wood frame or aluminum frame glue and made of, with high filtration efficiency, low resistance, large air volume advantages, widely used with all kinds of bureau purification equipment and clean workshop. The standard fold number of high efficiency filter with separator is determined by the height of separator and the tightness of separator paper and filter paper when assembled.
Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter 0

Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter 1

Features

External frame: galvanized frame
Gasket: EVA
Filter media: Glass fiber filter
Separator: Hot melt adhesive
Maximum temperature: 80ºC
Maximum humidy: 80%
The advantage of Deep-Pleat filter is that:
* High efficiency
* Low resistance
* Light weight
* Convenient installation
1. Stable efficiency, low resistance, large dust capacity,
2. Good uniformity of wind speed, long service life,
3. Collect more than 0.3um dust particles, efficiency optional H10-H14
The use of High Efficiency Deep Pleat HEPA Air Filter:
Widely used in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, beverage and food, PCB printing and other industries dust-free purification workshop air supply end;
Used in hospital, electronics factory, semiconductor factory, clean room, cleaning table and other occasions requiring high cleanliness.
Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter 2
Product Parameters
Model
Outside dimensions(mm)
Rated air flow(m³/h)
Initial resistance(Pa)
Efficiency(class)
TR-YGB-1
320*320*220
500
≤220
≥99.95
TR-YGB-2 484*484*150 700 ≤220 ≥99.95
TR-YGB-3 484*484*220 1000 ≤220 ≥99.95
TR-YGB-4
726*484*220
1500
≤220
≥99.95
TR-YGB-5
968*484*220
2000
≤220
≥99.95
TR-YGB-6 630*630*220 1500 ≤220 ≥99.95
TR-YGB-7 945*630*220 2400 ≤220 ≥99.95
TR-YGB-8 1220*630*220 3000 ≤220 ≥99.95
TR-YGB-9 610*305*292 1200 ≤220 ≥99.95
TR-YGB-10 1220*610*292 4400 ≤220 ≥99.95
* Customizable size
