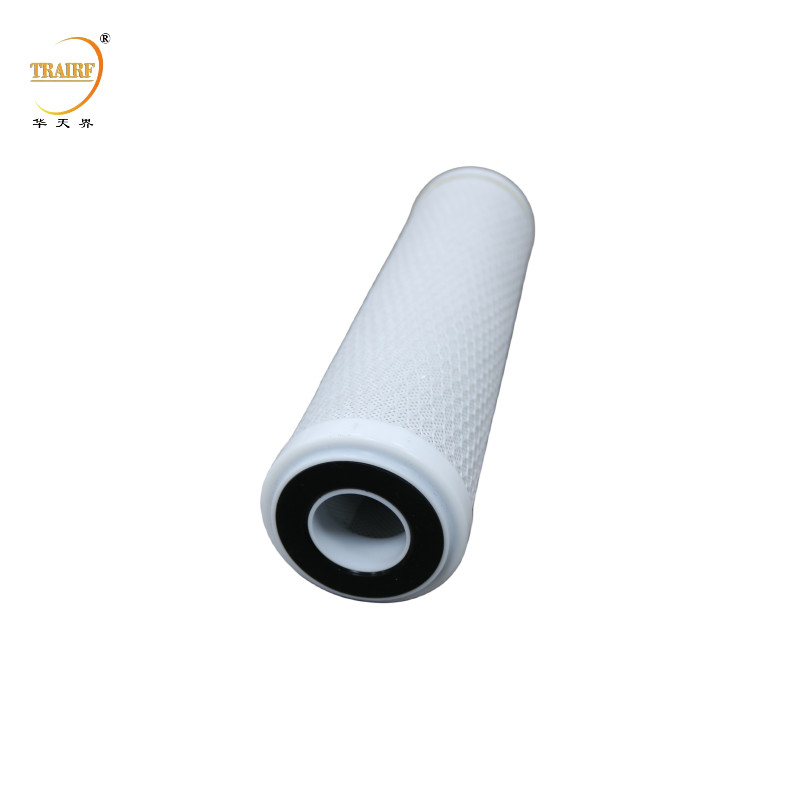

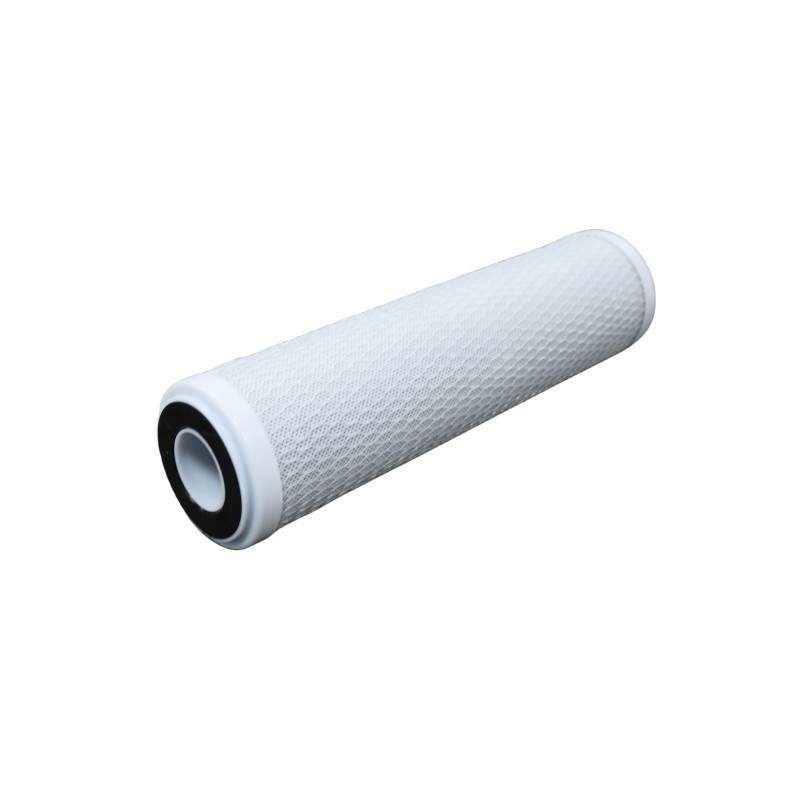

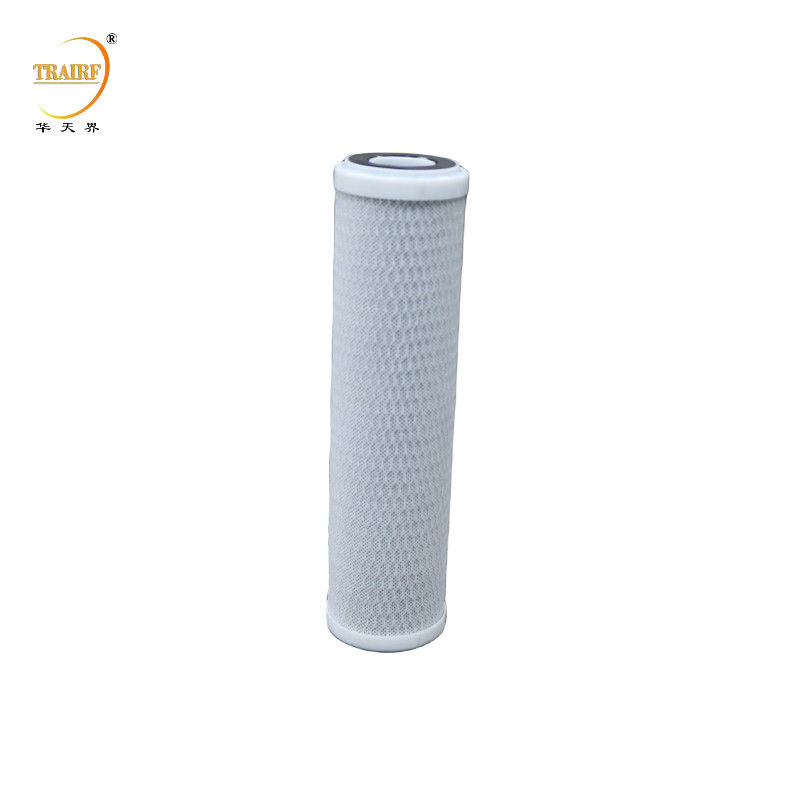

High-Performance Activated Carbon Filter Cartridge for Food Industry/RO Water Filter
Product description
The product adopts non-toxic, tasteless and high efficient value of plant activated carbon or medium activated carbon as the main body, supplemented by edible grade material binder, processed and shaped by a special technology, which integrates adsorption, filtration, interception and catalytic effect in one body, and it is the ideal new generation product to replace bulk activated carbon in the liquid and air purification industry at present.
Features
* Has a large specific surface area;
* Strong adsorption capacity and high mechanical strength;
* Uniform density and long service life;
* Dechlorination, deodorization, organic solvent decolorization effect is good
Product parameters
| Item | Technical index |
| Operating temperature | -20ºC-90ºC |
| Design working flow rate | 0.3T/H·10'' |
| Maximum Differential Pressure | 0.1Mpa positive |
| 0.06Mpa reverse | |
| Hot water sterilization | 121ºC/30min |
| Applicable PH value | 1-13 |
Manufacturing technique
Nominal filtration accuracy: 5um,10um;
Filter element outer diameter: 63mm,65mm;
Filter element inner diameter: 28mm,30mm
Activated carbon cartridge can be used with water, acid and alkali, chemical solutions, etc.
Non-organic solvents, iodine adsorption value≥800-1000mg/g;
Residual chlorine removal rate≥90%;
COD removal rate≥58.25%;
Cartridge length: inch 10'', 20'', 30'', 40''
Metric: 250mm,500mm,750mm,1000mm.
