Air Filter Fan Box With Centrifugal Fan For Cleaning Equipment

Air Filter Fan Box With Centrifugal Fan For Cleaning Equipment

Centrifugal Air Filter Fan Box

Aerospace Air Filter Fan Box

Place of Origin:


Brand Name:




Contact Us

Request A Quote
Product Details
Control Mode:
Frame Material:
Aluminum Alloy,Double-Layer Color Steel Clean Boar
Durable, Economy, Customized Size
Dust Removal
Dust Removal:
Pre-Filter, Bag Filter, HEPA Filter
Payment & Shipping Terms
Minimum Order Quantity
1 piece
USD 70.25-86.125 piece
Packaging Details
plastic, trays
Delivery Time
5-12 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 pieces per 1 month
Product Description

Factory Supply Air Filter Fan Box with Centrifugal Fan for Cleaning Equipment


1. Frame material: reinforced aluminum alloy profile, double-layer color steel clean board, outer color steel panel or galvanized board, etc;
2. Inner core material: foam board, extruded plastic board, glass-magnesium board, etc;
3. Seal: sponge seal;
4. Filtration equipment: primary, medium and high efficiency air filters;
5. Power source: advanced low-noise centrifugal fan, which can be equipped with external rotor direct drive (DFX-A series) or belt E drive fan (DFX-E series).

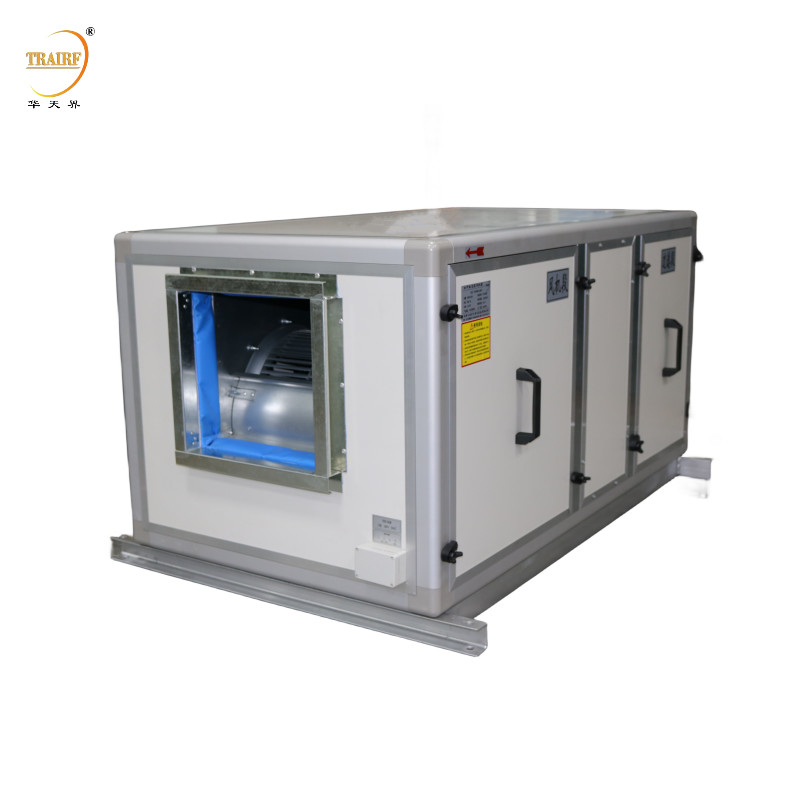

Air Filter Fan Box With Centrifugal Fan For Cleaning Equipment 0


1. Many varieties, full specifications, air volume, full-pressure range of options;
2. Equipped with multi-directional air inlet and outlet, the unit can be installed in ceiling type or floor type, which is convenient for engineering design.
3. Adopting advanced low-noise centrifugal fan as the power source, according to different needs, single or multiple parallel use.
4. Inside the air box machine, there can be increased primary, middle and high efficiency air filtration sections, mufflers, dampers and other accessories, equipped with an electric control box, can be controlled remotely.
5. The sponge sealing tape is added between the side panel of the box and the frame, which is convenient for the removal of the door panel and also ensures the good airtightness of the box itself.

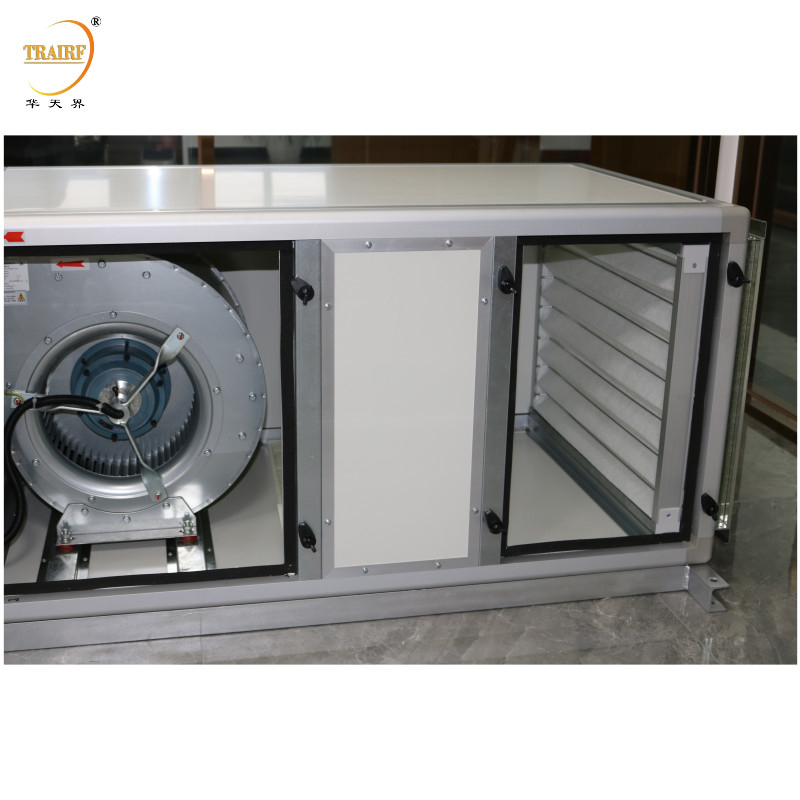

Air Filter Fan Box With Centrifugal Fan For Cleaning Equipment 1

Product parameters


Model Air flow rate(m³/h) Full pressure Fan model Unit power Supply Voltage
TR-FJX-01 500 205 TFD7-5F 0.09-4 220
TR-FJX-02 1000 297 YFD8-8 0.275-4 220
TR-FJX-03 2000 383 YFD9-7 0.35-4 220
TR-FJX-04 3000 190 YFD10-10 0.46-6 220
TR-FJX-05 5000 443 YFW355 1.1-6 380
TR-FJX-06 10000 576 YFW400 3.0-6 380

The full pressure in the table is the full pressure of the fan, if the air filter is installed, the resistance of the primary filter is 40-70Pa, the resistance of the intermediate filter is 80-120Pa, the resistance of the activated carbon filter is 45-70Pa, and the resistance of the sub-high efficiency filter is 120-240Pa.



1. Aerospace, electronics, semiconductor, wafer, biopharmaceutical, hospital, food processing and other high cleanliness occasions.

2. Terminal of air conditioning and ventilation system (terminal filtration and hot air type high temperature oven and oven).

3. Hospital operating room, hospital, biopharmaceutical, laboratory, circuit board, microelectronics, optics, LED photoelectric, QS food processing or purification equipment end temperature requirements of clean working environment.

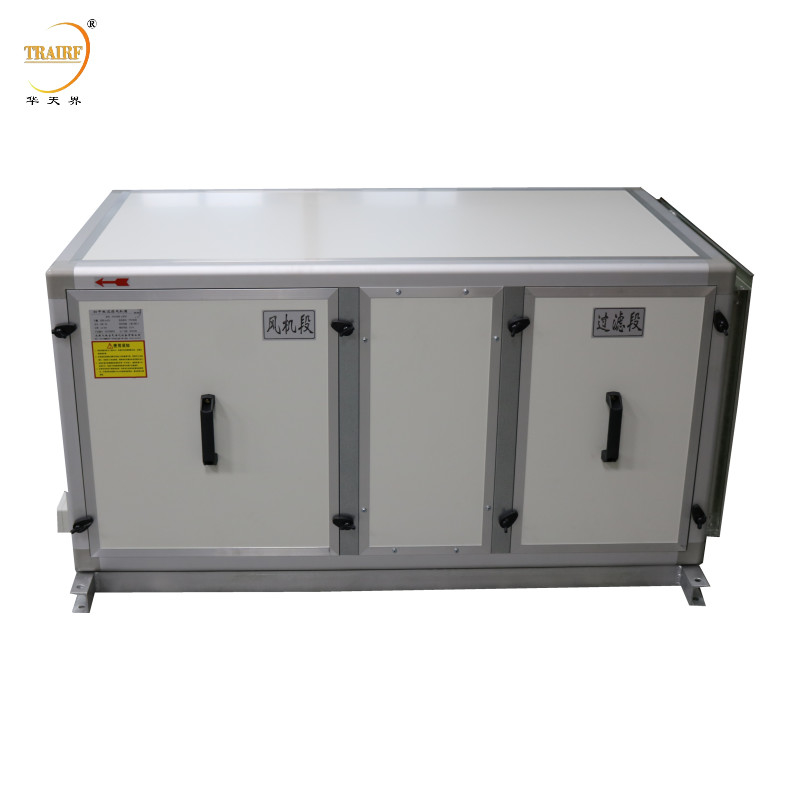

Air Filter Fan Box With Centrifugal Fan For Cleaning Equipment 2Air Filter Fan Box With Centrifugal Fan For Cleaning Equipment 3



Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.

Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.
Secondly: Competitive Price provided as raw materials are provided by our own factory.

Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.

Q: What's your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )

Q: What's your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
