Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Model Number:
TR-YGB-1
Contact Us

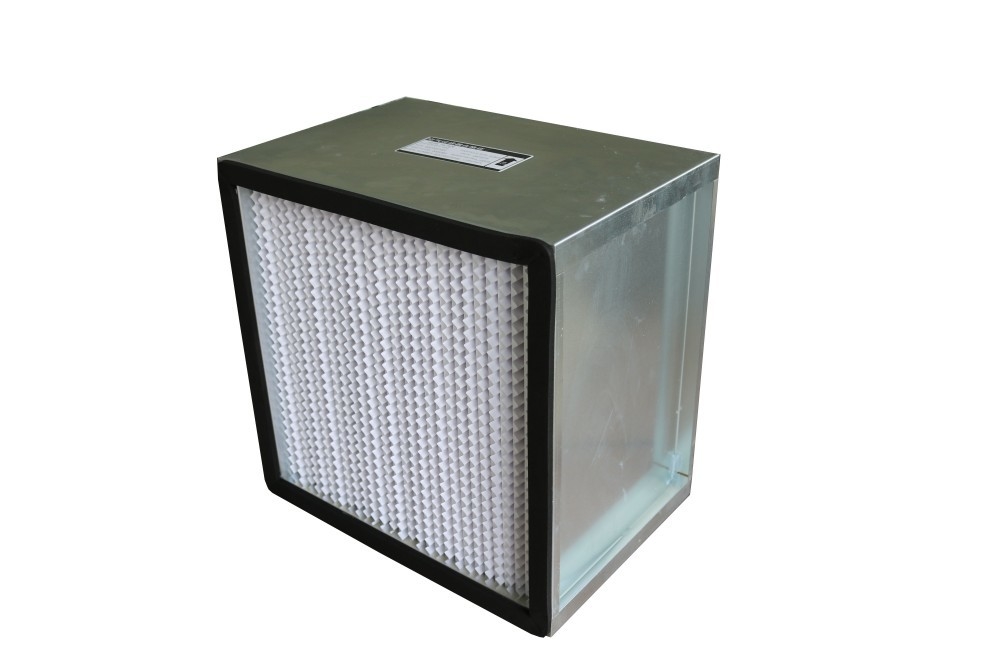

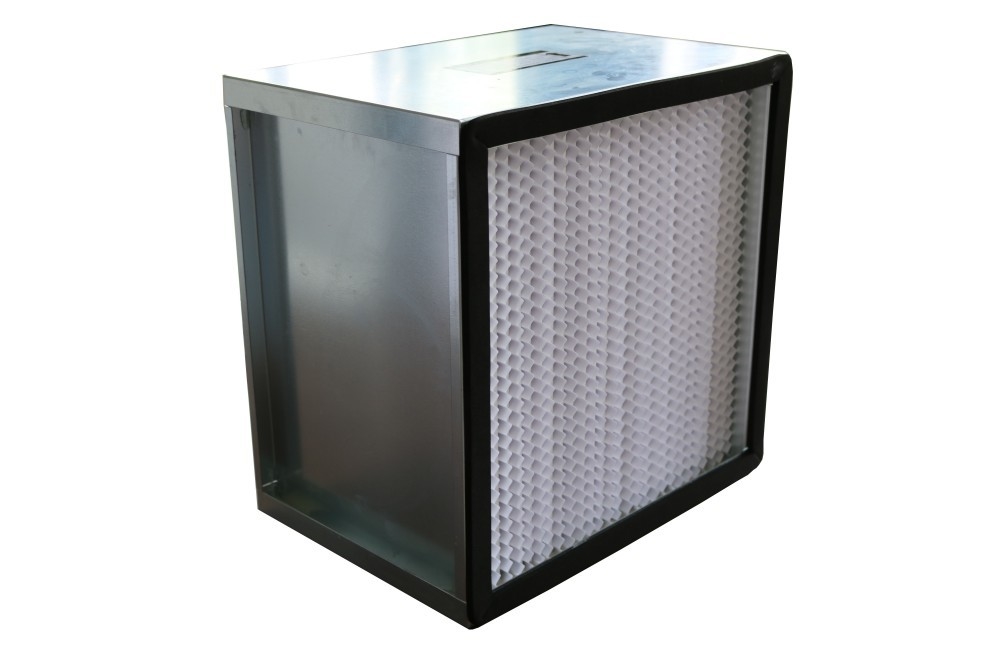

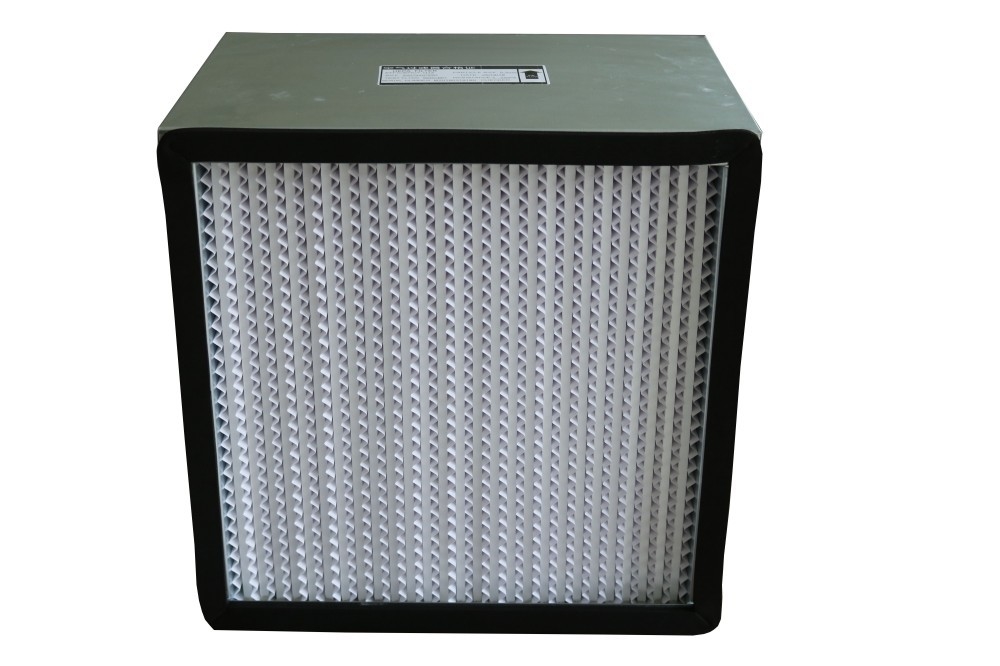

High efficiency filter with partition board is made of microfiber as filter material, plywood paper, aluminum platinum as partition board, and wood frame or aluminum frame glue and made of, with high filtration efficiency, low resistance, large air volume advantages, widely used with all kinds of bureau purification equipment and clean workshop. The standard fold number of high efficiency filter with separator is determined by the height of separator and the tightness of separator paper and filter paper when assembled.
Overview
Deep Pleat HEPA filter is the terminal device in purified air supply system. It aims to provide the air with desirable static pressure before passing through HEPA filter, to enable uniform air-out.
Hepa filter requiring filed leak detection is provided with DOP dust and leakage detection mouth, and differential pressure detection mouth and lower damper based on customer’s requirements.
External frame: galvanized frame
Gasket: EVA
Filter media: Glass fiber filter
Separator: Hot melt adhesive
Maximum temperature: 80℃
Maximum humidy: 80%
Advantages
1.Low resistance, Light weight, Convenient installation
2. Stable efficiency, low resistance, large dust capacity,
3.Good uniformity of wind speed, long service life,
4.Collect more than 0.3um dust particles, efficiency optional H10-H14
Applications
Widely used in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, beverage and food, PCB printing and other industries dust-free purification workshop air supply end;
Used in hospital, electronics factory, semiconductor factory, clean room, cleaning table and other occasions requiring high cleanliness.
Widely apply in laminar flow hood, Biomedical, Vehicles, Airlines, Heating, air conditioning, respiratory protection, clean rooms, industrial processes, and building ventilation systems, Electronic Air Filters for High-End Residential & Commercial Facilities, labatory, etc.
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) |
| TR-YGB-1 | 305*305*150 | 250 | ≤220 | ≥99.99 |
| TR-YGB-2 | 320*320*220 | 400 | ≤220 | ≥99.99 |
| TR-YGB-3 | 484*484*150 | 600 | ≤220 | ≥99.99 |
| TR-YGB-4 | 484*484*220 | 1000 | ≤220 | ≥99.99 |
| TR-YGB-5 | 726*484*220 | 1500 | ≤220 | ≥99.99 |
| TR-YGB-6 | 968*484*220 | 2000 | ≤220 | ≥99.99 |
| TR-YGB-7 | 610*610*150 | 1000 | ≤220 | ≥99.99 |
| TR-YGB-8 | 915*610*150 | 1500 | ≤220 | ≥99.99 |
| TR-YGB-9 | 1220*610*150 | 2000 | ≤220 | ≥99.99 |
| TR-YGB-10 | 630*630*220 | 1600 | ≤220 | ≥99.99 |
| TR-YGB-11 | 945*630*220 | 2400 | ≤220 | ≥99.99 |
| TR-YGB-12 | 1220*630*220 | 3200 | ≤220 | ≥99.99 |
| TR-YGB-13 | 610*610*292 | 2200 | ≤220 | ≥99.99 |
| TR-YGB-14 | 915*610*292 | 3300 | ≤220 | ≥99.99 |
| TR-YGB-15 | 1220*610*292 | 4400 | ≤220 | ≥99.99 |
* Customizable Size
