5um G3 G4 Glass Fiber Paint Booth Air Filter 7200m/S

5um G3 G4 Glass Fiber Paint Booth Air Filter 7200m/S

Paint Booth Air Filter 7200m/s

Glass Fiber Air Filter 7200m/s

5um Glass Fiber Air Filter

Place of Origin:

Sichuan, China

Brand Name:


Contact Us

Request A Quote
Product Details
Roll Or Pads
Customized Size
Normal Size:
1*20M*50/60 Mm/70mm
Rate Airflow:
Initial Pressure:
25 Pa
Filtration Grade:
G3 G4
Glass Fiber
Payment & Shipping Terms
Minimum Order Quantity
100 meters
USD 1.59 Squares Meters
Packaging Details
a roll Packaged with PE Bag
Delivery Time
Payment Terms
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability
5000 meters 2-30days
Product Description

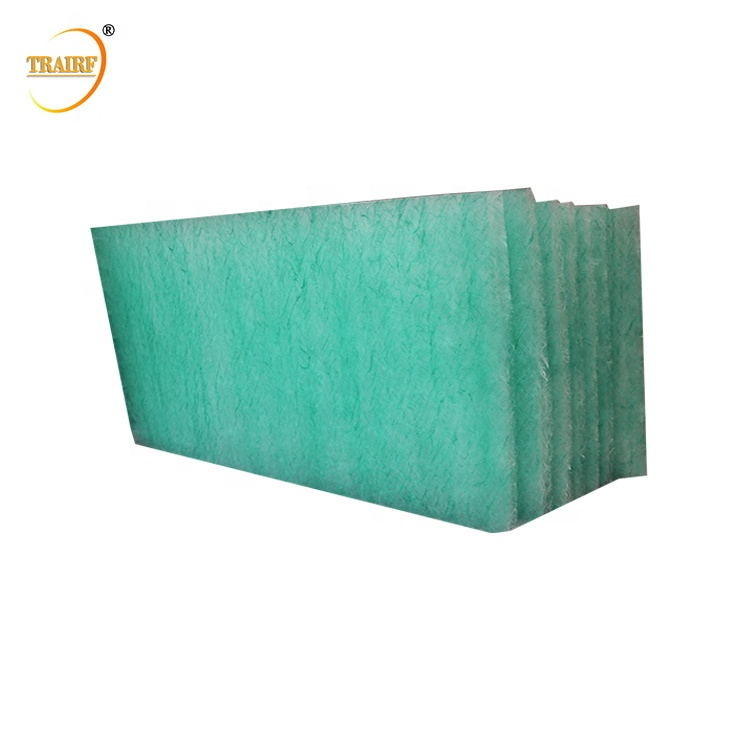

Hot Selling Floor Filter Paint Booth Air Filter

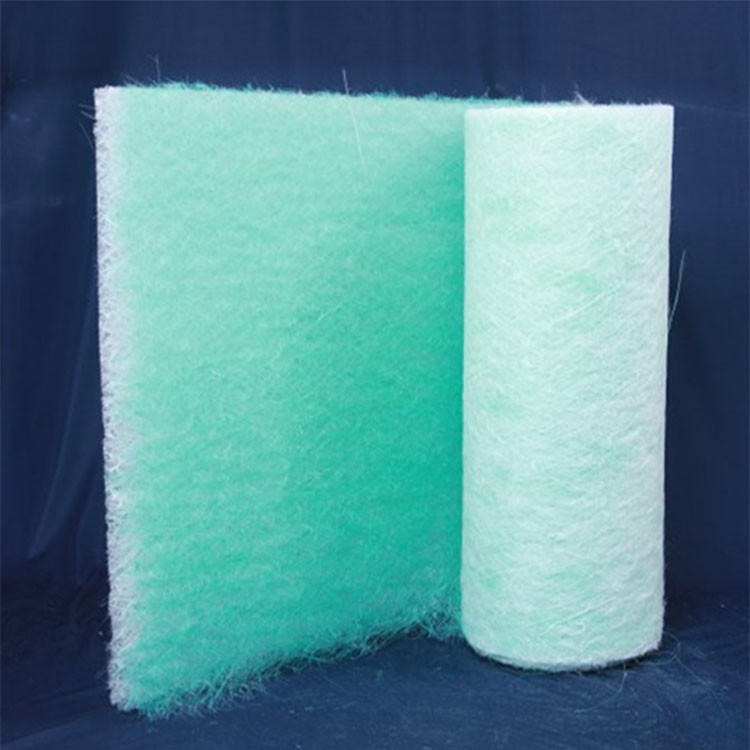

Fiberglass paint stop filter media rolls, also called the Spary Booth Filter,is a kind of industrial air filters for painting rooms and other workplaces required high air quality .

It's especially suitable for automotive/furniture paint spray booth, coating production line, etc, widely applied to filtration of high quality surface painting with the feature of high arrestance, high efficiency in absorbing extra particle during the course of painting, making air pressure more equally.



1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.

2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;

3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;

4. The low compression performance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;

5. Non-flammability, temperature resistance at 170°C;

6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;

7. Outer frame may choose the paper frame, the galvanization iron frame, or aluminum alloy frame.



1. Fiberglass filter media

2. Large air flow

3. Low resistance

4. High dust holding capacity

5. Long service life



It applys to all kinds of industrial paint filtration, such as furniture factory, automobile factory, electronics industry, pharmaceutical industry, food industry and other industries. It can efficiently absorb excess free particles generated when spraying paint and balance the pressure of working space. It is a typical environmental-friendly material.

Type Dimensionns Rated Air Velocity(m/s) Initial Pressure Rated Air Flow(m³/h)
Length(M) Width(M) Thickness(mm)
Roll 20 0.8/1 50/60 2 10 7200

* Customizable Size
