Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

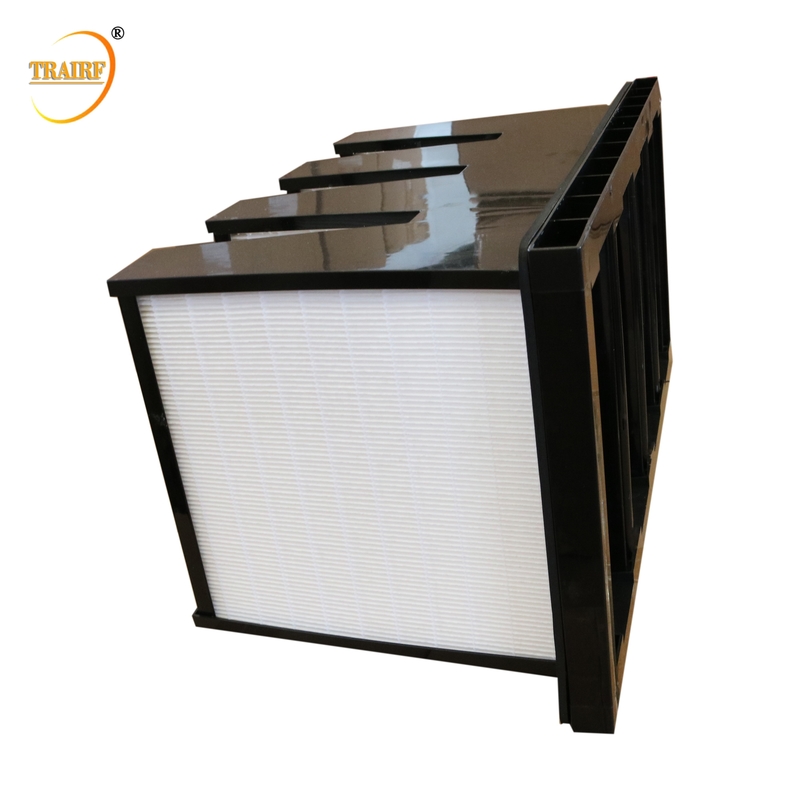

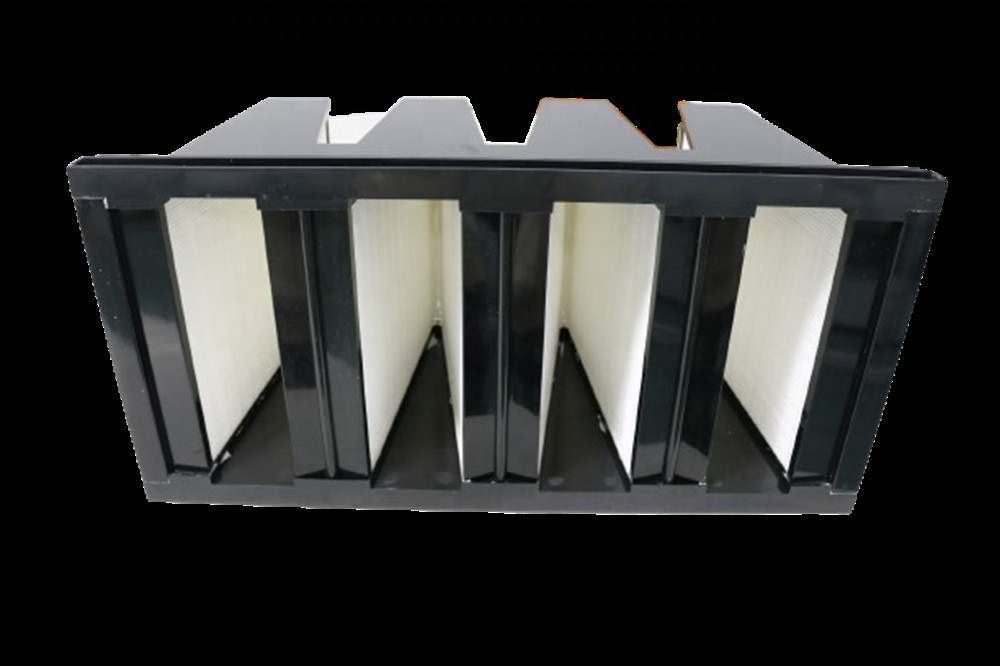

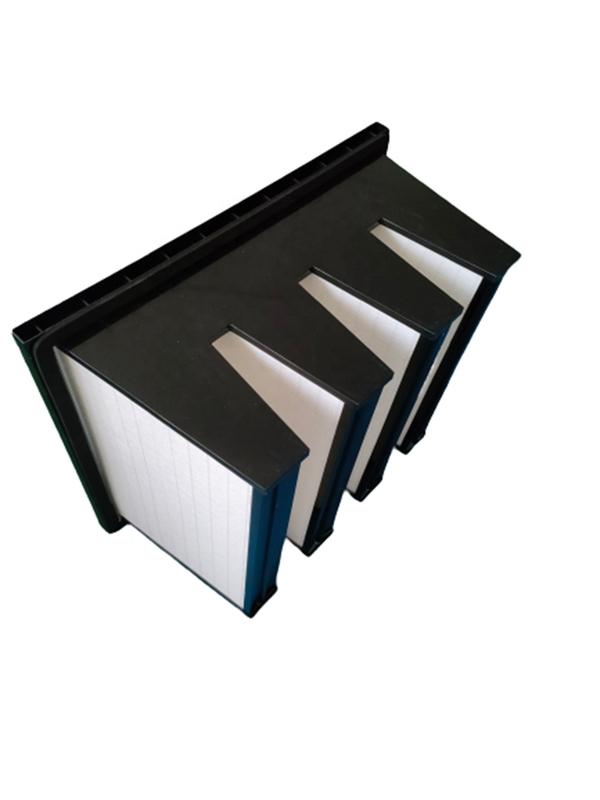

W type high efficiency air filter is made of polyester, which is made by combining multiple pieces of filter element without partition and strictly sealed, and the efficiency covers F7 to H13. It has the characteristics of large filter area, low resistance, long life (up to 2-3 times of traditional filter with partition) and wide application range. The filter principle of the dust removal equipment is to use adsorption method, in order to obtain clean air to meet the standards, at the same time for different particle sizes of the air dust particles capture, adsorption, improve air quality, chemical filter in addition to dust adsorption can also absorb odor.
Product Materials, features, specifications
Size: customizable
External frame: ABS Plastic
Filter media: Polyester fiber
Gasket: EVA
Separator: hot melt adhesive
Maximum service temperature: 80℃
Maximum humidity:80%
| item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | Not Available |
| Condition | New |
| Construction | W type |
| Porosity | 0.3micron |
| Place of Origin | China |
| Province | Sichuan |
| Brand Name | TRAIRF |
| Dimension(L*W*H) | 592mm*592mm*292mm |
| Weight | 15KG |
| Warranty | Unavailable |
| Frame | Plastic box |
| Sealant | Polyamine glue |
| Separator | Hot melt glue |
| Filtration Grade | High Efficiency Air Hepa Filter |
| Type | 4V |
| Use the highest humidity | 80% |
| Use the highest temperature | 80℃ |
Product Parameters
High efficiency hepa air filter w shape parameters have model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization
| Model | Outside Dimensions(mm) | Rated Air Flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Filter Materials |
| TR-WYG-1 | 287×287×292 | 800 | ≤125 | 95(F8)/99(F9) | Polyester Glass fiber |
| TR-WYG-2 | 490×287×292 | 1200 | ≤125 | 95(F8)/99(F9) | |
| TR-WYG-3 | 490×490×292 | 2000 | ≤125 | 95(F8)/99(F9) | |
| TR-WYG-4 | 592×490×292 | 2000 | ≤125 | 95(F8)/99(F9) | |
| TR-WYG-5 | 592×490×292 | 2700 | ≤125 | 95(F8)/99(F9) | |
| TR-WYG-6 | 592×287×292 | 1600 | ≤125 | 95(F8)/99(F9) | |
| TR-WYG-7 | 592×592×292 | 2400 | ≤125 | 95(F8)/99(F9) | |
| TR-WYG-8 | 592×592×292 | 3200 | ≤125 | 95(F8)/99(F9) |
* Customizable Size
Packaging Details: a Per PCS Packaged with PE Bag, then in carton case
According to Customers' requirement
Shipping: Sample order:1-2days
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price 2. 7-10 days Short Delivery Time base on Strong Producing Strength 3.With more than 10 Year OEM Service Experience in Air Filter Field 4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
Send your inquiry directly to us
