Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

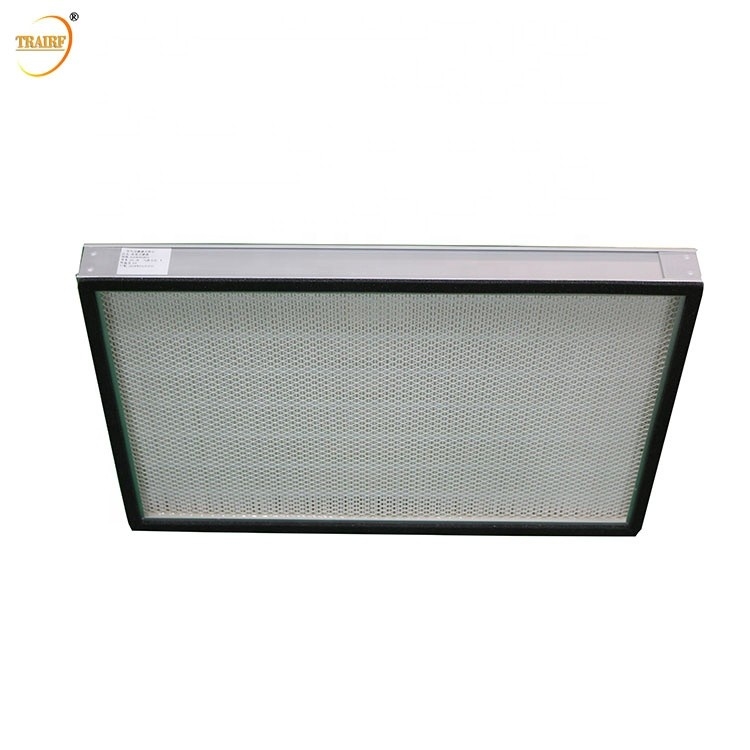

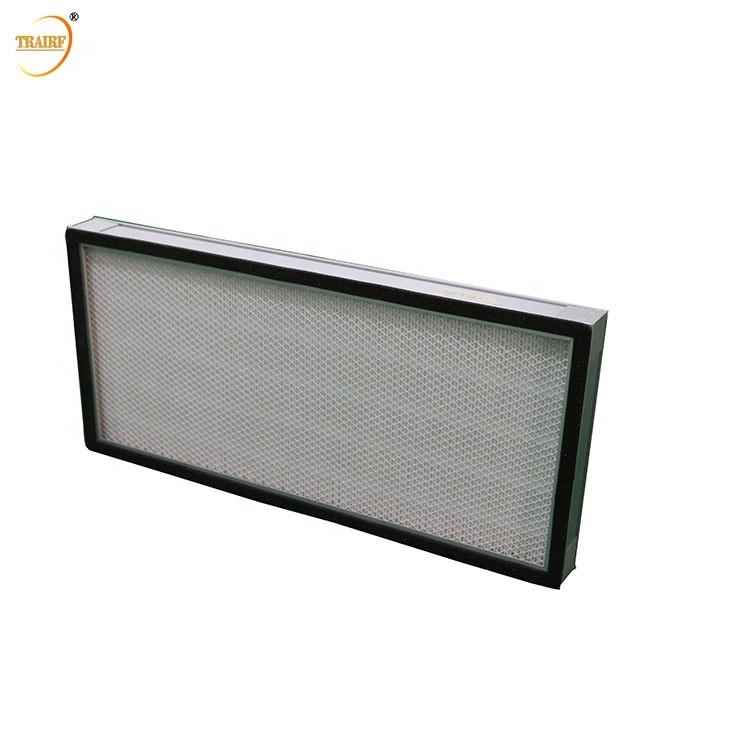

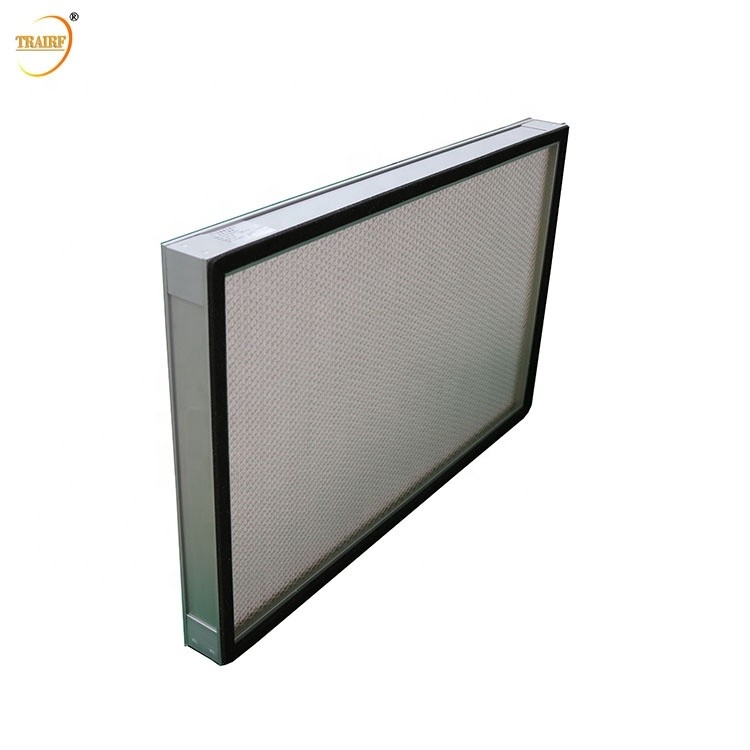

H13 H14 Hepa Laminar Flow Air Filter
Specification
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Condition |
New |
|
Efficiency |
99.99% |
|
Construction |
Box Filter |
|
Porosity |
0.3um |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
Customizable Size |
|
Weight |
4KG |
|
Warranty |
Unavailable |
|
Frame |
Galvanized Frame/Aluminium alloy |
|
Type |
Deep Pleat Air Filter |
|
Material |
Fiber Glass with aluminum foil separation |
|
Color |
Silver |
|
Initial Pressure |
220Pa |
|
Work Temperature |
80℃ |
Product Parameter
|
Model |
Outside Dimensions(mm) |
Rated air flow(m³/h) |
Initial resistance(Pa) |
Efficiency(class) |
|
TR-WGB-1 |
610*640*50 |
700 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-2 |
915*610*50 |
1000 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-3 |
1220*610*50 |
1400 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-4 |
610*610*69 |
1000 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-5 |
915*610*69 |
1500 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-6 |
1200*610*69 |
2000 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-7 |
610*610*80 |
1200 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-8 |
610*610*90 |
1400 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-9 |
610*610*100 |
1600 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-10 |
1170*570*69 |
1800 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-11 |
1170*570*80 |
2200 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-12 |
1200*610*80 |
2500 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-13 |
1200*610*90 |
2800 |
≤220or≤140(HV) |
≥99.99 |
|
TR-WGB-14 |
1200*610*100 |
3200 |
≤220or≤140(HV) |
≥99.99 |
* Customizable Size
Certifications
High quality create brand, all our products are passed ISO9001:2008 ,CE certification to make sure provide best products to our clients; Excellent service win good reputation and long term cooperation relationship between our business partners. Using Tianrui Air Filter to Save More Green for Our Home!
