Class 100 Class 10000 Metal Frame Clean Room HEPA Air Filter 0.3u

Class 100 Class 10000 Metal Frame Clean Room HEPA Air Filter 0.3u

Class 100 clean room hepa air filter

Class 10000 clean room hepa air filter

clean room hepa air filter 0.3u

Place of Origin:

Sichuan, China

Brand Name:

TRAIRF

Contact Us

Request A Quote
Product Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Condition:
New
Efficiency:
99.99%
Construction:
Panel Filter
Porosity:
0.3u
Filter Media:
HEPA Filter With Glass Fiber Media
Separator:
Hot-melt Adhesive
Airflow:
900~2000 CMB/ H
Work Humidity:
80%
Work Temperature:
80 Degree
Payment & Shipping Terms
Price
$30.00 - $65.00/sets
Packaging Details
A .LCL Shipment Order :Three layers package: first plastic bag per piece, second carton case per piece, third wooden case out side
B.FCL Shipment Order :Two layers package: first plastic bag per piece, second carton case per piece,
Delivery Time
2-30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Set/Sets per Month Class 100 Class 10000 Clean-Room HEPA Filter
Product Description

Class 100  Class 10000 Clean-Room HEPA Air Filter



Description:

TRAIRF® high efficiency particulate Air Filter is made of ultra-fine fiberglass, it designed into continuity fold paper for providing larger filtration area. Mini-pleats media design also can extending filter life and decreasing filter pressure drop. Air can through media smoothly with low resistant. What’s more, folded media separated through hot melt adhesive to make sure there are no chemical pollution air release to our clean space. TRAIRF® high efficiency particulate HEPA Filter testing according to EN-1822 standard, filtration efficiency guaranteed from 99.97 % to 99.999 % for particles size at 0.3 micro meter.



Efficiency:

The series provide guarantee efficiency from 95.99%, 97.99%, 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter.

Testing Method
Particle(um) 0.3um 0.1-0.2um
Efficiency(%) 95% 99.999%above
99.97%
99.99%
100.00%
According to EN-1822 standard in MPPS Test



Material:

Metal Frame (Galvanized Steel and Aluminum in box type or header type) are available. TRAIRF® high efficiency particulate Air Filter provide the maximum effective media area. With the advantages of long life span, light weight, easy handling of rejection and environment friendly.

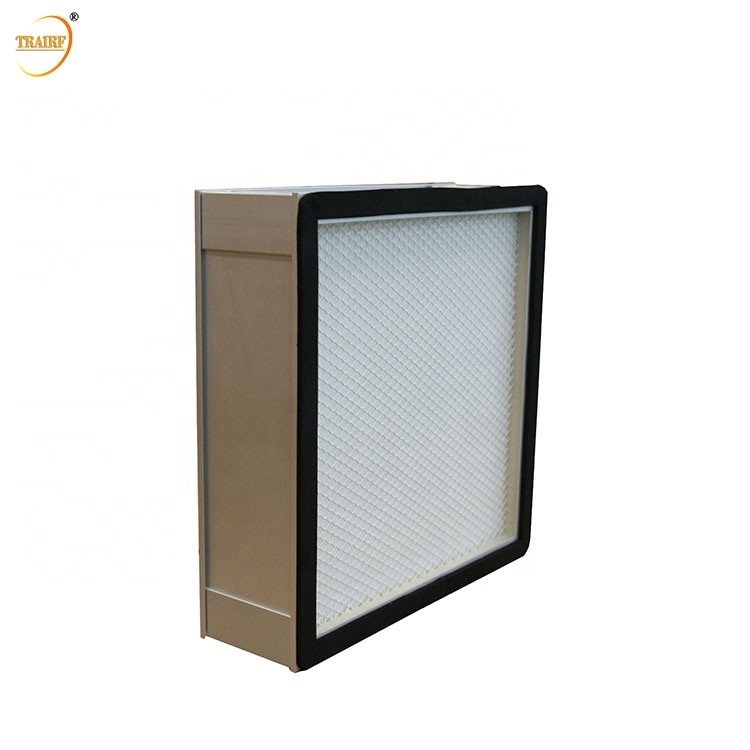

Class 100 Class 10000 Metal Frame Clean Room HEPA Air Filter 0.3u 0



Specifications

  • Light Weight Low cost Easy to installation
  • Fully disposable
  • Mechanical clamping structures
  • Thickness size available in 150 mm ,180 mm
  • Efficiencies of 95% up to 99.9995% @ 0.3 microns
  • Testing according to EN-1822 standard
  • Flammability: UL Classified Relative
  • Humidity: 100%
  • Standard Size

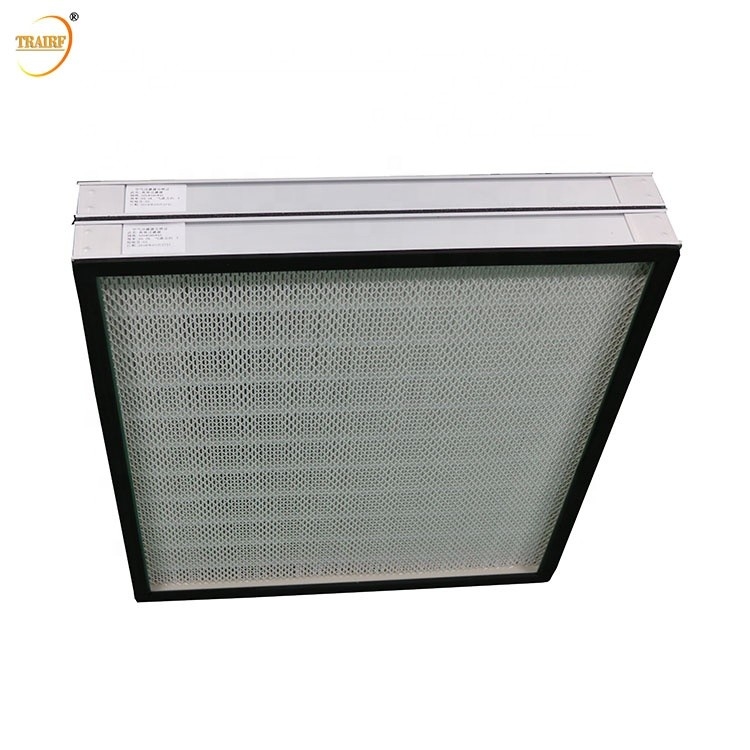

  • Class 100 Class 10000 Metal Frame Clean Room HEPA Air Filter 0.3u 1
