Description:

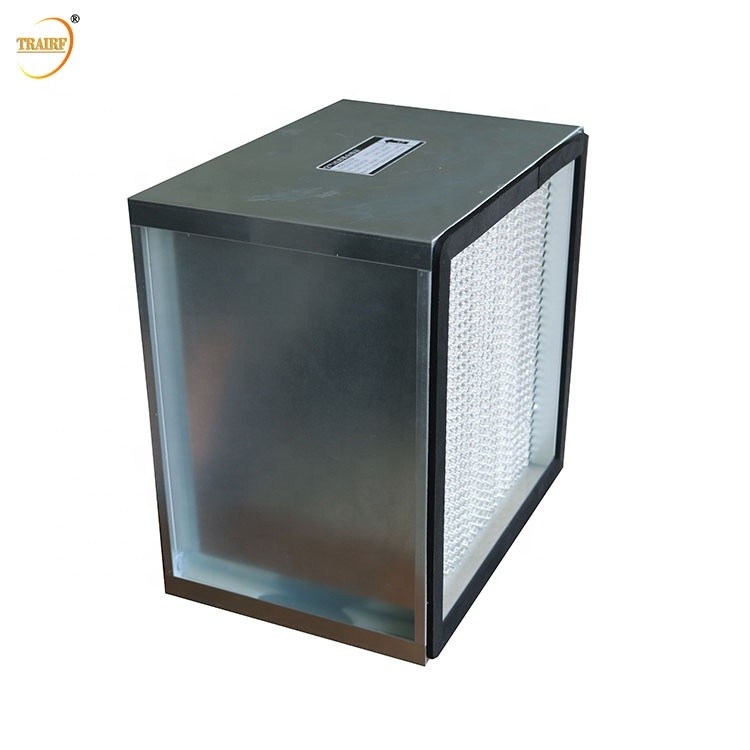

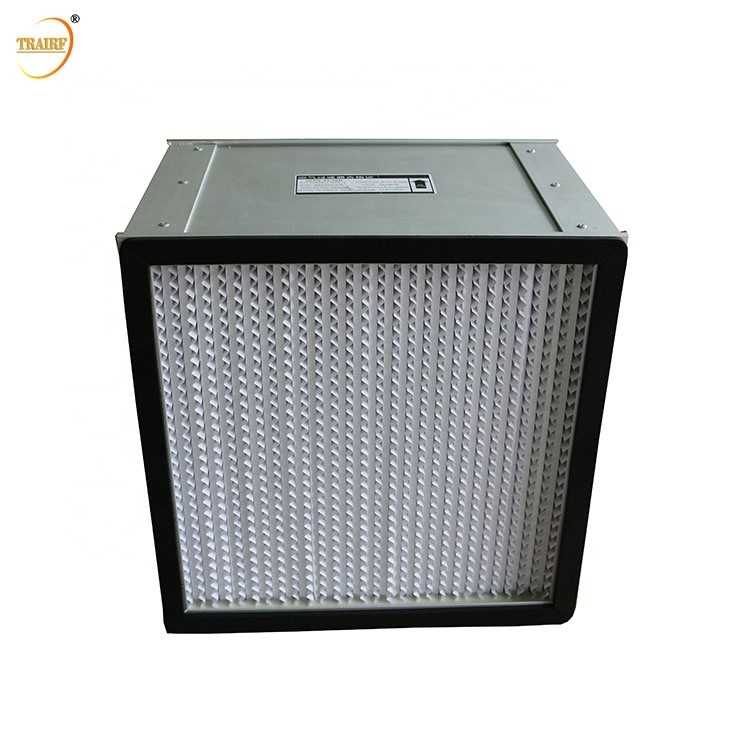

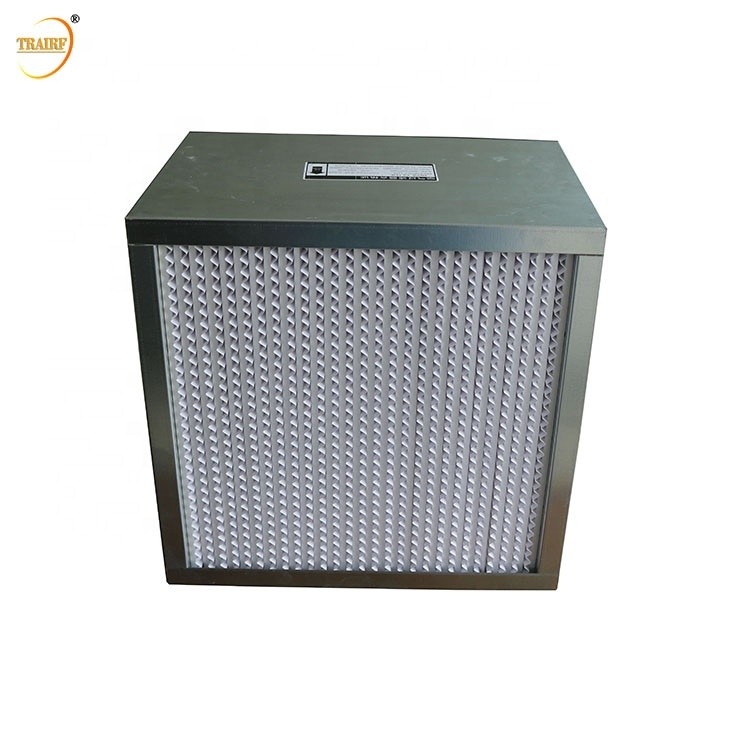

TRAIRF® high efficiency particulate Air Filter is made of ultra-fine fiberglass paper, it designed into traditional aluminium foil or paper for providing larger filtration area. Air can through media smoothly with low resistant. TRAIRF® high efficiency particulate HEPA Filter testing according to EN-1822 standard, filtration efficiency guaranteed from 99.97 % to 99.999 % for particles size at 0.3 micro meter.
Metal Frame (Galvanized Steel and Aluminum in box type or header type) are available. TRAIRF® high efficiency particulate Air Filter provide the maximum effective media area. With the advantages of long life span, light weight, easy handling of rejection and environment friendly.
Efficiency:
The series provide guarantee efficiency from 95.99%, 97.99%, 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter.
|
Testing Method |
||
|
Particle Size(um) |
0.3um |
0.1-0.2um |
|
Efficiency(%) |
95% |
99.999% above |
|
99.97% |
||
|
99.99% |
||
|
100.00% |
||
|
According to EN-1822 standard MPPS Test |
||
Hepa Filter Materials:
|
Filter Construction |
||
|
Filter Type |
Panel Type |
Single Header Type |
|
Filter Media |
Micro Glass Fiber |
|
|
Filter Frame |
Aluminium alloy / Galvanized / Stainless Steel / Wooden frame are Available |
|
|
Separator |
hot melt |
|
|
Support Grid |
Hot Melting |
|
|
Sealant |
PU Base |
|
Parameter:
|
Filter Parameters |
||||
|
Filter Class |
Standard Size(inch) |
Rated Airflow (m³/h) |
Initial Pressure Drop (Pa) |
Final Pressure Drop (Pa) |
|
H11 H14
|
12*24*12 |
1600 |
220
|
500
|
|
24*24*12 |
3200 |
|||
|
12*24*12 |
1700 |
|||
|
24*24*12 |
3400 |
|||
Customized Service is Available
Features:
1.High efficiency miscrogass paper media
2.Completely rigid, aluminizied metal box construction
3.header constrution
4.150mm,220mm,292mm thickness size are available
5.Normal work temperature, humidity :80 ℃ , 80%
6.Filtration efficiencies: H10-H14
