Overview:

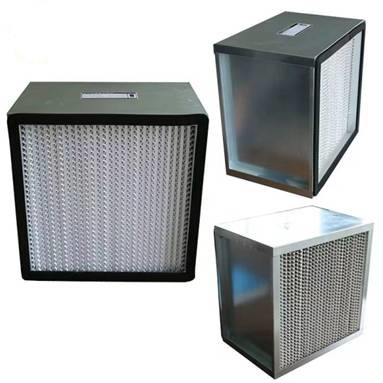

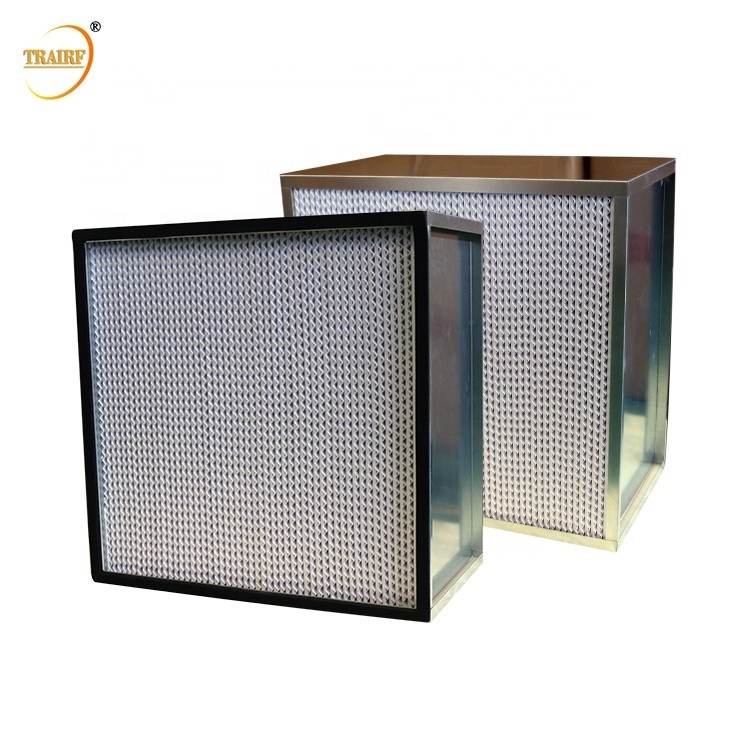

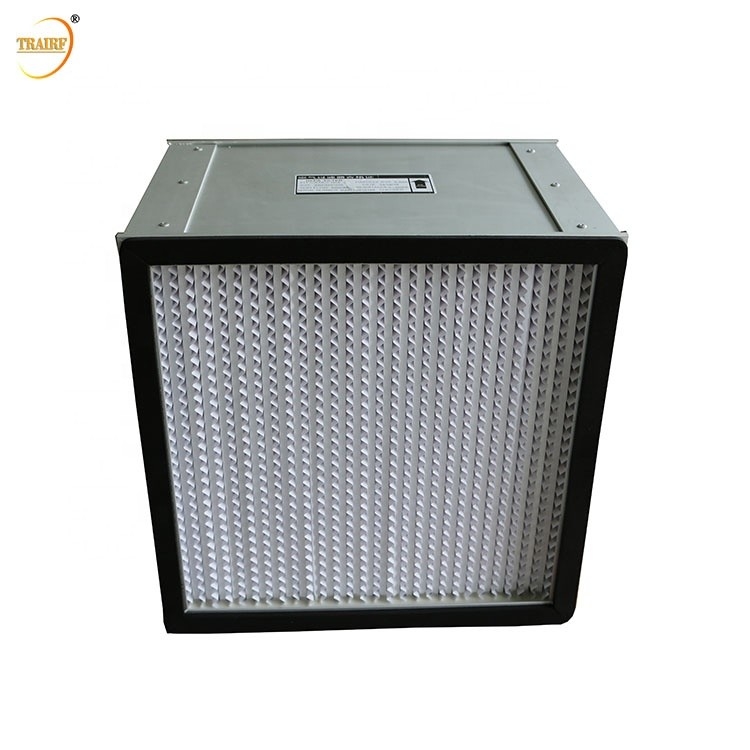

Deep pleat hepa air filter is the terminal device in purified air supply system. It aims to provide the air with desirable static pressure before passing through HEPA filter, to enable uniform air-out.
Hepa h13 filter requiring filed leak detection is provided with DOP dust and leakage detection mouth, and differential pressure detection mouth and lower damper based on customer’s requirements.
| Part Name | Deep pleat Hepa filter |
| Shape | Box Filter |
| Porosity | 0.3um |
| Size | 24X24X12 |
| Colour | Silver |
| Structures | Gavanized frame and Fiberglass Pleated Pack |
| Filtering Efficiency Grade | H11, H12, H13, h14 |
| Special Properties | High Dust Holding Capacity, Easy Installation, Long Service Life |
| Packaging |
1P/Carton (Customized) |
SPECIFICATIONS:
| Model | Dimensions(mm) | Airflow(m³/h) | Initial Resistance(Pa) | Efficiency(%) | Dust Capacity(g) |
| TR-YGB-1 | 305*305*150 | 250 | ≤220 | ≥99.99 | 200 |
| TR-YGB-2 | 320*320*220 | 400 | ≤220 | ≥99.99 | 350 |
| TR-YGB-3 | 484*484*150 | 600 | ≤220 | ≥99.99 | 400 |
| TR-YGB-4 | 484*484*220 | 1000 | ≤220 | ≥99.99 | 600 |
| TR-YGB-5 | 729*484*220 | 1500 | ≤220 | ≥99.99 | 900 |
| TR-YGB-6 | 968*484*220 | 2000 | ≤220 | ≥99.99 | 1200 |
| TR-YGB-7 | 610*610*150 | 1000 | ≤220 | ≥99.99 | 600 |
| TR-YGB-8 | 915*610*150 | 1500 | ≤220 | ≥99.99 | 900 |
| TR-YGB-9 | 1220*610*150 | 2000 | ≤220 | ≥99.99 | 1200 |
*CUSTOMIZATION IS AVAILABLE
Features:
1.High efficiency micro fiberglass paper media
2.Completely rigid, aluminum alloy metal box construction
3.No header constrution
4.Customized size are available
5.Normal work temperature, humidity :80 ℃ , 80%
6.Filtration efficiency: H10-H14
Detection method
Domestic high efficiency air filter detection is mainly based on GB/T 13554-2008 "High efficiency air filter", GB/T 14295-2008 "air filter", JB/T 6417-1992 "air filter for air conditioning", GB/T 6165-2008 "high efficiency air filter performance test method Filtration efficiency and resistance, detection methods include sodium flame method, oil mist method and counting method three, sodium flame method as the benchmark method. From the evolution process of the international high efficiency filter testing standards, we can see that the test methods of high efficiency air filter mainly include sodium flame method, oil mist method, DOP method, fluorescence method and particle counting method.
