Overview:

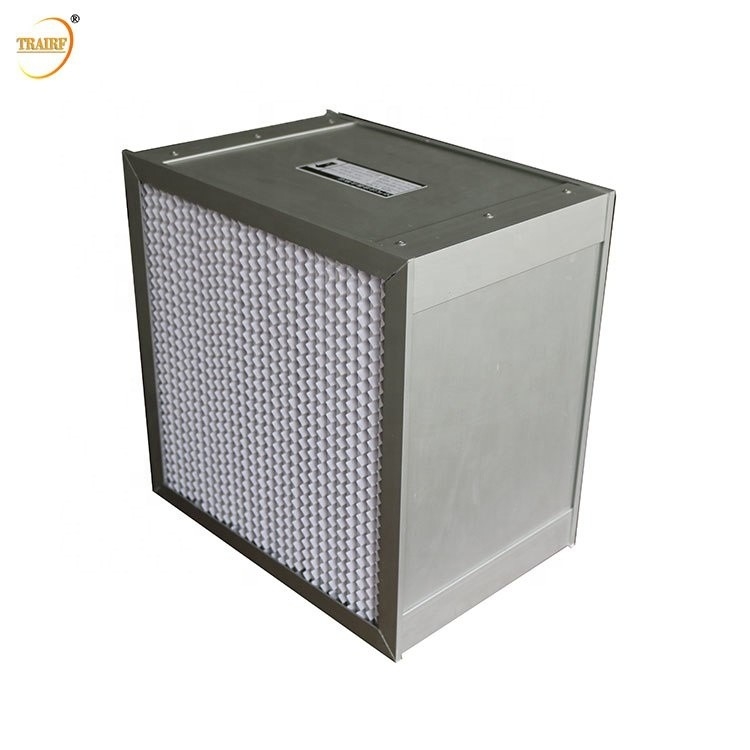

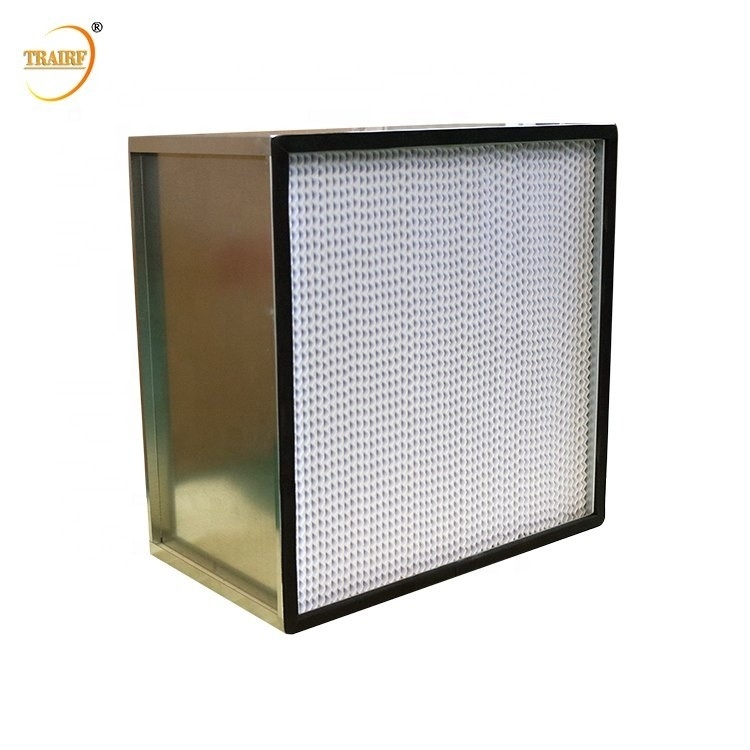

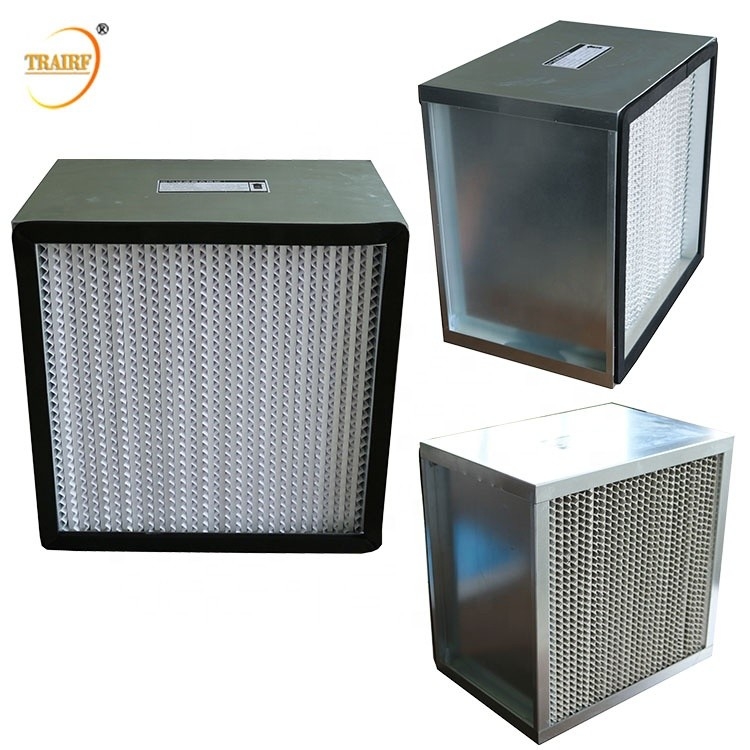

Deep Pleat HEPA filter is the terminal device in purified air supply system. It aims to provide the air with desirable static pressure before passing through HEPA filter, to enable uniform air-out.
Hepa filter requiring filed leak detection is provided with DOP dust and leakage detection mouth, and differential pressure detection mouth and lower damper based on customer’s requirements.
| Part Name | Separator Type Hepa filter |
| Shape | Box Filter |
| Porosity | 0.3um |
| Size | 300*550*300mm (Customized) |
| Colour | Silver |
| Structures | Gavanized frame and Fiberglass Pleated Pack |
| Filtering Efficiency Grade | H13, H14 |
| Special Properties | High Dust Holding Capacity, Easy Installation, Long Service Life |
| Packaging |
1P/Carton |
SPECIFICATIONS:
| Model | Dimensions(mm) | Airflow(m³/h) | Initial Resistance(Pa) | Efficiency(%) | Dust Capacity(g) |
| TR-YGB-1 | 305*305*150 | 250 | ≤220 | ≥99.99 | 200 |
| TR-YGB-2 | 320*320*220 | 400 | ≤220 | ≥99.99 | 350 |
| TR-YGB-3 | 484*484*150 | 600 | ≤220 | ≥99.99 | 400 |
| TR-YGB-4 | 484*484*220 | 1000 | ≤220 | ≥99.99 | 600 |
| TR-YGB-5 | 729*484*220 | 1500 | ≤220 | ≥99.99 | 900 |
| TR-YGB-6 | 968*484*220 | 2000 | ≤220 | ≥99.99 | 1200 |
| TR-YGB-7 | 610*610*150 | 1000 | ≤220 | ≥99.99 | 600 |
| TR-YGB-8 | 915*610*150 | 1500 | ≤220 | ≥99.99 | 900 |
| TR-YGB-9 | 1220*610*150 | 2000 | ≤220 | ≥99.99 | 1200 |
*CUSTOMIZATION IS AVAILABLE
Features:
1.High efficiency micro fiberglass paper media
2.Completely rigid, aluminum alloy metal box construction
3.No header constrution
4.Customized size are available
5.Normal work temperature, humidity :80 ℃ , 80%
6.Filtration efficiency: H10-H14
Applications:
Hepa filters widely apply in laminar flow hood,Biomedical,Vehicles,Airlines,Heating, air conditioning,respiratory protection, clean rooms, industrial processes, and building ventilation systems,Electronic Air Filters for High-End Residential & Commercial Facilities,labatory,etc.
