Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

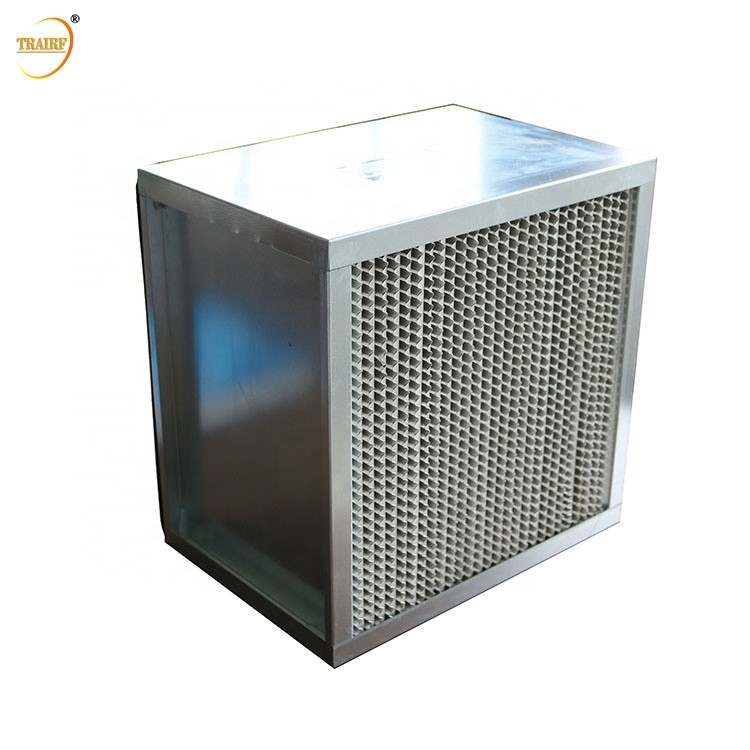

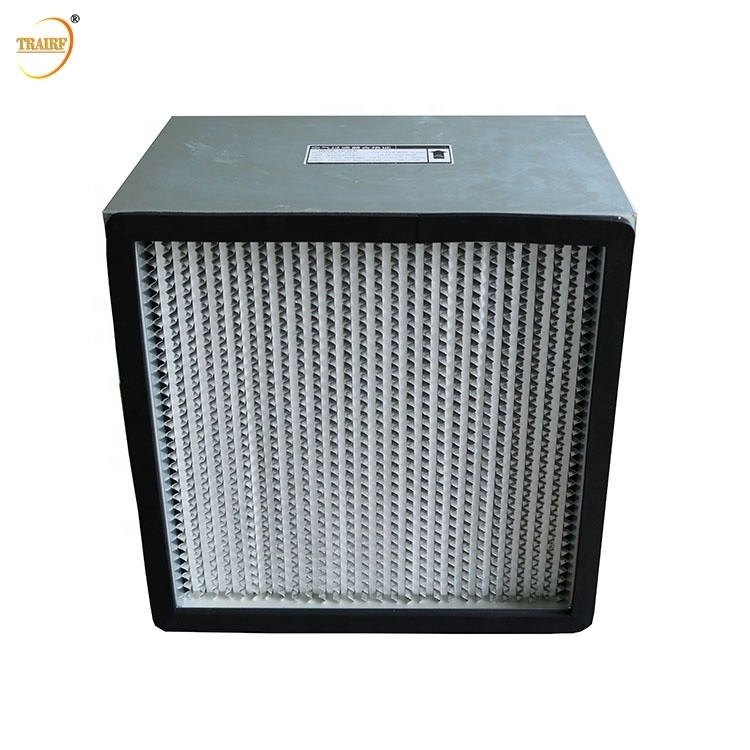

External frame: galvanized frame
Gasket: EVA
Filter media: Glass fiber filter
Separator: Hot melt adhesive
Maximum temperature: 80℃
Maximum humidy: 80%
The advantage of Deep-Pleat filter is that:
* High efficiency
* Low resistance
* Light weight
* Convenient installation
1. Stable efficiency, low resistance, large dust capacity,
2. Good uniformity of wind speed, long service life,
3. Collect more than 0.3um dust particles, efficiency optional H10-H14
The use of High Efficiency Deep Pleat HEPA Air Filter:
Widely used in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, beverage and food, PCB printing and other industries dust-free purification workshop air supply end;
Used in hospital, electronics factory, semiconductor factory, clean room, cleaning table and other occasions requiring high cleanliness.
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Core Components |
media |
|
Condition |
New |
|
Efficiency |
99.99% |
|
Construction |
Box Filter |
|
Porosity |
0.3u |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
484*484*220mm |
|
Weight |
3KG |
|
Warranty |
Non -quality Problems |
|
Product name |
Deep Pleated H13 H14 EU13 EU14 HEPA Air Filter |
|
Application |
Commercial & Industrial Ventilation System |
|
Type |
Deep Air Filter |
|
Material |
Fiber Glass with paper or aluminum foil separation |
|
Frame |
Aluminium Alloy , Galvanized, Stainless steel |
|
Color |
Silver |
|
OEM Service |
Customized Service Available |
|
Initial Pressure |
220Pa |
|
Work Temperature |
80℃ |
|
Humidity |
80%RH |
Product Parameters
Hepa Filter Aluminium Frame filter parameters have model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
|
Model |
Outside Dimensions(mm) |
Rated air flow(m³/h) |
Initial resistance(Pa) |
Efficiency(class) |
|
TR-YGB-1 |
305*305*150 |
250 |
≤220 |
≥99.99 |
|
TR-YGB-2 |
3320*320*220 |
400 |
≤220 |
≥99.99 |
|
TR-YGB-3 |
484*484*150 |
600 |
≤220 |
≥99.99 |
|
TR-YGB-4 |
484*484*220 |
1000 |
≤220 |
≥99.99 |
|
TR-YGB-5 |
726*484*220 |
1500 |
≤220 |
≥99.99 |
|
TR-YGB-6 |
968*484*220 |
2000 |
≤220 |
≥99.99 |
|
TR-YGB-7 |
610*610*150 |
1000 |
≤220 |
≥99.99 |
|
TR-YGB-8 |
915*610*150 |
1500 |
≤220 |
≥99.99 |
|
TR-YGB-9 |
1220*610*150 |
2000 |
≤220 |
≥99.99 |
|
TR-YGB-10 |
630*630*220 |
1600 |
≤220 |
≥99.99 |
|
TR-YGB-11 |
945*630*220 |
2400 |
≤220 |
≥99.99 |
|
TR-YGB-12 |
1220*630*220 |
3200 |
≤220 |
≥99.99 |
|
TR-YGB-13 |
610*610*292 |
2200 |
≤220 |
≥99.99 |
|
TR-YGB-14 |
915*610*292 |
3300 |
≤220 |
≥99.99 |
|
TR-YGB-15 |
122*610*292 |
4400 |
≤220 |
≥99.99 |
* Customizable Size
Packaging Details: PE Bag inside, Carton Case outside
According to Customers' requirement
Shipping: Sample order:1-2days
Certifications
High quality create brand, all our products are passed ISO9001:2008 ,CE certification to make sure provide best products to our clients; Excellent service win good reputation and long term cooperation relationship between our business partners. Using Tianrui Air Filter to Save More Green for Our Home!
