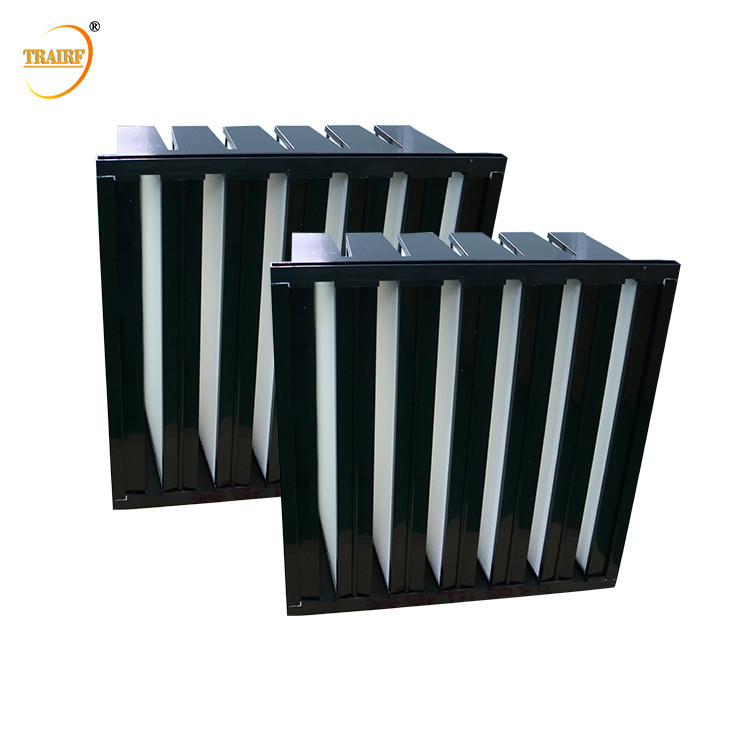

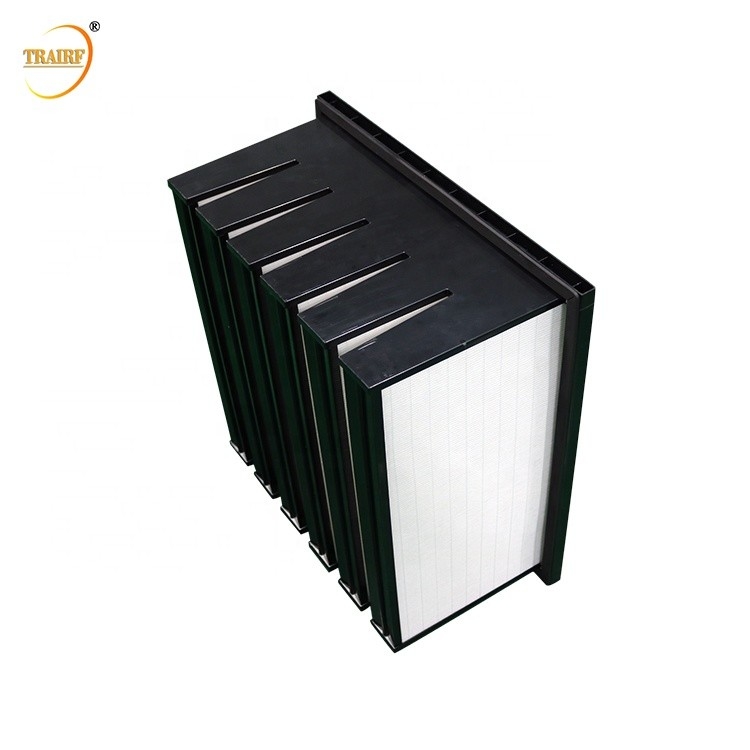

Industrial Zig Zag Air Filter Fiberglass Pleated Paper V Bank Filter F8 F9

Industrial Zig Zag Air Filter Fiberglass Pleated Paper V Bank Filter F8 F9

V Bank Filter F8 F9

Zig Zag Air Filter F8 F9

Zig Zag Air Filter F9

Place of Origin:

Sichuan, China

Brand Name:


Contact Us

Request A Quote
Product Details
Product Name:
Zig Zag Air Filter Industrial Filter V Bank Filter F8 F9
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Filter Media:
Fiberglass Pleated Paper
Frame Material:
ABS Plastic Frame
V Bank
Maximum Temperature:
Initial Pressure(Pa):
≤125 Pa
Payment & Shipping Terms
Minimum Order Quantity
50 pieces
$49.00/pieces 50-99 pieces
Packaging Details
1.FCL Order Filter packaged by 5 layers carton case.
2.LCL order filter packaged by wooden case.
3. According to customer's requirements.
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Set/Sets per Month Zig Zag Air Filter Manufacture V Bank Filter F8 F9
Product Description

Zig Zag Air Filter Industrial Filter V Bank Filter F8 F9



V-BANK Hepa Air Filter is mainly used for filtration of more than 0.5μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.


Features :

·         High Quality duct filter box,zig zag filter

·         low resistance.

·         large air volume.

·         low operation cost


 Material and performance


ABS Plastic

Filter medium

 Fiberglass(mini pleated)

Max. temperature


Max. humidity




Model Dimensions(mm) Airflow(m³/h) Initial Resistance(Pa) Efficiency(%)
TR-WGB-1 287*287*292 800 ≤125 95(F8)/99(F9)
TR-WGB-2 490*287*292 1200 ≤125 95(F8)/99(F9)
TR-WGB-3 490*490*292 2000 ≤125 95(F8)/99(F9)
TR-WGB-4 592*490*292 2000 ≤125 95(F8)/99(F9)
TR-WGB-5 592*490*292 2700 ≤125 95(F8)/99(F9)
TR-WGB-6 592*287*292 1600 ≤125 95(F8)/99(F9)
TR-WGB-7 592*592*292 2400 ≤125 95(F8)/99(F9)
TR-WGB-8 592*592*292 3200 ≤125 95(F8)/99(F9)

*Customization is available.



Ventilation filter f8 f9 (air conditioner filter hvac ahu) is made of high strength glass fiber with gradual density. Low compressibility keeps its shape and makes fiber purified air effectively. It can absorb the excess particles during paint-spraying operation and reduce pollution to the environment, make the exhausted air more environmental-friendly and inner circulating air more clean.



        1. Fiberglass filter media,ventilation air filter  .

        2. Large air flow

        3. Low resistance

        4. High dust holding capacity

        5. Long service life

        6. High Quality Air Filters Havc,Air Filter Fiberglass,v-bank air filter manufacturer



Clean rooms,Biomedical,Vehicles,Airlines,Heating, air conditioning,spray booth,hospitals,food industry,pharmaceutical industry, universities,laminar flow hood, bio-engineering,respiratory protection,  industrial processes, building ventilation systems, Whole House Air Cleaning Systems, Electronic Air Filters for High-End Residential & Commercial Facilities.
