Mini Pleat V Bank Filter 24x12x12 Micro Fiberglass Paper Merv 14 Air Filter

Mini Pleat V Bank Filter 24x12x12 Micro Fiberglass Paper Merv 14 Air Filter

Mini Pleat V Bank Filter 24x12x12

24x12x12 Merv 14 Air Filter

Micro Fiberglass Paper Merv 14 Air Filter

Place of Origin:

Sichuan, China

Brand Name:

TRAIRF

Model Number:

TR-WYG-7

Contact Us

Request A Quote
Product Details
Product Name:
Pig Farm Merv14 Air Filter 24x12x12 Mini-Pleat V-Bank Filter
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Ventilation System, Pig Farm, Hoggery
Dimension(L*W*H):
592*287*292mm*4V; 24''x12''x12''
Frame Material:
ABS Plastic Frame
Filter Media:
Micro Fiberglass Paper
Maximum Temperature:
80℃
Initial Pressure(Pa):
≤125 Pa
Color:
Black & White
Application:
Pig Farm, Ventilation System
Port:
Shanghai
Payment & Shipping Terms
Minimum Order Quantity
50 pieces
Price
$50.00/pieces 50-99 pieces
Packaging Details
1.Wooden Case outside, paper carton inside for LCL order
2.CUSTOMIZATION
Delivery Time
2-30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Set/Sets per Month
Product Description

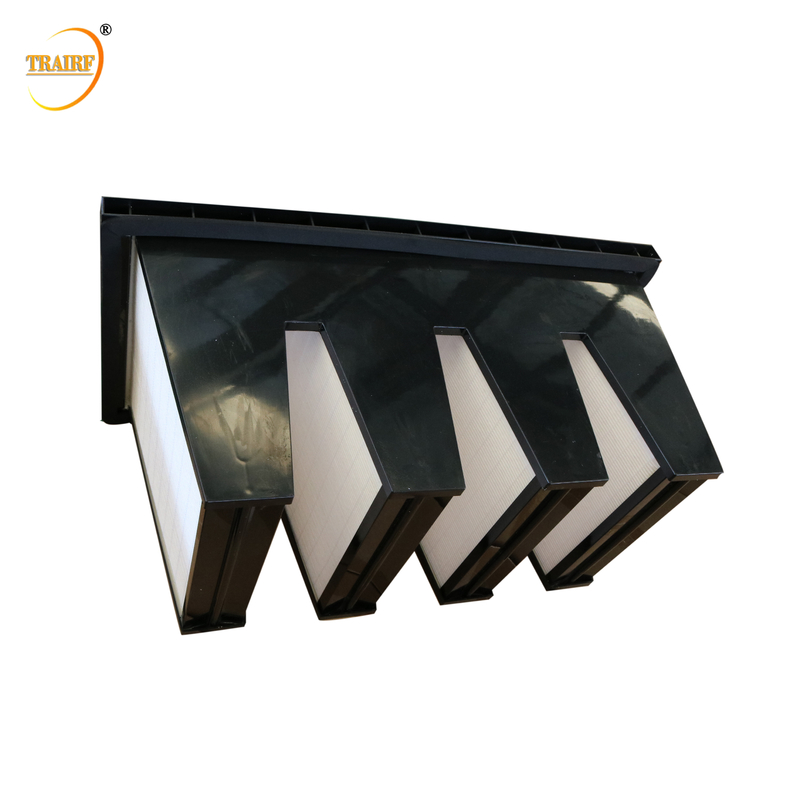

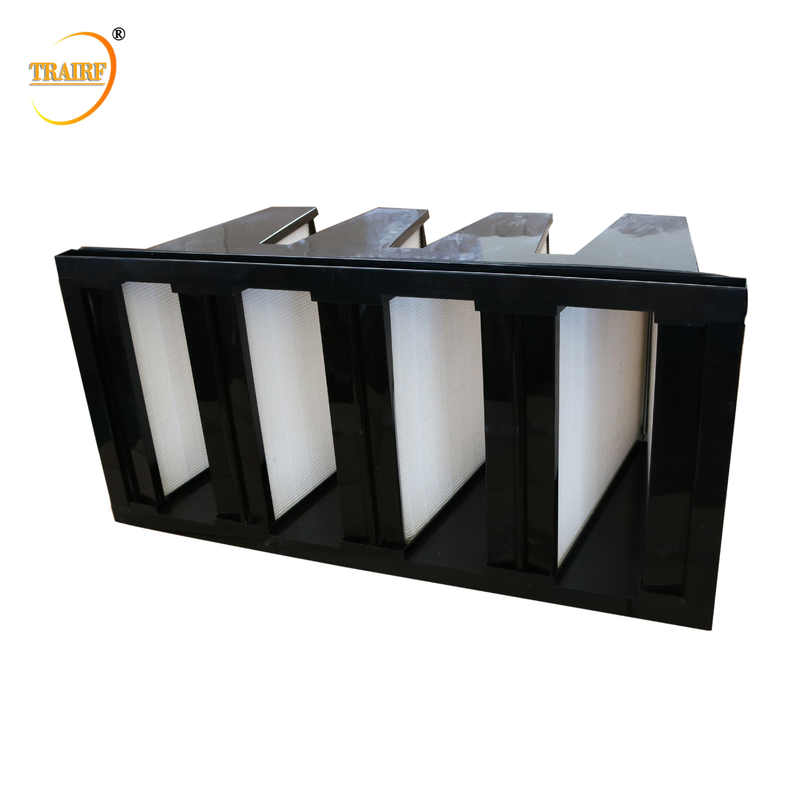

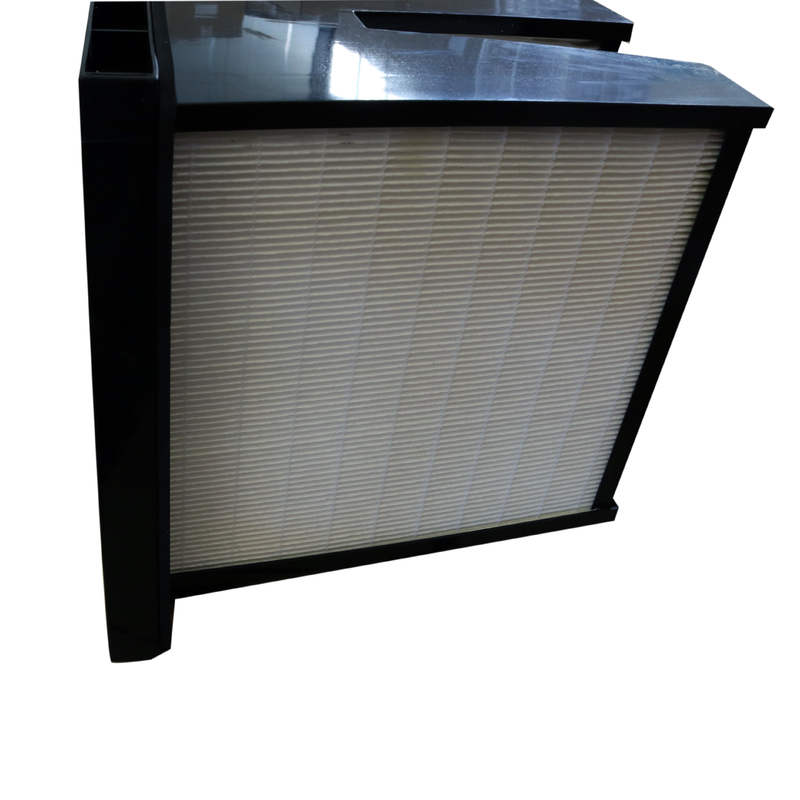

Pig Farm Merv14 Air Filter 24x12x12 Mini-Pleat V Bank Filter

Introduction:

V-bank Air Filter is made of high strength glass fiber with gradual density. Low compressibility keeps its shape and makes fiber purified air effectively. It can absorb the excess particles during paint-spraying operation and reduce pollution to the environment, make the exhausted air more environmental-friendly and inner circulating air more clean.



 Material and performance

Frame

 ABS Plastic frame

Filter medium

 Micro fiberglass media (mini pleated)

Max. temperature

 85°C

Max. humidity

 80%RH



 Characteristic:

        1. Micro Fiberglass filter media

        2. Large air flow

        3. Low resistance

        4. High dust holding capacity

        5. Long service life



Specifications:

Model Dimensions(mm) Airflow(m³/h) Initial Resistance(Pa) Efficiency(%)
TR-WGB-1 287*287*292 800 ≤125 95(F8)/99(F9)
TR-WGB-2 490*287*292 1200 ≤125 95(F8)/99(F9)
TR-WGB-3 490*490*292 2000 ≤125 95(F8)/99(F9)
TR-WGB-4 592*490*292 2000 ≤125 95(F8)/99(F9)
TR-WGB-5 592*490*292 2700 ≤125 95(F8)/99(F9)
TR-WGB-6 592*287*292 1600 ≤125 95(F8)/99(F9)
TR-WGB-7 592*592*292 2400 ≤125 95(F8)/99(F9)
TR-WGB-8 592*592*292 3200 ≤125 95(F8)/99(F9)

* Customizable Size

Mini Pleat V Bank Filter 24x12x12 Micro Fiberglass Paper Merv 14 Air Filter 0



Mini Pleat V Bank Filter 24x12x12 Micro Fiberglass Paper Merv 14 Air Filter 1



 Features:
1.  Superfine  glass fiber media
       Superfine glass fiber as the filter material, so as to ensure the long-term stability of the filter and filter efficiency

2. Big filtration area

With our 4V box filter will reach a very big filtration area suitable for large air volumes. This means a long useful lifetime with low operation costs The frames are made of halogen-free plastic. The filter ele- ment is free of metal parts.USES superfine glass fiber as the filter material, so as to ensure the long-term stability of the filter and filter efficiency

3. Frame
The frames are made of halogen-free plastic. The filter ele- ment is free of metal parts. Abs Plastic Frame Combined V Bank Filter 99.99% For 0.3 Micron.

4.  Environmental protection and disposal
 Our filters can be incinerated completely environmental friendly in disposal plants

 5.  Own test equipment



Applications:
1. Clean rooms.

2. Food processing industry.

3. Pharmaceutical Processing.

4. Genetic & Biological research.

5. Biohazard Atmosphere.

6. Laminar Flow Workstations.

7. Bio Safe Hoods (Biological Safety Cabinets).

8. Hospital Operating Theaters & Intensive care units.

9. Electronic Industry.
