6 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter

1 piece
USD 8.36-11.45 piece
6 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter
Features Gallery Product Description Request A Quote
Construction: Bag Filter
Weight: 1 KG
Core Components: Synthetic Fiber
Condition: New
Efficiency: F9
Porosity: 3 Um
Frame Material: Galvanized Frame
Color: Yellow
Pockets: 6 Pockets

500mm Air Bag Filter


Galvanization Frame 6Pockets Filter


F9 Air Bag Filter

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: trairf
Certification: CE,SGS
Model Number: 490*490*500mm
Payment & Shipping Terms
Packaging Details: carton box
Delivery Time: 5-12 work days
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per 5-12 days
Product Description

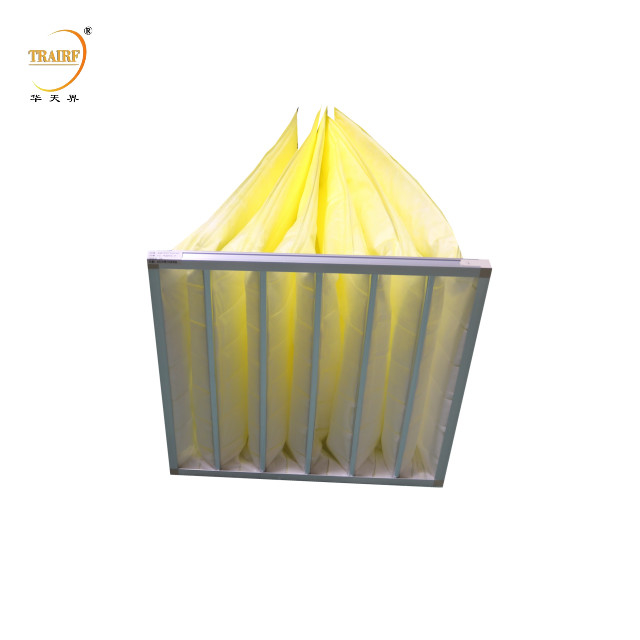

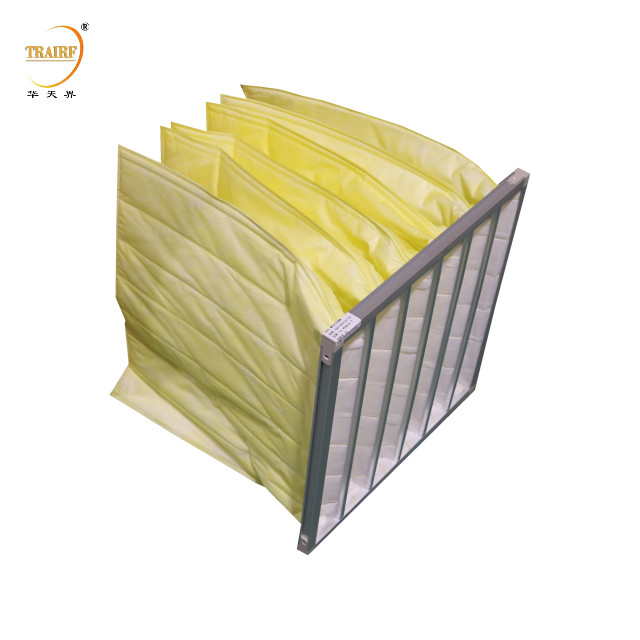

6 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter

TRAIRF® Pocket Filter Bag Filter F9 is an extended surface air filter designed for most medium and high efficiency air filtration systems.
The pocket air filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are
manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber sheding.
TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.


6 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter 06 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter 16 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter 2

Product parameters

Model Outside dimensions(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency Model of filter media Pockets
TR-ZXD-P1 495*295*500mm
20"×12" ×20"
1000m³/h 50-130Pa
45% F5
65% F6
85% F7
95% F8
98% F9
TR-ZXD-P2 495*295*500mm
20"×12" ×20"
1800m³/h 5
TR-ZXD-P3 595*295*500mm
24"×12" ×20"
1300m³/h 6
TR-ZXD-P4 595*595*500mm
24"×24" ×20"
2200m³/h 6
TR-ZXD-P5 495*295*500mm
20"×12" ×24"
2600m³/h 8
TR-ZXD-P6 495*495*500mm
20"×20" ×24"
1200m³/h 5
TR-ZXD-P7 495*295*500mm
20"×12" ×24"
2200m³/h 5
TR-ZXD-P8 595*295*500mm
24"×12" ×24"
1600m³/h 6
TR-ZXD-P9 595*495*500mm
24"×20" ×24"
2700m³/h 6
TR-ZXD-P10 595*595*500mm
24"×24" ×24"
3200m³/h 8

* Customizable size


Product Line

6 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter 3



1. Clean rooms (suitable for use in multilayer filter filtration system)

2. Food processing industry.

3. Pharmaceutical Processing.

4. Aerospace Engineering.

5. Genetic & Biological research.

6. Biohazard Atmosphere.

7. Laminar Flow Workstations.

8. Bio Safe Hoods (Biological Safety Cabinets).

9. Hospital Operating Theaters & Intensive care units.

10. Spray Booth and Paint Room.

11. Electronic Industry.

6 Pockets Filter Galvanization Frame 490-490-500mm Air Bag Filter 4



1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit

4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price

2. 7-10 days Short Delivery Time base on Strong Producing Strength

3. With more than 10 Year OEM Service Experience in Air Filter Field

4. Products Quality are Guaranteed with ISO9001 & CE Certificate

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
