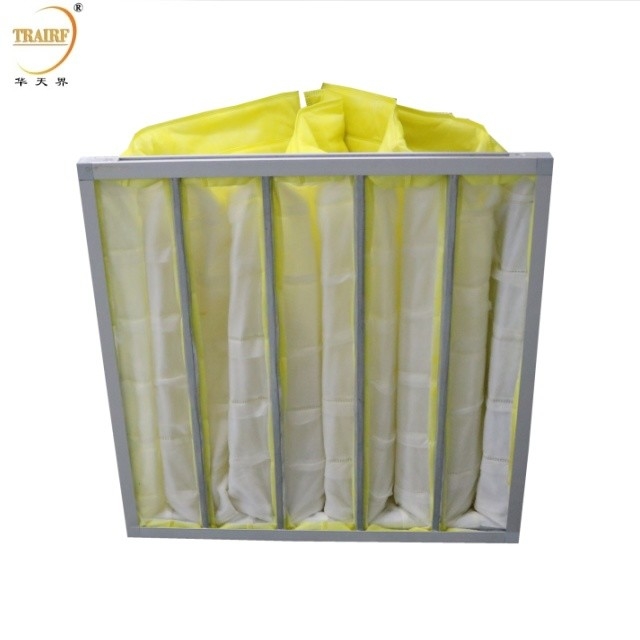

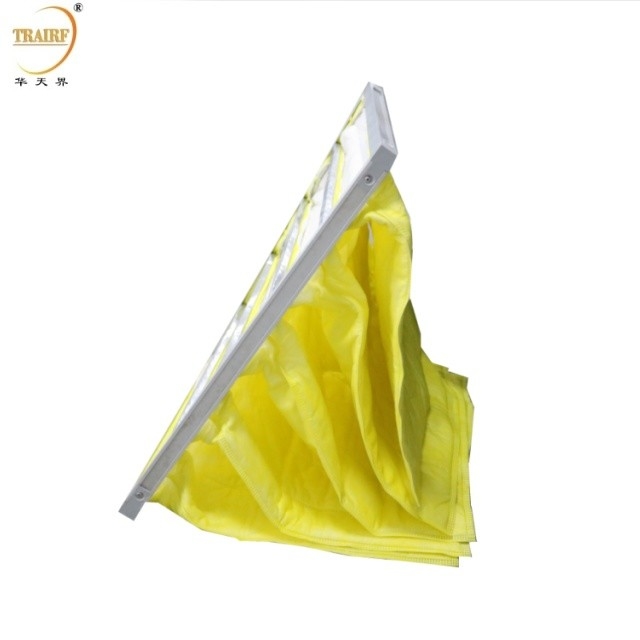

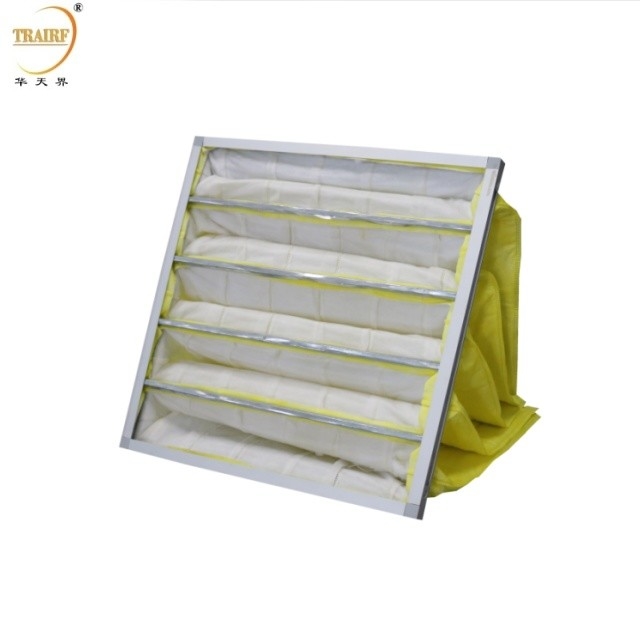

Industrial Media Pocket Air Filter for AHU Bag Filter

Industrial Media Pocket Air Filter for AHU Bag Filter

Place of Origin:

Sichuan,China

Brand Name:

trairf

Certification:

CE

Model Number:

495*495*500mm

Contact Us

Request A Quote
Product Details
Construction:
Bag Filter
Condition:
New
Efficiency:
F8
Porosity:
3 Um
Dimension:
592.287381mm
Color:
Yellow
Frame:
Galvanized Steel; Aluminum Alloy
Feature:
Durable, Easy, Economy
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
USD 4.58-6.83 piece
Packaging Details
carton package
Delivery Time
5-12 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pieces per 1 month
Product Description

Industrial Media Pocket Air Filter for AHU Bag Filter



Product Description

Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.

Industrial Media Pocket Air Filter for AHU Bag Filter 0

Industrial Media Pocket Air Filter for AHU Bag Filter 1



Industrial Media Pocket Air Filter for AHU Bag Filter 2Industrial Media Pocket Air Filter for AHU Bag Filter 3

Feature

Size: 495*495*500 mm
Pocket: 5 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: yellow
Maximum service temperature: 80ºC
Maximum humidity:80%
*Long service life
*Large dust holding capacity
*Can be reused many times
*Small resistance, high air volume, low wind speed
Excellent filtration performance; Good air-tightness;
Silicone-free design The high strength of the filter bag, not easy to break or fall off.

Product Parameters
Model Outside Dimensions(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency Model of filter media Pockets
TR-ZXD-P1 495*295*500mm 20"×12" ×20" 1000m³/h 50-130Pa
45% F5
65% F6
85% F7
95% F8
98% F9
colorimetric
F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow
5
TR-ZXD-P2
495*295*500mm
20"×12" ×20"
1800m³/h 5
TR-ZXD-P3
595*295*500mm
24"×12" ×20"
1300m³/h 6
TR-ZXD-P4 595*595*500mm 24"×24" ×20 2200m³/h 6
TR-ZXD-P5
495*295*500mm
20"×12" ×24"
2600m³/h 8
TR-ZXD-P6
495*495*500mm
20"×20" ×24"
1200m³/h 5
TR-ZXD-P7
495*295*500mm
20"×12" ×24"
2200m³/h 5
TR-ZXD-P8
595*295*500mm
24"×12" ×24"
1600m³/h 6
TR-ZXD-P9
595*495*500mm
24"×20" ×24"
2700m³/h 6
TR-ZXD-P10
595*595*500mm
24"×24" ×24"
3200m³/h 8





Manufacturing technique

Industrial Media Pocket Air Filter for AHU Bag Filter 4



Why choose us?

1. The dimension can be customized. 2. We have our own factory and brand. 3. With independent R&D and design capabilities. 4. The products have passed ISO9001 and SGS certification. 5. We have specialized in the export of air filters for over 10 years. 6. We provide OEM and ODM service ,sample production and service according to your demand.



Application

1. Clean rooms (suitable for use in multi layer filter filtration system) 2. Food processing industry. 3. Pharmaceutical Processing. 4. Aerospace Engineering. 5. Genetic & Biological research. 6. Bio hazard Atmosphere. 7. Laminar Flow Workstations. 8. Bio Safe Hoods (Biological Safety Cabinets). 9. Hospital Operating Theaters & Intensive care units. 10. Spray Booth and Paint Room. 11. Electronic Industry.

Industrial Media Pocket Air Filter for AHU Bag Filter 5



FAQ

Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.

Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.
Secondly: Competitive Price provided as raw materials are provided by our own factory.

Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.

Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17) American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)

Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.

Q: What's your MOQ ?
A: Different standard of MOQ for different goods.

Q: What's your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )

Q: What's your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.


Q:What's your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance before shipment. If you have another question, please feel free to contact us.
