Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Certification:
CE
Contact Us

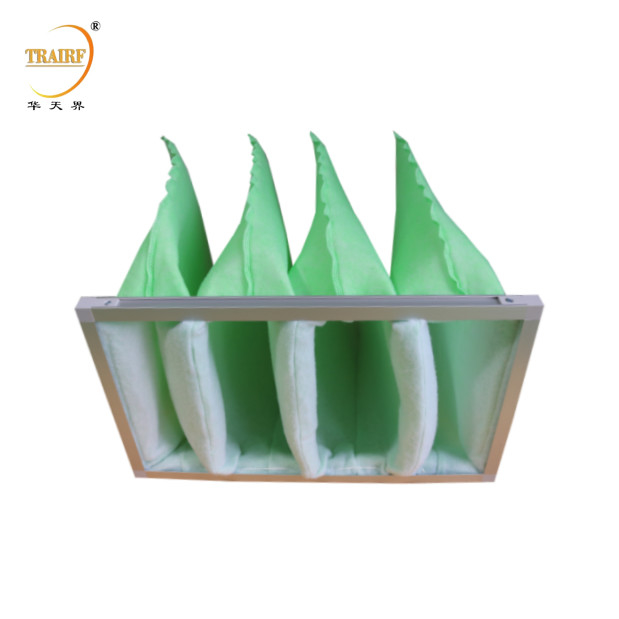

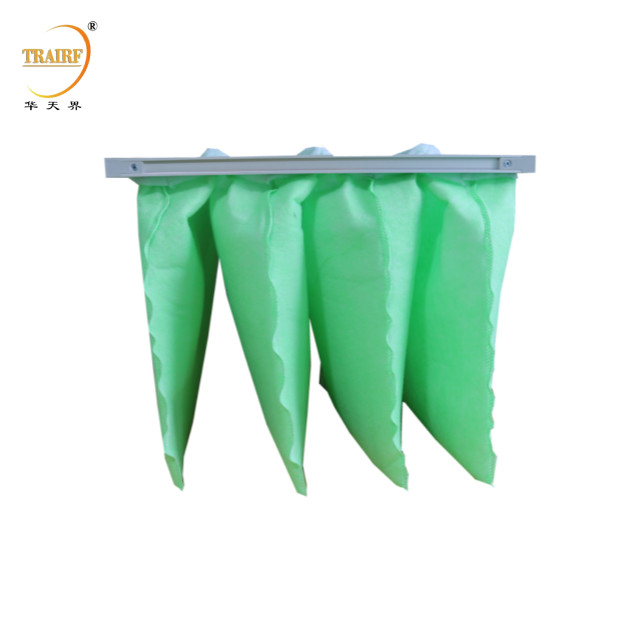

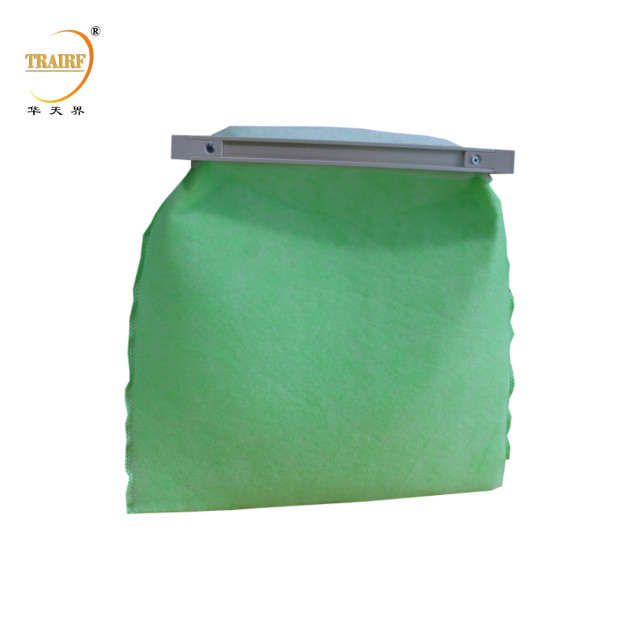

TRAIRF® Medium Efficiency Pocket Air Filter is an extended surface air filter designed for most medium and high efficiency air filtration systems. This broad spectrum of styles and models makes the Main Pack extremely versatile and suitable for almost any commercial or industrial air handling system. The pocket filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding. TRAIRF® pocket filters are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.
Features
Pocket: 4-8 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: green
Maximum service temperature: 80℃
Maximum humidity:80%
Features:
* Long service life
* Large dust holding capacity
* Can be reused many times
* Small resistance
* Large air flow
* Low wind speed
* Can be used multiple times
Applications:
Widely used in air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.
Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.
Product Parameters
Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) | Model of filter media | Pockets |
TR-ZXD-P1 | 495×295×500mm 20”×12” ×20” | 1000 | 50-130Pa | 45% F5 | F5 | 5 |
TR-ZXD-P2 | 495×295×500mm 20”×12” ×20” | 1800 | 5 | |||
TR-ZXD-P3 | 595×295×500mm 24”×12” ×20” | 1300 | 6 | |||
TR-ZXD-P4 | 595×595×500mm 24”×24” ×20” | 2200 | 6 | |||
TR-ZXD-P5 | 495×295×600mm 20”×12” ×24” | 2600 | 8 | |||
TR-ZXD-P6 | 495×495×600mm 20”×20” ×24” | 1200 | 5 | |||
TR-ZXD-P7 | 495×295×600mm 20”×12” ×24” | 2200 | 5 | |||
TR-ZXD-P8 | 595×295×600mm 24”×12” ×24” | 1600 | 6 | |||
TR-ZXD-P9 | 595×495×600mm 24”×20” ×24” | 2700 | 6 | |||
TR-ZXD-P10 | 595×595×600mm 24”×24” ×24” | 3200 | 8 |
* Customizable Size
Application
1. Clean rooms (suitable for use in multi layer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Bio hazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Filter media, Pre Filter,Medium Pocket Filter,HEPA Filter,HVAC Air Filter,FFU Fan Filter Unit,Filter Cartridge;
4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price
2. 7-10 days Short Delivery Time base on Strong Producing Strength
3. With more than 10 Year OEM Service Experience in Air Filter Field
4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian.
