G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner

G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner

G4 White Pre Air Filter

10mm Pre Air Filter

Air Conditioner G4 Pre Filter

Place of Origin:

Sichuan, China

Brand Name:

trairf

Certification:

CE,SGS

Model Number:

230*430*10mm

Contact Us

Request A Quote
Product Details
Weight:
1 KG
Construction:
Panel Filter
Core Components:
Cotton
Condition:
New
Efficiency:
40%
Porosity:
5um
Color:
White
Frame:
Aluminum Alloy Frame
Filter Grade:
G4
Package:
Carton Box
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
USD5.25-7.02 piece
Packaging Details
carton box
Delivery Time
5-12 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pieces per 5-12 days
Product Description

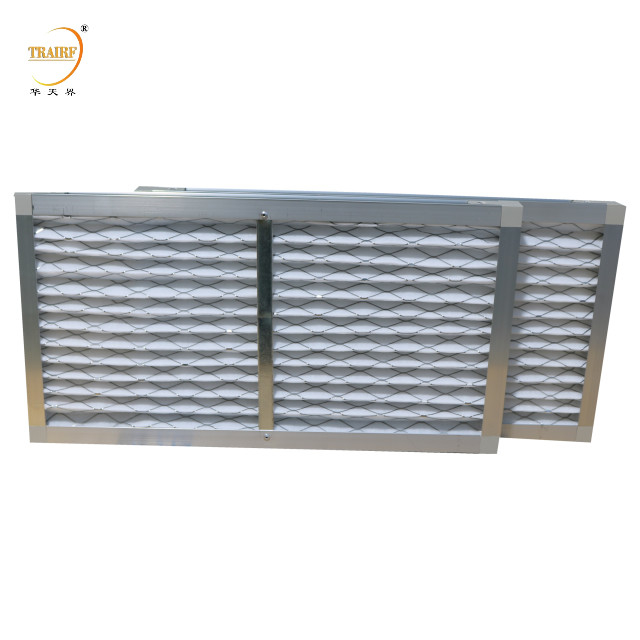

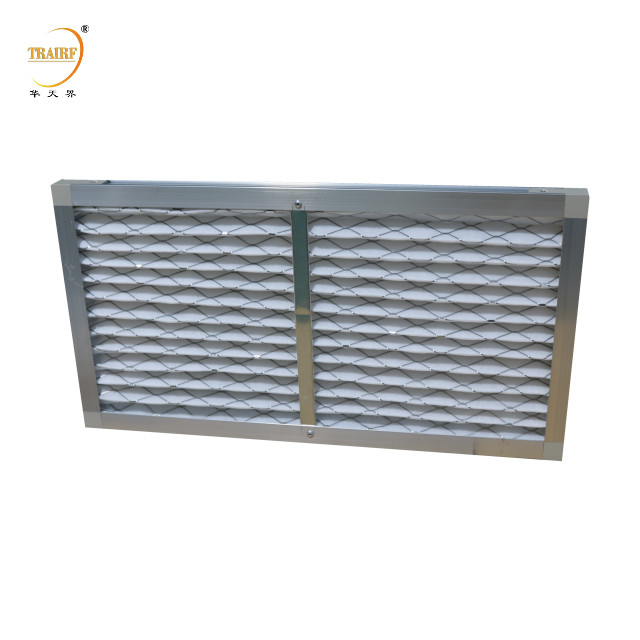

G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner

The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.
G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner 0G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner 1










Product Materials, features, specifications
Outer Frame: Strong aluminum alloy frame to protect whole structure.
Filter Media: Good quality filters cotton to collect dust effectively.
Product Design: Well-organized metal support to prevent filter media fallin
* High dust loading capacity
* Low pressure drop
* Large air flow
* Efficiency: G4
* Low cost ,washable pre filter
* Easy installation
* Long service life
1.The moisture-proof: 100%;
2.Heat resistance: 80ºC;
3.The rank of the filtration:G4-F9;
4.AHU air filter,Air Conditioning pleated Industrial Air Filters, polyester primary fiber air filter.
Widely used in air conditioning system intermediate filtration;
Clean room fresh air system, etcs.
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 year
Condition
New
Efficiency
40%-90%
Construction
Panel Filter
Porosity
5 um
Place of Origin
China
Province
Sichuan
Brand Name
TRAIRF
Dimension(L*W*H)
230*430*10mm
Weight
1 KG
Warranty
1 year
Color
White
Frame
Aluminum Alloy Frame
Filtration Grade
G1~G4
Shape
Rectangle
Package
Carton Box



Manufacturing technique

G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner 2





Product parameters
Pleated synthetic fiber pleated filter parameters are model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
Model Outside dimensions(mm) Ratde air flow(m³/h) Initial resistance(Pa) Efficiency(class) Model of filter media
TR-CX-P1
295×295×10/20mm
12”×12” ×1/2”/1”
800m³/h 25-50Pa 40% weight

G2

G3

G4

Nylon nets

Early effect filter cotton

Corrugated aluminium nets
TR-CX-P2
495×295×10/20mm
20”×12” ×1/2”/1”
1300m³/h
TR-CX-P3
495×495×10/20mm
20”×20” ×1/2”/1”
2200m³/h
TR-CX-P4
595×295×10/20mm
24”×12” ×1/2”/1
1600m³/h
TR-CX-P5
595×495×10/20mm
24”×20” ×1/2”/1”
2700m³/h
TR-CX-P6
595×595×10/20mm
24”×24” ×1/2”/1”
3200m³/h

* Customzable Size



Applications:

1. Clean rooms (suitable for use in multilayer filter filtration system)

2. Food processing industry.

3. Pharmaceutical Processing.

4. Aerospace Engineering.

5. Genetic & Biological research.

6. Biohazard Atmosphere.

7. Laminar Flow Workstations.

8. Bio Safe Hoods (Biological Safety Cabinets).

9. Hospital Operating Theaters & Intensive care units.

10. Spray Booth and Paint Room.

11. Electronic Industry.

G4 230*430*10mm White Primary Efficiency Pre Air Filter For Air Conditioner 3
