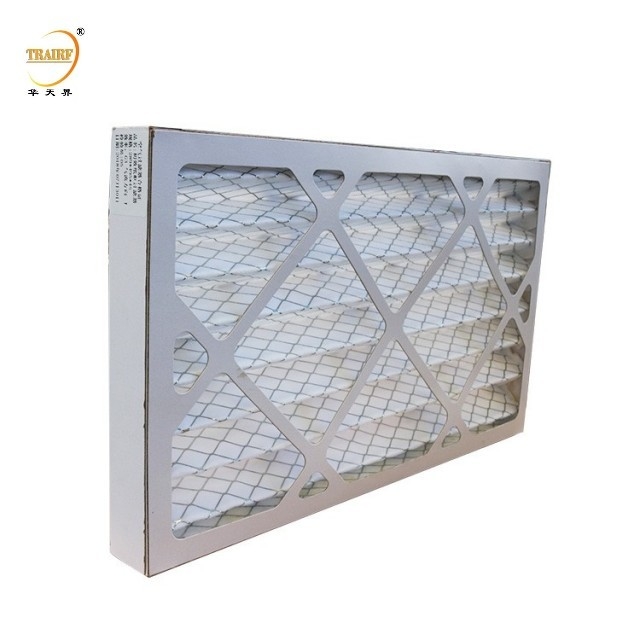

G4 F5 F6 F7 F8 F9 H13 H14 Mini Pleated Panel Activated Carbon Filter For Home Air Conditioning

Industrial G4 F5 F6 F7 F8 F9 H13 H14 Mini Pleated Panel Activated Carbon Filter for Home Air Conditioning

TRAIRF® Air Filter is made of cotton,ultra-fine fiberglass, it designed into continuity fold paper for providing larger filtration area. Mini-pleats media design also can extending filter life and decreasing filter pressure drop. Air can through media smoothly with low resistant. What's more, folded media separated through hot melt adhesive to make sure there are no chemical pollution air release to our clean space.



Manufacturing technique

Features:

*Color: white

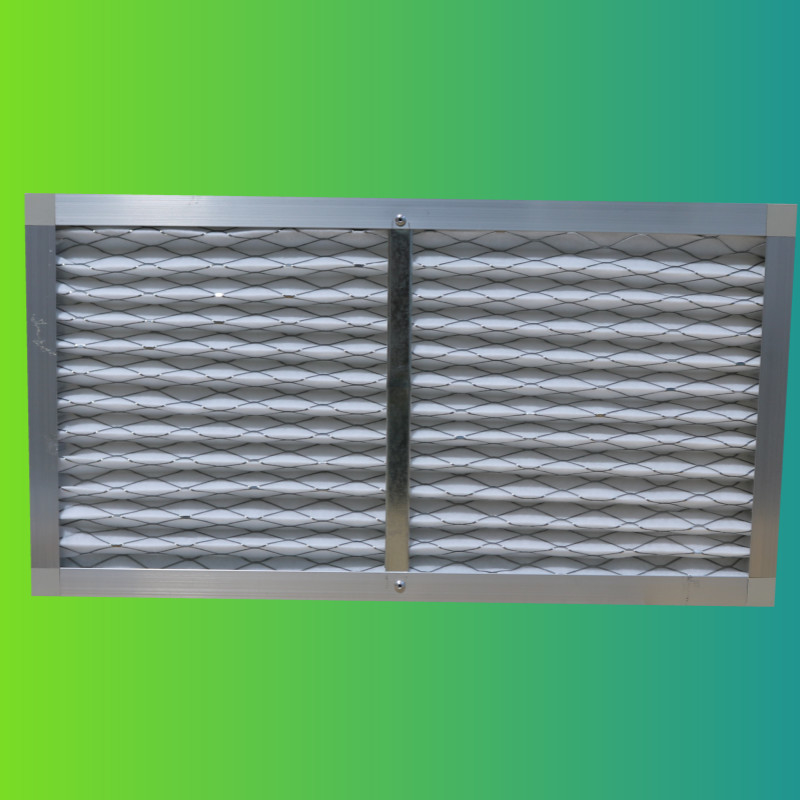

* External Frame: Galvanized frame or aluminum frame

* Cheap price, thin thickness

* Large effective filtration area
* Easy to be installed
* Lower resistance
* Great dust holding capacity



Product parameters

Model	Outside dimensions(mm)	Ratde air flow(m³/h)	Initial resistance(Pa)	Efficiency(class)		Model of filter media
TR-CX-P1	295×295×10/20mm 12”×12” ×1/2”/1”	800m³/h	25-50Pa	40% weight	G2 G3 G4	Nylon nets   Early effect filter cotton   Corrugated aluminium nets
TR-CX-P2	495×295×10/20mm 20”×12” ×1/2”/1”	1300m³/h
TR-CX-P3	495×495×10/20mm 20”×20” ×1/2”/1”	2200m³/h
TR-CX-P4	595×295×10/20mm 24”×12” ×1/2”/1	1600m³/h
TR-CX-P5	595×495×10/20mm 24”×20” ×1/2”/1”	2700m³/h
TR-CX-P6	595×595×10/20mm 24”×24” ×1/2”/1”	3200m³/h

* Customzable Size



Matters needing attention for air filters:

1. After cleaning the filter cloth, if the initial resistance value of the filter is lower than the initial resistance value of the filter installed for the first time, it should not be used and replaced in time;The filter should be replaced even if the
pressure difference is greater than the initial value after two times of cleaning.

2. When taking the HEPA filter, the case should be carried upside down to make the HEPA filter land smoothly.
3. After cleaning the filter, check whether it is damaged or not, and replace it in time. Do not rub, machine wash or shake dry.
4. In the cleaning process, the primary and middle effect filter should not be confused, and should be numbered in order to
distinguish.
5. Each air purification system should have a set of spare filters to be replaced in time when clean.



Applications:

1. Clean rooms (suitable for use in multilayer filter filtration system)

2. Food processing industry.

3. Pharmaceutical Processing.

4. Aerospace Engineering.

5. Genetic & Biological research.

6. Biohazard Atmosphere.

7. Laminar Flow Workstations.

8. Bio Safe Hoods (Biological Safety Cabinets).

9. Hospital Operating Theaters & Intensive care units.

10. Spray Booth and Paint Room.

11. Electronic Industry.

FAQ

Q: Are you a Trading Company or really a Manufacturer?

A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.

Q: Why should we choose your as a trust quality supplier especially for the first deal?

A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.

B: Secondly: Competitive Price provided as raw materials are provided by our own factory.

Q: Do you have any certification to ensure the quality?

A: ISO9001; CE Certification. Company has advance quality inspection equipment.

Q: What is the international standard for air filter?

A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)

B: American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)

Q: Can you send Free Sample?

A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.

Q: What’s your MOQ ?

A: Different standard of MOQ for different goods.

Q: What’s your Delivery Way?

A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )

Q: What’s your delivery date?

A: Normal delivery date is about 7-20 workdays after payment.

Q:What’s your payment terms?

A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance beforeshipment. If you have another question, please feel free to contact us.
