Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

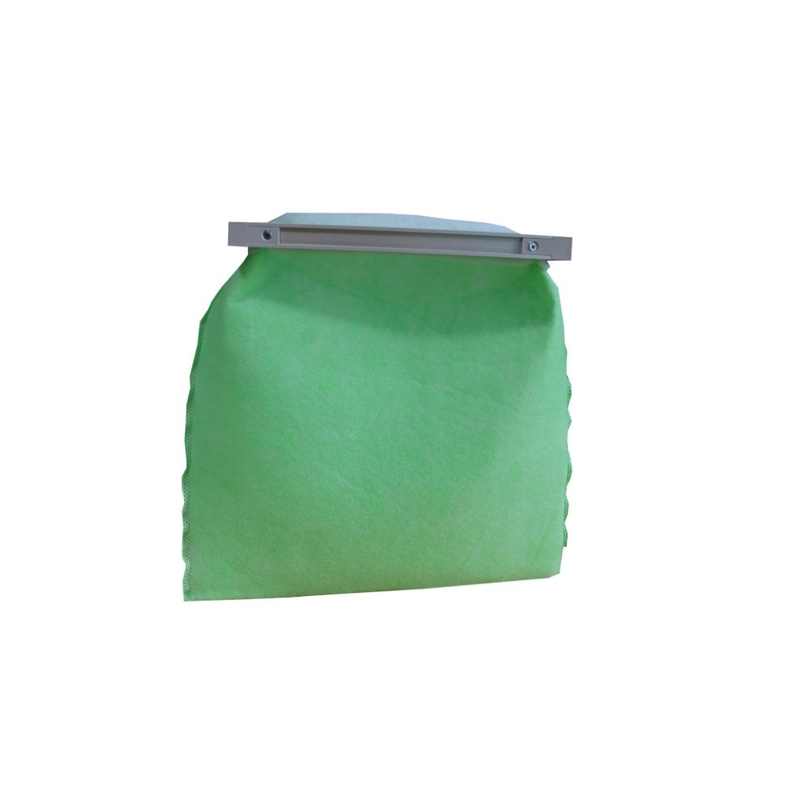

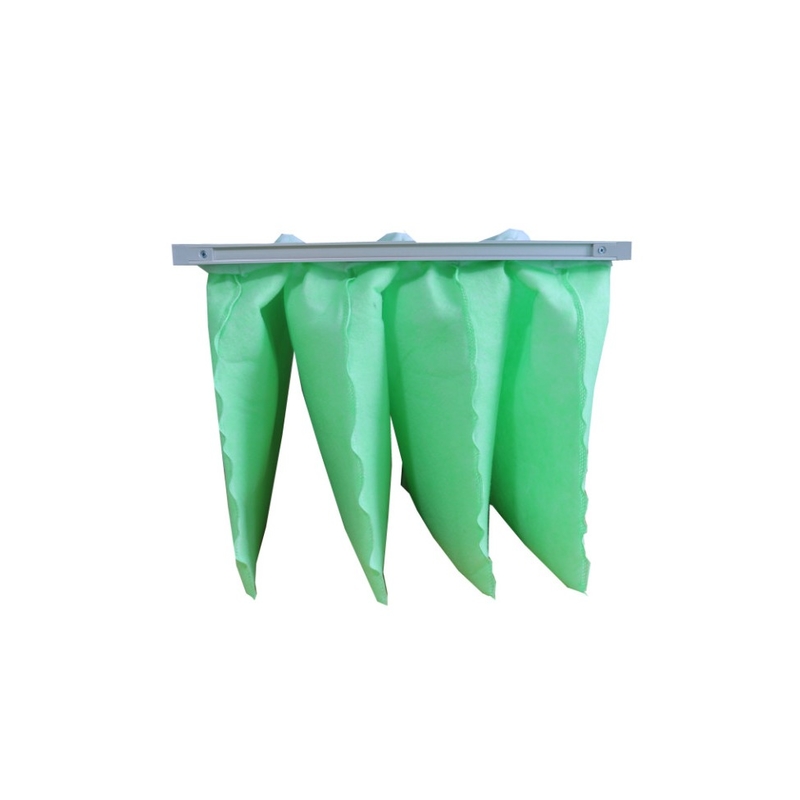

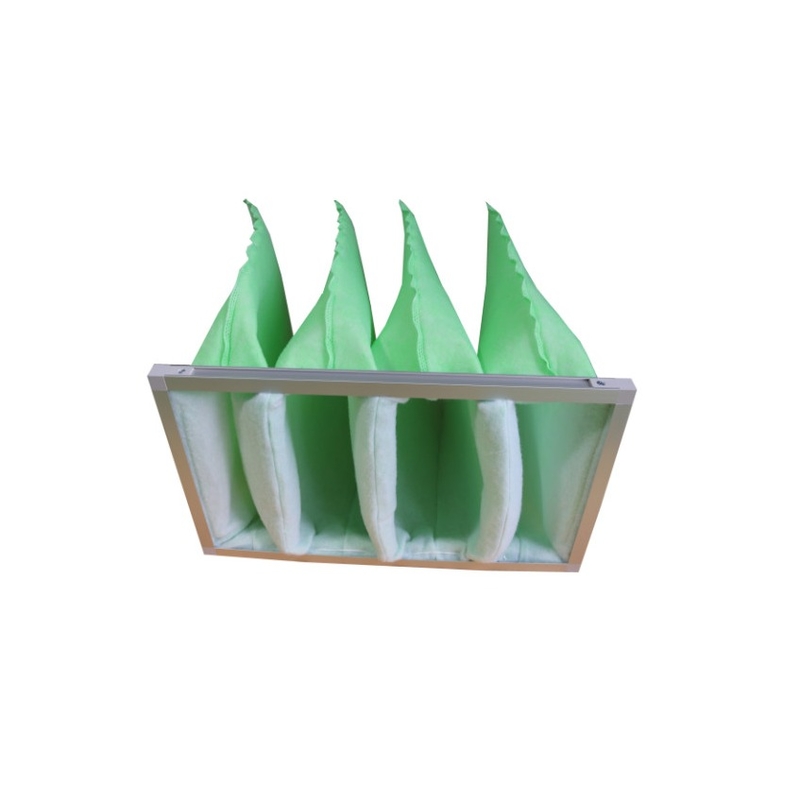

TRAIRF® Medium Efficiency Pocket Air Filter is an extended surface air filter designed for most medium and high efficiency air filtration systems. This broad spectrum of styles and models makes the Main Pack extremely versatile and suitable for almost any commercial or industrial air handling system. The pocket filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding. TRAIRF® pocket filters are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.
Pocket: 4-8 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: green
Maximum service temperature: 80℃
Maximum humidity:80%
Features:
* Long service life
* Large dust holding capacity
* Can be reused many times
* Small resistance
* Large air flow
* Low wind speed
* Can be used multiple times
Applications:
Widely used in air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.
Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.
Model |
Outside Dimensions(mm) |
Rated air flow(m³/h) |
Initial resistance(Pa) |
Efficiency(class) |
Model of filter media |
Pockets |
TR-ZXD-P1 |
495×295×500mm 20”×12” ×20” |
1000 |
50-130Pa |
45% F5 |
F5 |
5 |
TR-ZXD-P2 |
495×295×500mm 20”×12” ×20” |
1800 |
5 |
|||
TR-ZXD-P3 |
595×295×500mm 24”×12” ×20” |
1300 |
6 |
|||
TR-ZXD-P4 |
595×595×500mm 24”×24” ×20” |
2200 |
6 |
|||
TR-ZXD-P5 |
495×295×600mm 20”×12” ×24” |
2600 |
8 |
|||
TR-ZXD-P6 |
495×495×600mm 20”×20” ×24” |
1200 |
5 |
|||
TR-ZXD-P7 |
495×295×600mm 20”×12” ×24” |
2200 |
5 |
|||
TR-ZXD-P8 |
595×295×600mm 24”×12” ×24” |
1600 |
6 |
|||
TR-ZXD-P9 |
595×495×600mm 24”×20” ×24” |
2700 |
6 |
|||
TR-ZXD-P10 |
595×595×600mm 24”×24” ×24” |
3200 |
8 |
* Customizable Size
