Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

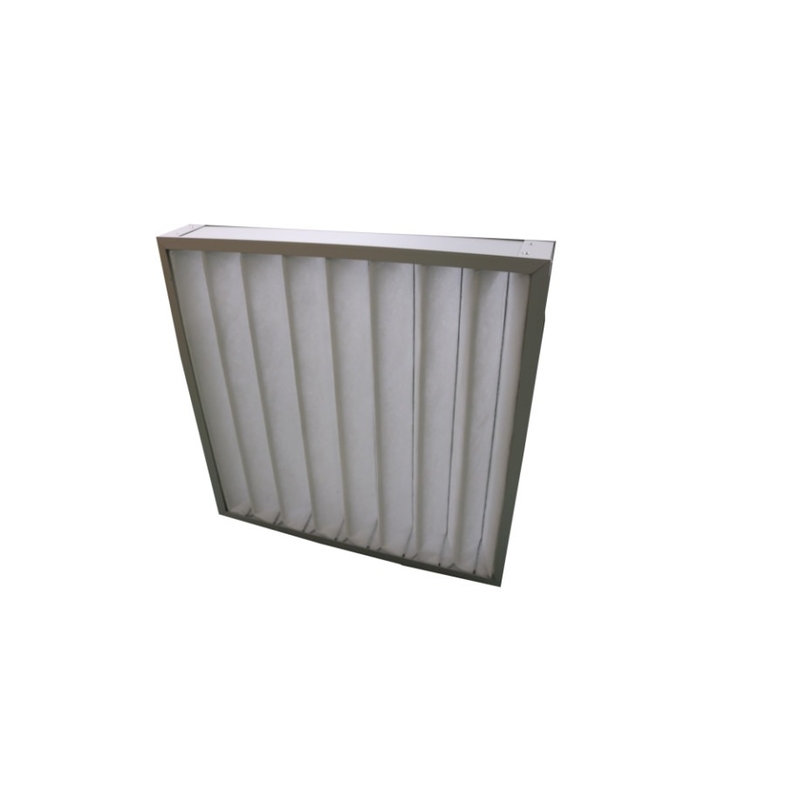

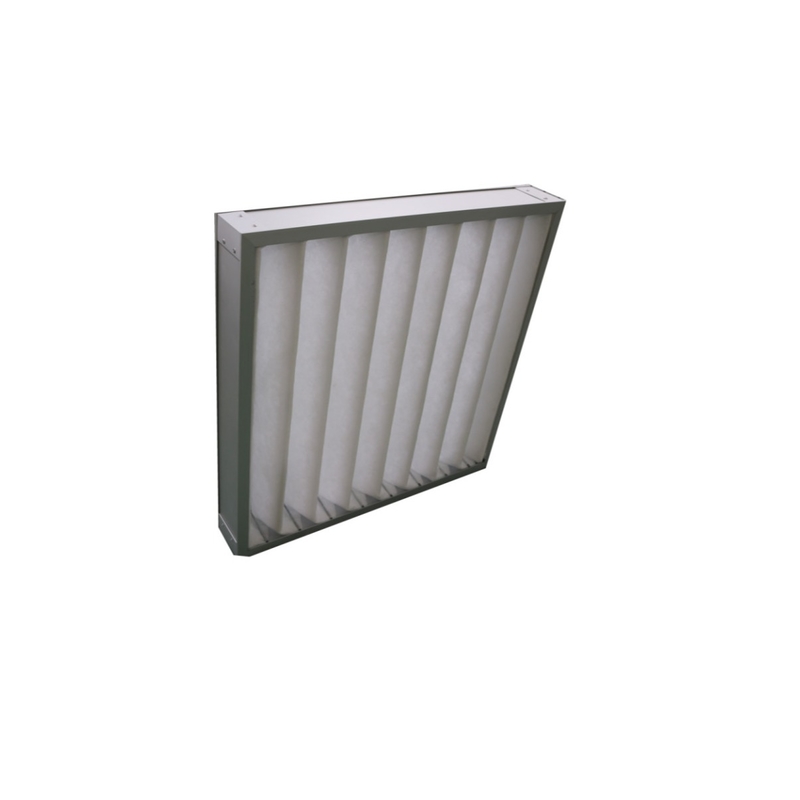

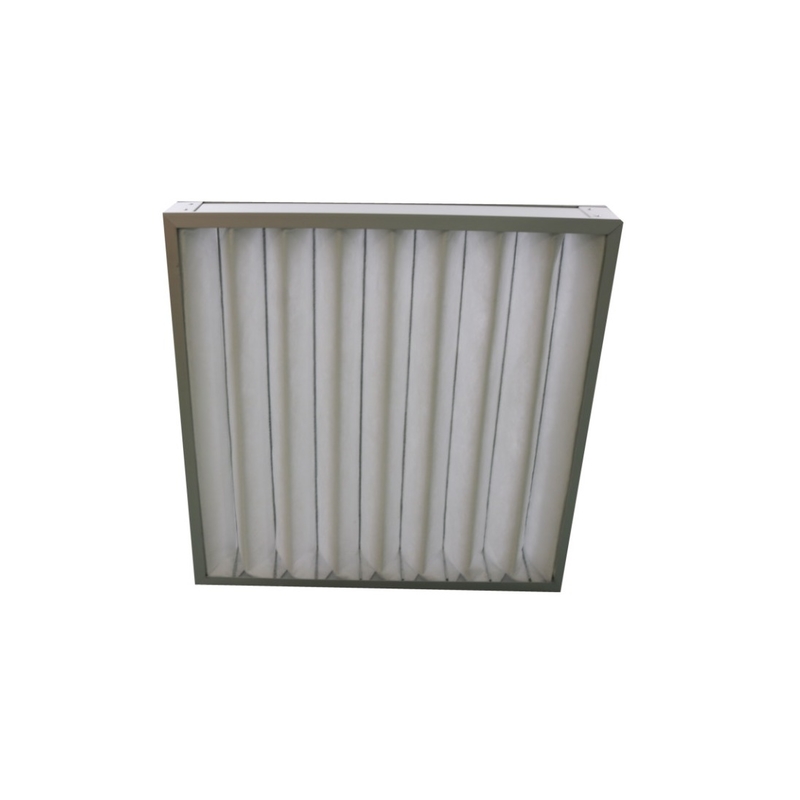

The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.
item |
value |
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Video outgoing-inspection |
Provided |
Machinery Test Report |
Provided |
Warranty of core components |
Not Available |
Condition |
New |
Efficiency |
45-90% |
Construction |
Panel Filter |
Porosity |
5 um |
Place of Origin |
China |
Province |
Sichuan |
Brand Name |
TRAIRF |
Dimension(L*W*H) |
495*295*46mm |
Weight |
1KG |
Warranty |
Unavailable |
Color |
White |
Filter Type |
Pleated |
Frame Material |
Frame Materi |
Filter Media |
Coarse Filtration Cotton |
Resistance and Dust Capacity |
Low Resistance and Large Air Flow |
OEM |
Available |
Product Parameters
Model |
Outside Dimensions(mm) |
Rated air flow(m³/h) |
Initial resistance(Pa) |
Efficiency(class) |
Model of filter media |
|
TR-CX-P1 |
295×295×10/20mm 12”×12” ×1/2”/1” |
800 |
25Pa-50Pa |
40% weight |
G2 G3 |
Nylon nets
Early effect filter cotton
Corrugated aluminium nets |
TR-CX-P2 |
495×295×10/20mm 20”×12” ×1/2”/1” |
1300 |
||||
TR-CX-P3 |
495×495×10/20mm 20”×20” ×1/2”/1” |
2200 |
||||
TR-CX-P4 |
595×295×10/20mm 24”×12” ×1/2”/1 |
1600 |
||||
TR-CX-P5 |
595×495×10/20mm 24”×20” ×1/2”/1” |
2700 |
||||
TR-CX-P6 |
595×595×10/20mm 24”×24” ×1/2”/1” |
3200 |
* Customizable Size
Replacement cycle
Under the condition of rated air volume, the filter needs to be replaced in 3~4 months;
Or when the filter resistance reaches more than 400Pa, the filter must be replaced;
If the filter uses washable filter material, the filter material can be replaced with clean water or a solution containing neutral detergent to wash, cool and dry, and then replaced; Cleaning is allowed two times at most, that is, a new filter must be replaced;
If the dust concentration in the environment is large, the service life cycle will be reduced
