Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.
Product Materials, features, specifications

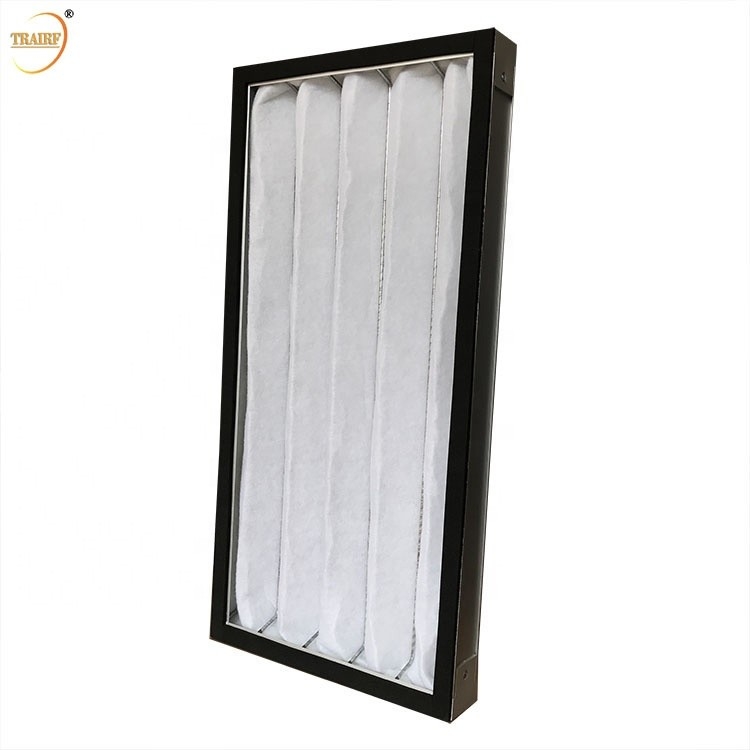

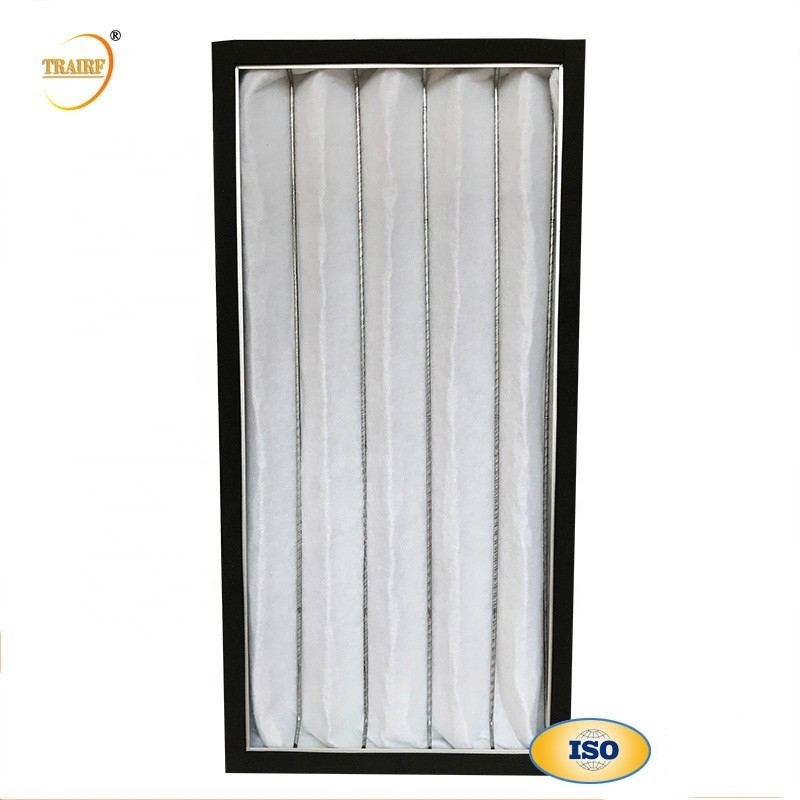

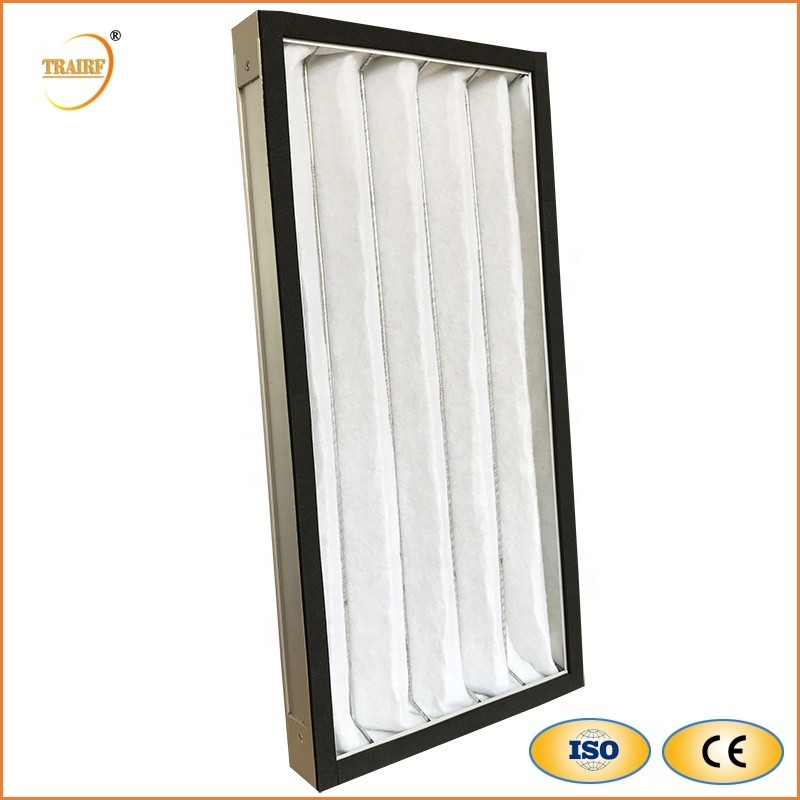

Description: Pre Filtration air filter is made of polyester fiber in white color, it can be washed repeatedly serval times to save cost, also with lower resistance pressure and strong flame retartant feature and resilience.
The advantages of synthetic fiber pleated panel filter are that:
1.Low resistance
2.Large filter area
3.Large dust holding capacity
4.Washable filter media, cost economical
Applicable to air conditioning system adopts the primary filtration
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Condition |
New |
|
Efficiency |
50% |
|
Construction |
Panel Filter |
|
Porosity |
5 Micron |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
Customized Size |
|
Weight |
1KG |
|
Warranty |
Unavailable |
|
Color |
White |
|
Filter Material |
Polyester Fiber |
|
Medium Material |
Pre Filtration Cotton |
|
Frame |
Aluminium alloy, Galvanized plate, stainless steel |
|
Filter Media Type |
Pleated |
|
Initial Psressure |
25 Pa |
|
Rated air flow |
800-3200m³/h |
Product Parameters
| Model | Outside Dimensions(mm) | Rated Air Flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model of filter media | |
| TR-CX-P1 | 295×295×10/20 12”×12” ×1/2”/1” |
800 | 25Pa-50Pa | 40% weight |
G2 G3 G4 |
|
| TR-CX-P2 | 495×295×10/20 20”×12” ×1/2”/1” |
1300 | ||||
| TR-CX-P3 | 495×495×10/20 20”×20” ×1/2”/1” |
2200 | ||||
| TR-CX-P4 | 595×295×10/20 24”×12” ×1/2”/1” |
1600 | ||||
| TR-CX-P5 | 595×495×10/20 24”×20” ×1/2”/1” |
2700 | ||||
| TR-CX-P6 | 595×595×10/20 24”×24” ×1/2”/1” |
3200 | ||||
* Customizable Size
FAQ 1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
(1. Turth Factory Supply you with Factory Price
(2. 7-10 days Short Delivery Time base on Strong Producing Strength
(3.With more than 10 Year OEM Service Experience in Air Filter Field
(4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
Send your inquiry directly to us
