Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

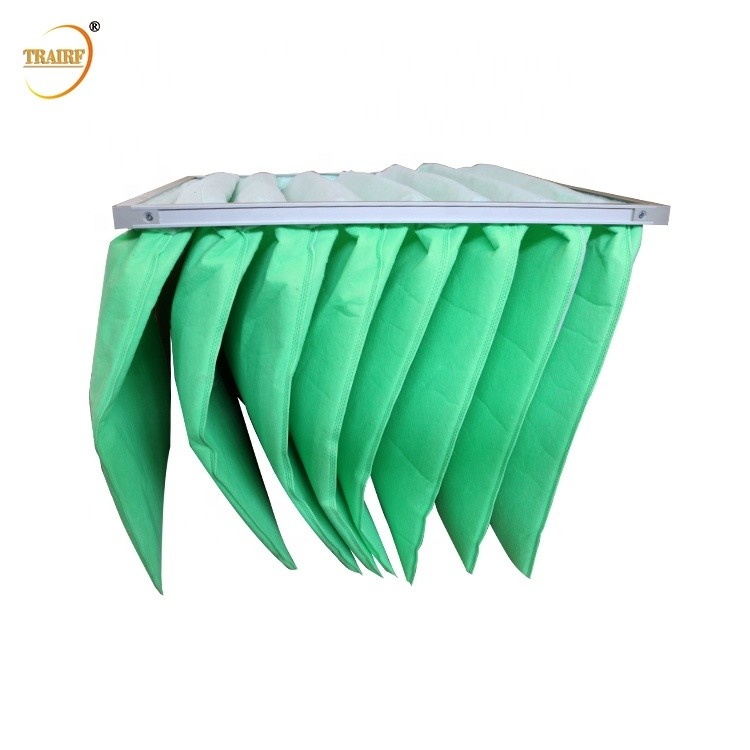

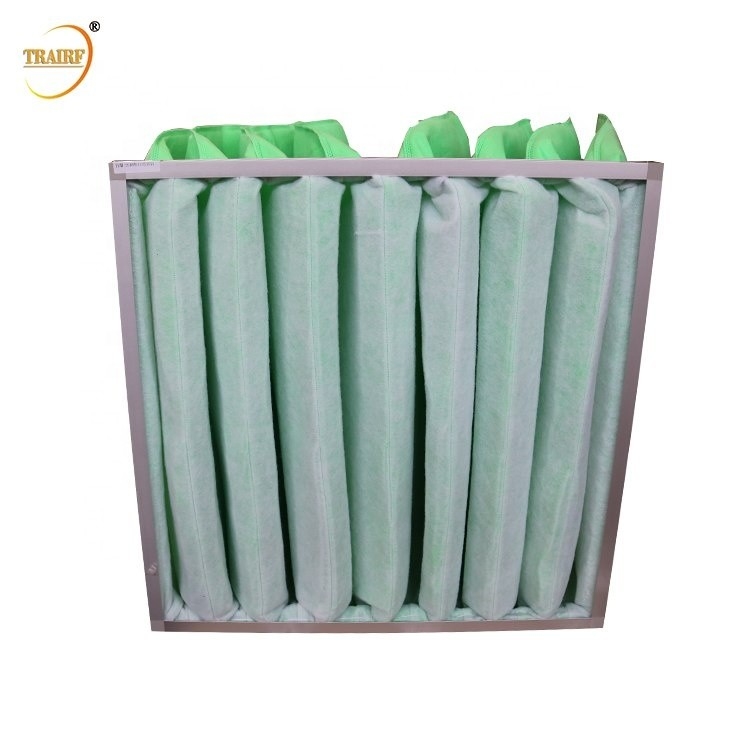

Product Materials, features, specifications
Pocket: 4-8 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: green
Maximum service temperature: 80℃
Maximum humidity: 80%
* Long service life
* Large dust holding capacity
* Can be reused many times
* Small resistance
,* Large air flow
* Low wind speed
* Can be used multiple times
Widely used for intermediate filtration of air conditioning system,
Widely used in central air-conditioning ventilation systems,
Widely used in air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Condition |
New |
|
Efficiency |
65% |
|
Construction |
Bag Filter |
|
Porosity |
1u, |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
295*295*300mm |
|
Weight |
1KG |
|
Warranty |
Unavailable |
|
Filter Media |
Synthetic fiber ,non-woven fabric |
|
Frame |
Galvanized, Aluminium or Stainless steel |
|
Air flow |
1000-3200m³/h |
|
Initial Pressure |
50Pa |
|
Work Temperature |
80℃ |
|
Customized Service |
Available |
Product Parameters
Pocket Filter With Aluminum Frame Filter parameters have model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
| Model | Outside Dimensions(mm) | Rated Air Flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model Of Filter Media | Pockets |
| TR-ZXD-P1 |
495×295×500mm 20”×12” ×20” |
1000m³/h | 50-130 Pa |
45% F5 65% F6 85% F7 95% F8 99% F9 colorimetric |
F5 White F6 Green F7 Pink F8 Yellow F9 Yellow |
5 |
| TR-ZXD-P2 |
495×295×500mm 20”×12” ×20” |
1800m³/h | 5 | |||
| TR-ZXD-P3 |
595×295×500mm 24”×12” ×20” |
1300m³/h | 6 | |||
| TR-ZXD-P4 |
595×595×500mm 24”×24” ×20” |
2200m³/h | 6 | |||
| TR-ZXD-P5 |
495×295×600mm 20”×12” ×24” |
2600m³/h | 8 | |||
| TR-ZXD-P6 |
495×495×600mm 20”×20” ×24” |
1200m³/h | 5 | |||
| TR-ZXD-P7 |
495×295×600mm 20”×12” ×24” |
2200m³/h | 5 | |||
| TR-ZXD-P8 |
595×295×600mm 24”×12” ×24” |
1600m³/h | 6 | |||
| TR-ZXD-P9 |
595×495×600mm 24”×20” ×24” |
2700m³/h | 6 | |||
| TR-ZXD-P10 |
595×595×600mm 24”×24” ×24” |
3200m³/h | 8 |
* Customizable Size
1. FCL Shipment Order, using 5 layers carton case.
2. LCL Shipment order, using wooden case package outside.
3. According to customer's requirements.
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
(1. Turth Factory Supply you with Factory Price
(2. 7-10 days Short Delivery Time base on Strong Producing Strength
(3.With more than 10 Year OEM Service Experience in Air Filter Field
(4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
Send your inquiry directly to us
