Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

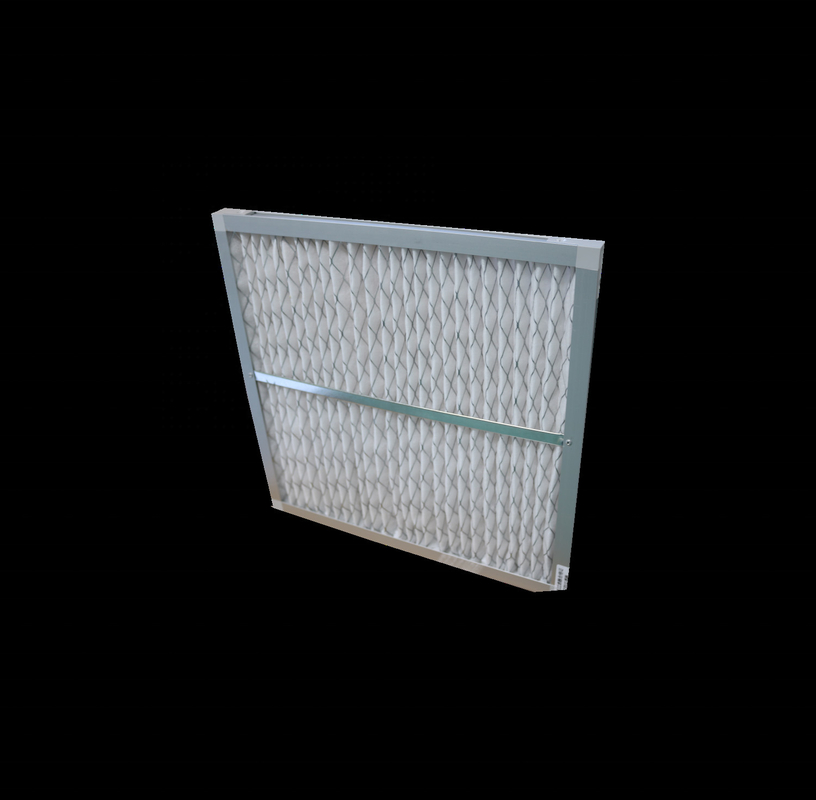

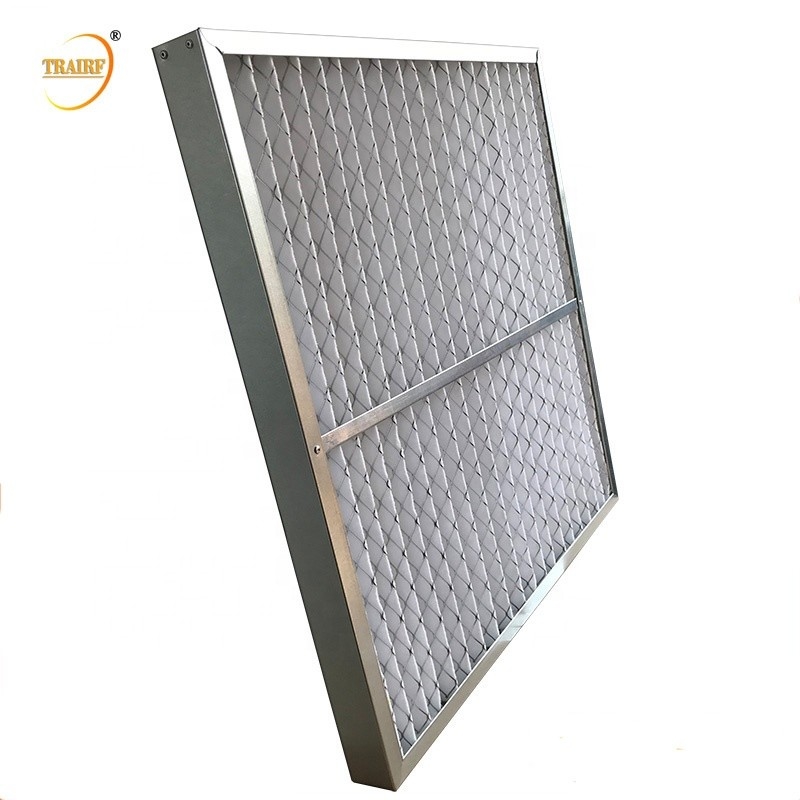

The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust
particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.
Product Materials, features, specifications
* Cheap price
* thin thickness
* Small resistance
* large air flow
Suitable for primary filtration of air conditioning system
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Condition |
New |
|
Efficiency |
G4 |
|
Construction |
Panel Filter |
|
Porosity |
5um |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
customizable |
|
Weight |
1KG |
|
Warranty |
Unavailable |
|
Frame |
Galvanized /aluminium frame |
|
Shape |
Rectangle |
|
MOQ |
1 Pcs |
|
|
|
Process
Used for air dust filtration in high temperature, acid and alkali, outdoor dust filtration and other harsh environment, its material for aluminum corrugated mesh or stainless steel corrugated mesh, at the same time, because of the hardness of the material, it has good endurance, long use time, and can be reused after cleaning.
Product Paramenters
Pre-efficiency filter cotton parameters are model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
| Model |
Outside Dimensions(mm) |
Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) | Model of filter media | |
| TR-CX-P1 |
295×295×10/20 |
800 | 25-50Pa | 40% weight |
G2 G3 G4 |
Nylon nets
|
| TR-CX-P2 | 495×295×10/20 20”×12” ×1/2”/1” |
1300 | ||||
| TR-CX-P3 | 495×495×10/20 20”×20” ×1/2”/1” |
2200 | ||||
| TR-CX-P4 | 595×295×10/20 24”×12” ×1/2”/1” |
1600 | ||||
| TR-CX-P5 | 595×495×10/20 24”×20” ×1/2”/1” |
2700 | ||||
| TR-CX-P6 | 595×595×10/20 24”×24” ×1/2”/1” |
3200 | ||||
* Customizable Size
Certifications
High quality create brand, all our products are passed ISO9001:2008 ,CE certification to make sure provide best products to our clients; Excellent service win good reputation and long term cooperation relationship between our business partners. Using Tianrui Air Filter to Save More Green for Our Home!
