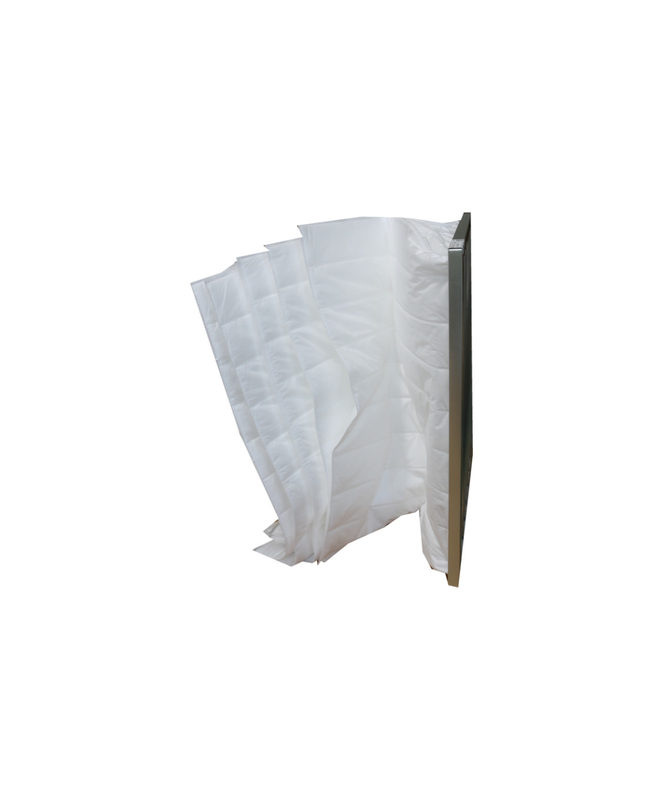

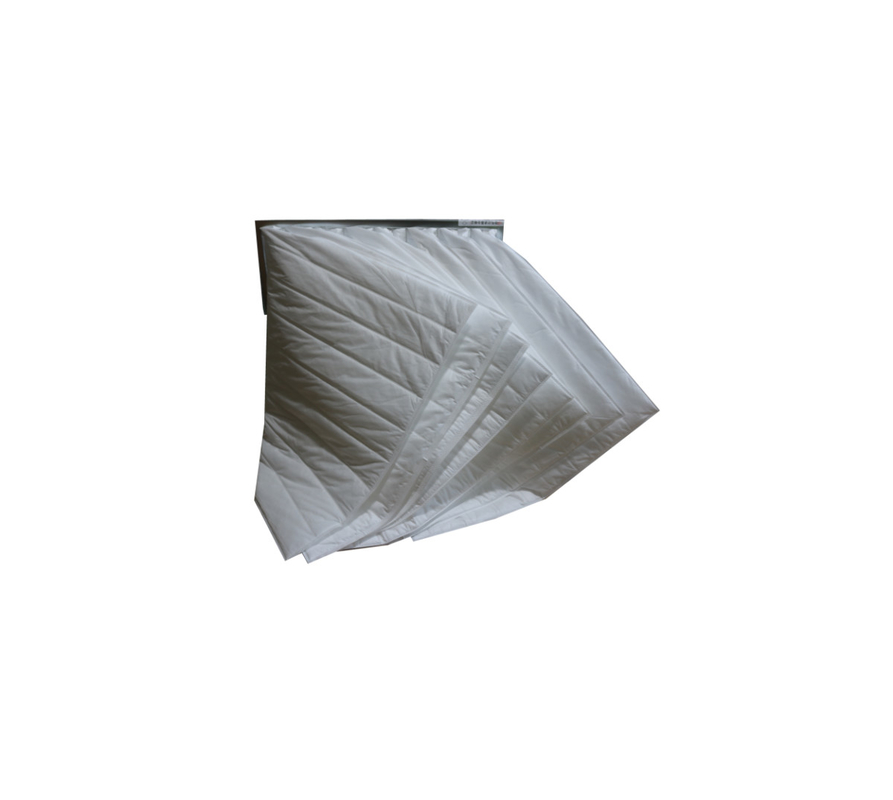

Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.
Product Materials, features, specifications

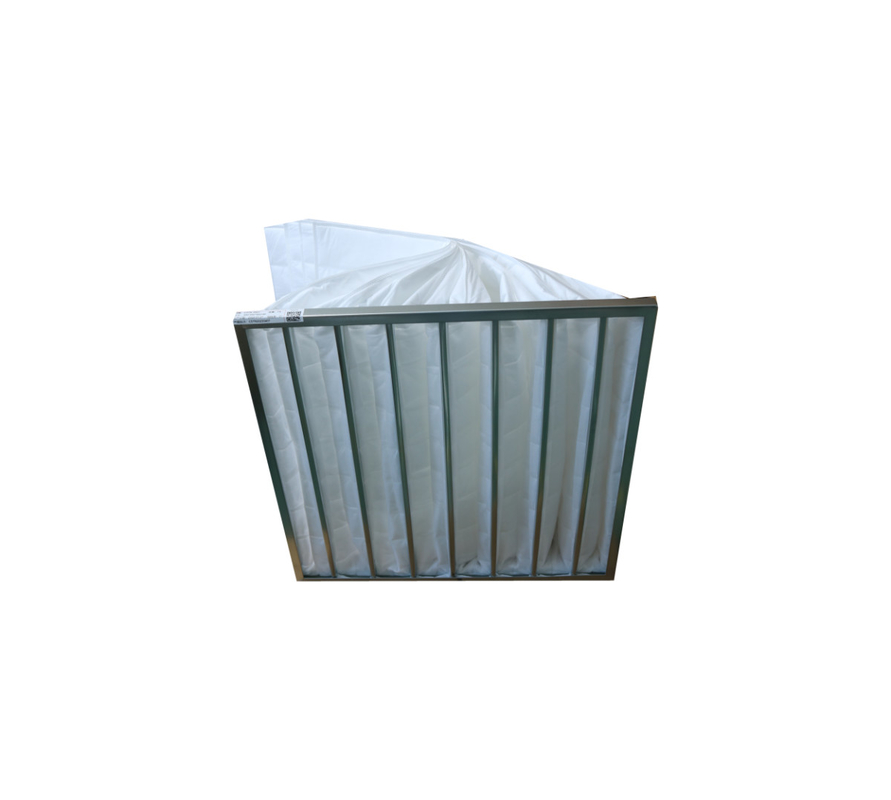

Size: 595*595*600mm
Pocket: 8 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: white
Maximum service temperature: 80℃
Maximum humidity:80%
*Long service life
* Large dust holding capacity
*Can be reused many times
*Small resistance, high air volume, low wind speed
Widely used in air conditioning system intermediate filtration;
Clean room fresh air system, etcs.
|
Item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Condition |
New |
|
Efficiency |
F9 |
|
Construction |
Bag Filter |
|
Porosity |
1um |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
customizable |
|
Weight |
1KG |
|
Warranty |
Unavailable |
|
|
8 pockets |
|
Filtration Grade |
F9 |
|
Frame material |
Alluinum Alloy/Galvanized frame |
|
MOQ |
1 pc |
|
Packing |
carton packing |
|
Color |
white |
|
Rated air flow |
1000-3200㎡/h |
|
Initial resistance |
50-100Pa |
Product Paramenters
Middle Efficiency Synthetic Fiber Pocket parameters have model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
| Model | Outside Dimensions(mm) | Rated Air Flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model Of Filter Media | |
| TR-ZXD-P1 |
495×295×500mm 20”×12” ×20” |
1000m³/h | 50-130 Pa |
45% F5 65% F6 85% F7 95% F8 99% F9 colorimetric |
F5 White F6 Green F7 Pink F8 Yellow F9 Yellow |
5 |
| TR-ZXD-P2 |
495×295×500mm 20”×12” ×20” |
1800m³/h | 5 | |||
| TR-ZXD-P3 |
595×295×500mm 24”×12” ×20” |
1300m³/h | 6 | |||
| TR-ZXD-P4 |
595×595×500mm 24”×24” ×20” |
2200m³/h | 6 | |||
| TR-ZXD-P5 |
495×295×600mm 20”×12” ×24” |
2600m³/h | 8 | |||
| TR-ZXD-P6 |
495×295×600mm 20”×12” ×24” |
1200m³/h | 5 | |||
| TR-ZXD-P7 |
495×295×600mm 20”×12” ×24” |
2200m³/h | 5 | |||
| TR-ZXD-P8 |
595×295×600mm 24”×12” ×24” |
1600m³/h | 6 | |||
| TR-ZXD-P9 |
595×495×600mm 24”×20” ×24” |
2700m³/h | 6 | |||
| TR-ZXD-P10 |
595×595×600mm 24”×24” ×24” |
3200m³/h | 8 |
* Customizable Size
