Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
Description:

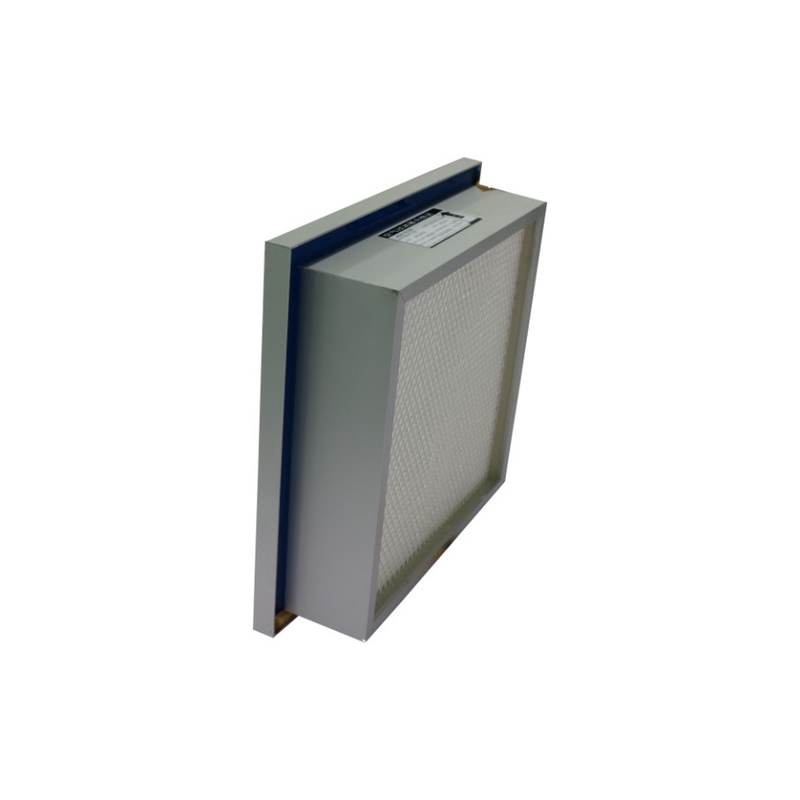

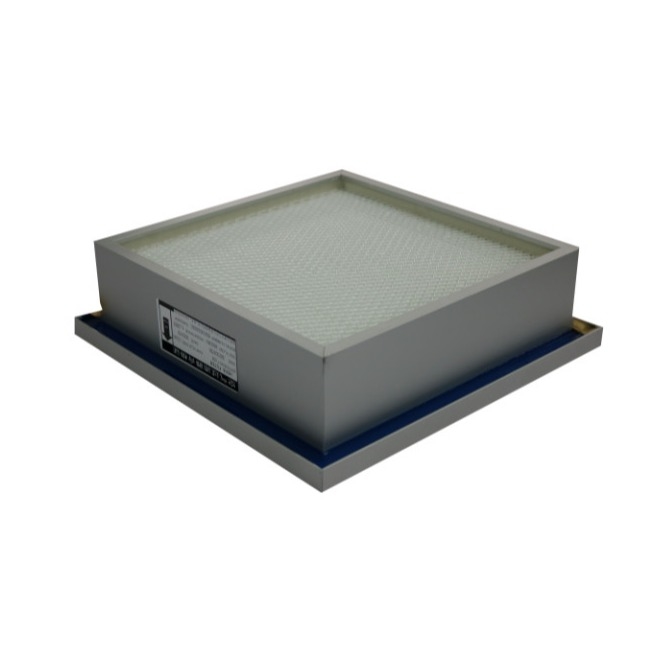

Gel Seal Hepa Air Filter used micro fiberglass material as filter media, both air inlet side and air outlet side with melded wire protect mesh. It is mainly used for high efficiency filtration of all kinds of clean factories which required vertical air supply. It's with long service life because it owns large filtration area and low resistance.
Parameter:
|
Model |
Dimensions(mm) |
Airflow(m³/h) |
Initial Resistance(Pa) |
Efficiency(%)(0.3um) |
Dust Capacity(g) |
|
TR-YCGX-1 |
610*610*50 |
700 |
≤220 or ≤140 HV |
≥ 99.99 |
450 |
|
TR-YCGX-2 |
915*610*50 |
1000 |
≤220 or ≤140 HV |
≥ 99.99 |
680 |
|
TR-YCGX-3 |
1220*610*50 |
1400 |
≤220 or ≤140 HV |
≥ 99.99 |
900 |
|
TR-YCGX-4 |
610*610*69 |
1000 |
≤220 or ≤140 HV |
≥ 99.99 |
560 |
* Customization is available.
Features :
1.High Quality hepa filter is the finally filtration in clean room that used for particles more than 0.3um.
2.Large dust holding capacity ,the filter media adopts the ultra-thin glass fiber,
the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3.Frame: stainless steel, aluminum alloy, galvanized plate
4.Filter media: Micro Glassfiber
5.Sealant around the media prevent the air filter is without any air leaking.
6.Hepa filter for pharmaceuticals with metal screens,prevent the media is without any damage.
7.Light weight for easy installation.
Advantages:
1. Air inlet and outlet side both with protective mesh
2. Low resistance , Large airflow area , High air flow
3. Long service life
4. High Leakproofness
5. High performance and high efficiency
Applications:
Gel seal HEPA filter widely apply in clean room, large area vertical laminar flow, class 100 laminar flow hood, biological safety cabinet, Biological Tech , Laboratory ,Bioclean room, Pharmaceutical,building,food,automobile Factory and dust free room.
