Applications:

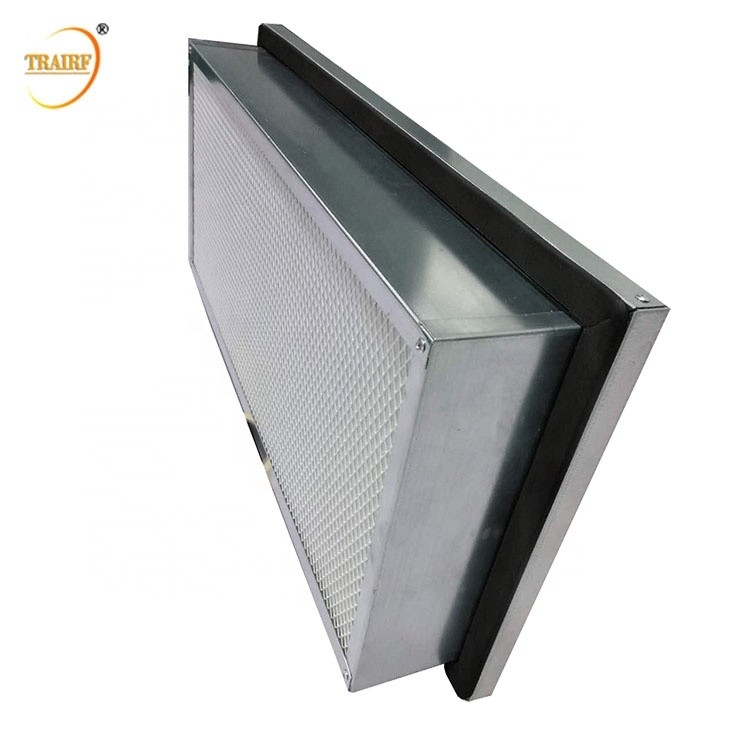

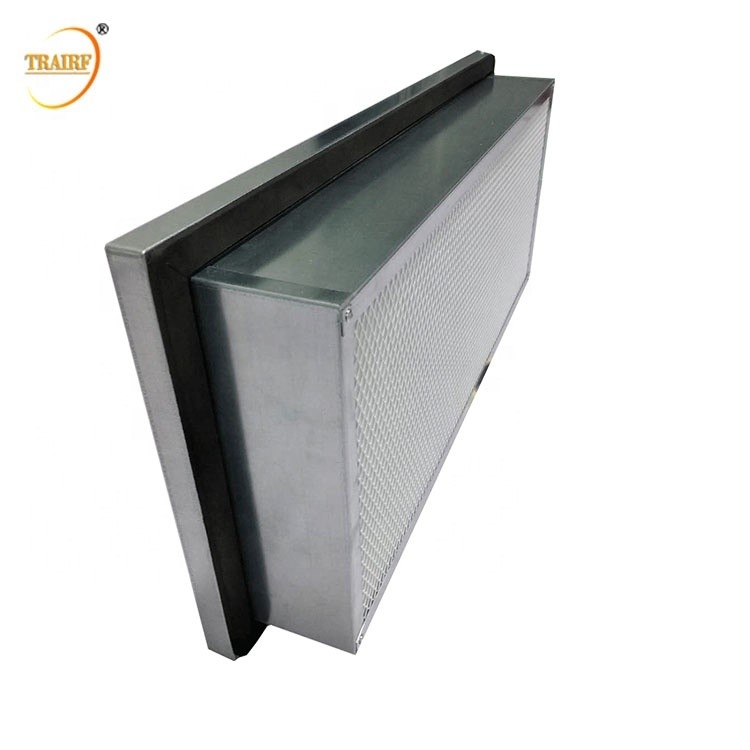

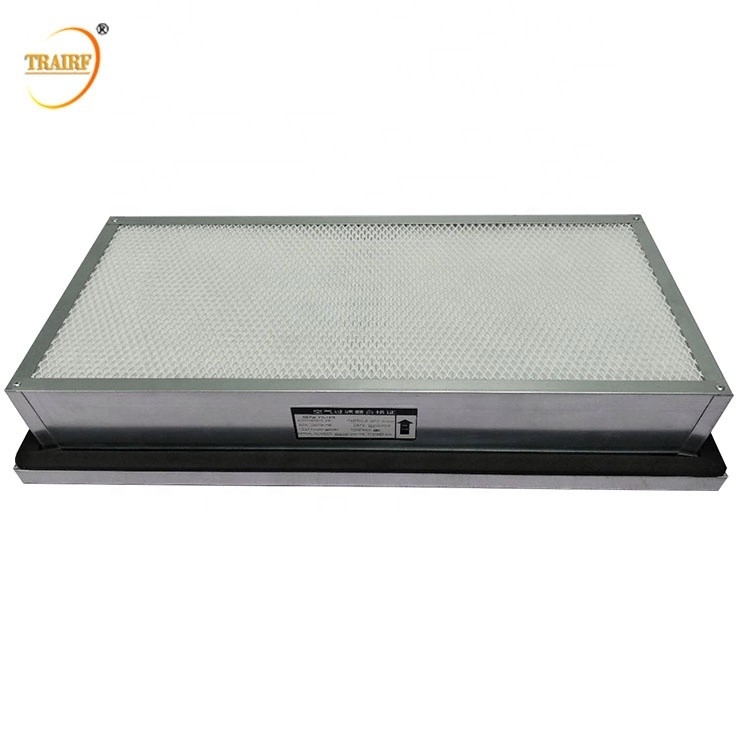

HEPA liquid tank gel seal air filter are main used for Clean room,building,food,automobile,residential,air purifying;ventilation system,air conditional system, furnace system etc
Features :
1.High efficiency for H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um.
2.Large dust holding capacity ,the filter media adopts the ultra-thin glass fiber, the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3.Frame: stainless steel, aluminum alloy, galvanized plate
4.Filter media: filter cotton,glass fiber, synthetic fiber, Polyester
5.Sealant around the media prevent the air filter is without any air leaking.
6.HEPA filter with metal screens,prevent the media is without any damage.
7.Light weight for easy to install.
Parameters:
|
Model
|
Dimensions(mm)
|
Airflow(m³/h)
|
Initial Resistance(Pa)
|
Efficiency(%)(0.3um)
|
Dust Capacity(g)
|
|
TR-YCGX-1
|
610*610*50
|
700
|
≤220 or ≤140 HV
|
≥ 99.99
|
450
|
|
TR-YCGX-2
|
915*610*50
|
1000
|
≤220 or ≤140 HV
|
≥ 99.99
|
680
|
|
TR-YCGX-3
|
1220*610*50
|
1400
|
≤220 or ≤140 HV
|
≥ 99.99
|
900
|
|
TR-YCGX-4
|
610*610*69
|
1000
|
≤220 or ≤140 HV
|
≥ 99.99
|
560
|
|
TR-YCGX-5
|
915*610*69
|
1500
|
≤220 or ≤140 HV
|
≥ 99.99
|
840
|
|
TR-YCGX-6
|
1220*610*69
|
2000
|
≤220 or ≤140 HV
|
≥ 99.99
|
1120
|
|
TR-YCGX-7
|
610*610*80
|
1200
|
≤220 or ≤140 HV
|
≥ 99.99
|
650
|
|
TR-YCGX-8
|
610*610*90
|
1400
|
≤220 or ≤140 HV
|
≥ 99.99
|
750
|
|
TR-YCGX-9
|
610*610*100
|
1600
|
≤220 or ≤140 HV
|
≥ 99.99
|
850
|
|
TR-YCGX-10
|
1170*570*69
|
1800
|
≤220 or ≤140 HV
|
≥ 99.99
|
1000
|
|
TR-YCGX-11
|
1170*570*80
|
2200
|
≤220 or ≤140 HV
|
≥ 99.99
|
1250
|
|
TR-YCGX-12
|
1220*610*90
|
2500
|
≤220 or ≤140 HV
|
≥ 99.99
|
1300
|
|
TR-YCGX-13
|
1220*610*90
|
2800
|
≤220 or ≤140 HV
|
≥ 99.99
|
1500
|
|
TR-YCGX-14
|
1220*610*100
|
3200
|
≤220 or ≤140 HV
|
≥ 99.99
|
1700
|
* Customizable Size
Installation precautions
Pay attention to the direction of air flow when installing, and keep consistent with the direction of the arrow on the outer frame.
The installation should be handled lightly, can not be contaminated by any pollution, can not be knocked at the time of installation, can not touch the filter membrane with your hand, to prevent damage to the filter material and sealant.
The installation of the liquid tank filter should be divided into two parts: first install the liquid tank, then install the frame, and finally tighten the bolt.
