Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
Description |
|
1.Style |
Bag filter, Pocket filter |
2.Feature |
Large dust collection, low resistance, large air flow, long service life |
3.Material |
Polyester fiber; Non-woven fabric; Activated carbon fiber |
4.Size |
Customization is available |
5.Color |
White , Orange ,Green , Pink, Yellow , Black |
6.Frame |
Galvanized, Aluminum alloy, Plastic box, Stainless steel |
7.Application |
Air conditioning system , Ventilation system , Electronic, Biological pharmaceutical industry etc. |
8.Efficiency |
35%-95%,G3,G4,F5-F9 |
9.Efficiency |
Trapping 40-60%≥5.0µm particles,60-95%≥1.0µm particles |
10.Packing |
Cartons |
11.Weight |
Based on size&material,thickness |
12.certification |
ISO9001,CE certificate |
Specifications

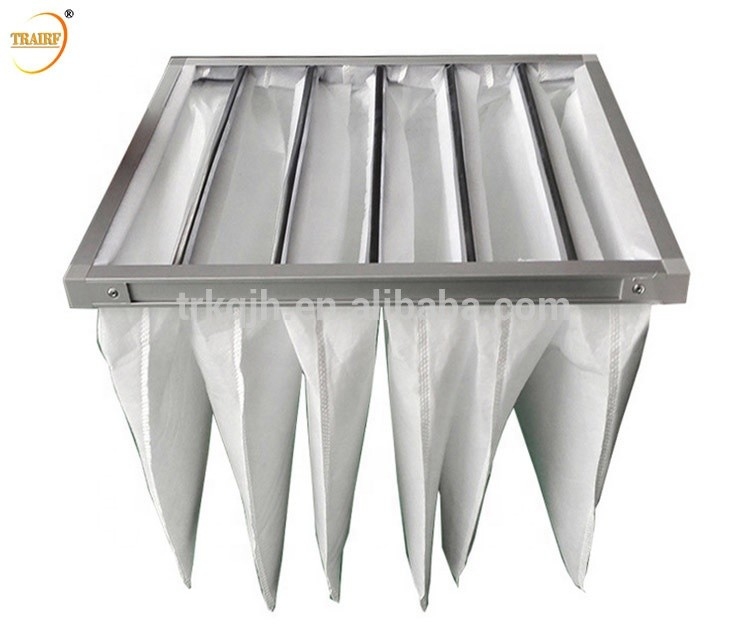

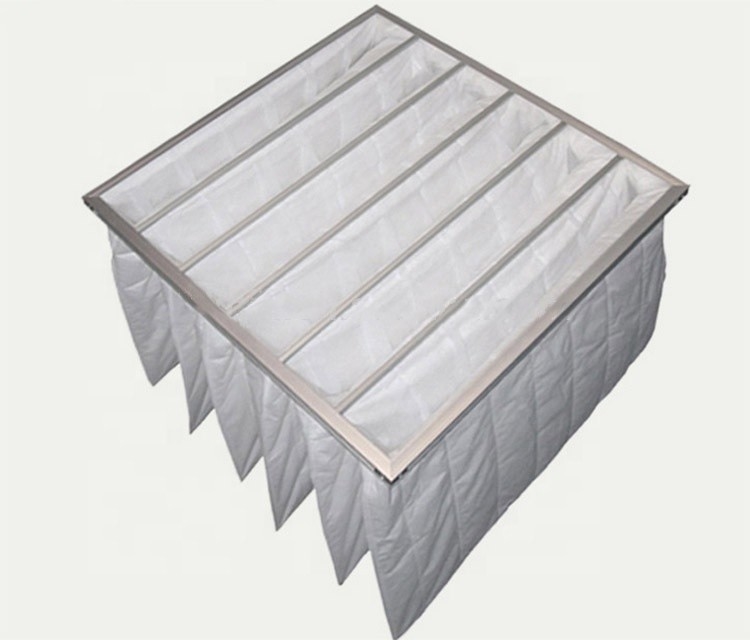

The primary bag filter is suitable for pre-filtration for air conditioner system, and widely used in Pharmacy factory, hospital, electronic factory, food factory, etc. to extened HEPA Filter service life and reduce filtration cost.
Class | Size(mm)H*W*D | Bags | Filtration area | Rated air flow | Initial resistance | Recommend final resistance |
35%(G4) | 287*592*550 | 2 | 1.86 | 1700 | 15 | 350 |
592*592*550 | 5 | 3.12 | 3400 | 20 | ||
592*592*600 | 6 | 3.78 | 3400 | 20 | ||
45%(F5) | 287*592*550 | 3 | 2.12 | 1700 | 20 | 400 |
592*592*550 | 5 | 3.66 | 3400 | 30 | ||
592*592*600 | 6 | 4.46 | 3400 | 30 | ||
65%(F6) | 287*592*550 | 3 | 2.12 | 1700 | 45 | 400 |
592*592*550 | 5 | 3.66 | 3400 | 80 | ||
592*592*600 | 6 | 4.40 | 3400 | 80 | ||
85%(F7) | 287*592*550 | 3 | 2.80 | 1700 | 100 | 400 |
592*592*500 | 5 | 4.78 | 3400 | 125 | ||
592*592*600 | 6 | 5.78 | 3400 | 125 | ||
95%(F8) | 287*592*550 | 3 | 2.80 | 1700 | 110 | 450 |
592*592*500 | 5 | 4.78 | 3400 | 130 | ||
592*592*600 | 6 | 5.78 | 3400 | 130 |
* Customizable Size
Advantage:
1.Low resistance, large air flow
2.Large dust holding capacity and long service life
3.Washable filter media, cost economical
4.Use the highest temperature, humidity:80℃,80%
Main Features:
1.Frame: stainless steel, aluminum alloy, galvanized plate
2.Filter media: Pre Filter Cotton
3.Type: bag air filter,pocket air filter
4.Pocket length Customized according to your requirements
