Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
Features:

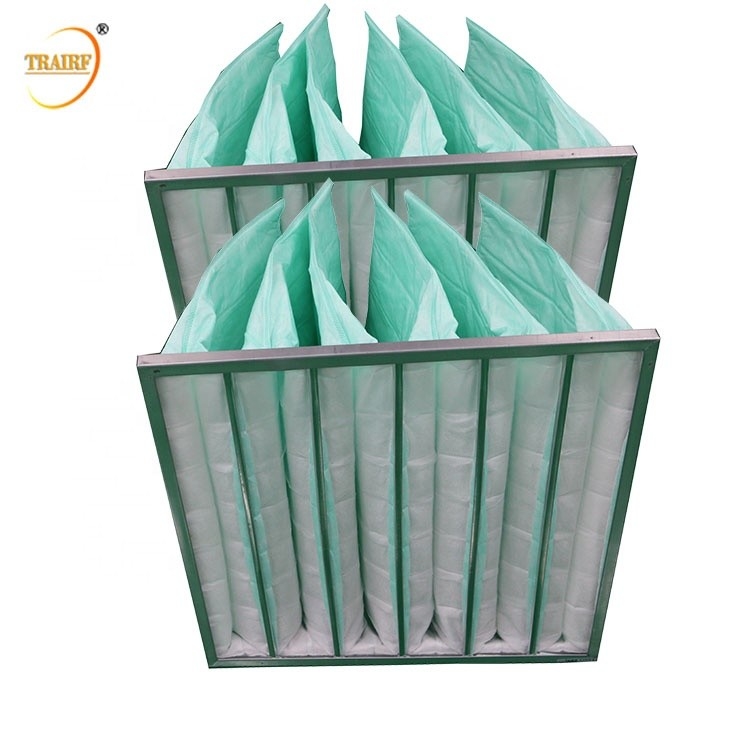

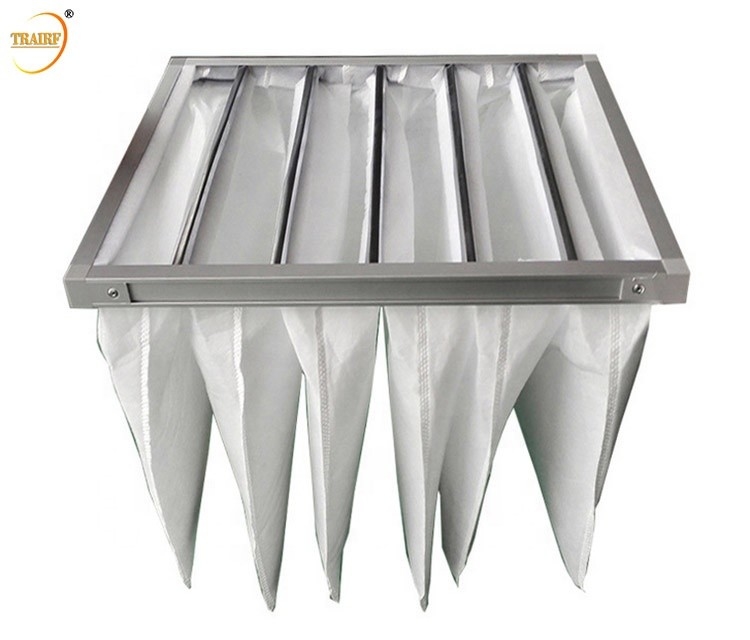

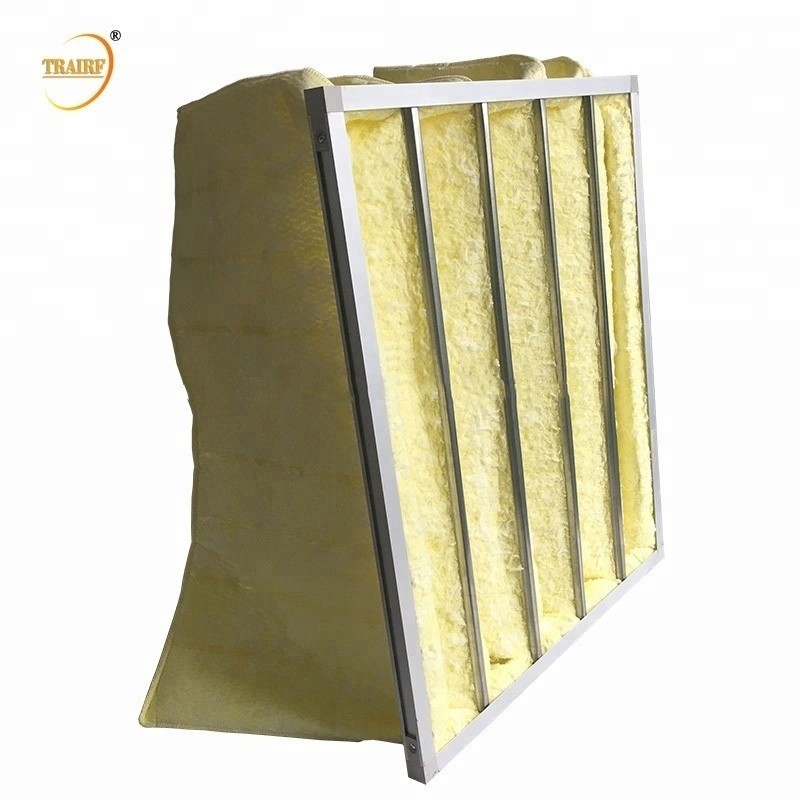

Bag Filter is designed to a V-Shape pocket with extended surface frame. V-Shape pocket design allows every pockets to fully inflate and maintain a proper spacing with adjacent pockets. Air can freely through from front to back .
Media:
Fiberglass and Synthetic Fiber filter media are available for TRAIRF® Medium Efficiency pocket air filter. Synthetic fiber media consist of one layer of spun bound on each side for strength and stability, one coarse fiber melt-blown layer for filtration of larger particles and one fine melt-blown layer for filtration of smaller particles.This media is extremely durable and non-shedding. Using a variety of materials, the range of filtration efficiency can be spanned from 45-50% to 90-95% and > 95%
Frame:
Both glass fiber and synthetic fiber filter media Bag Filters consists of individual pockets, which are bonded to a corrosion-resistant header, aluminium alloy and galvanized frame header are available.
|
Filter Construction |
||
|
Filter Type |
Pocket Type |
Extended Surface header type |
|
Filter Media |
Micro Glass Fiber or Synthetic |
|
|
Filter Frame |
Aluminium alloy / Galvanized / Stainless Steel |
|
|
Separator |
individual pockets bonded to a corrosion-resistant header |
|
|
Pocket Color |
F5- White / F6- Green / F7 - Pink / F8 - Yellow / F9 - White |
|
Delivery Time:
1. Sample Order:1-2 days after receive your payment
2. Bulk Order:7-15 days in normal
