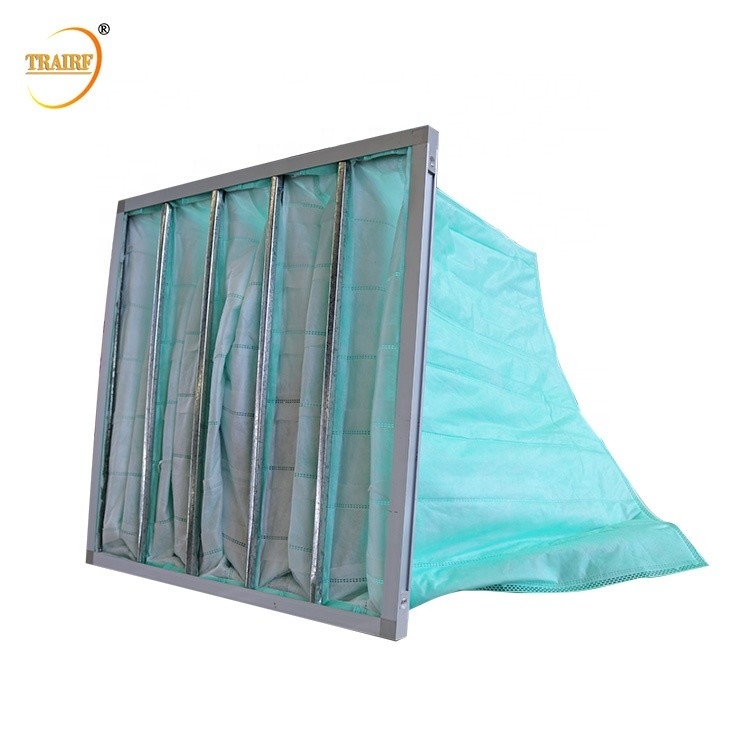

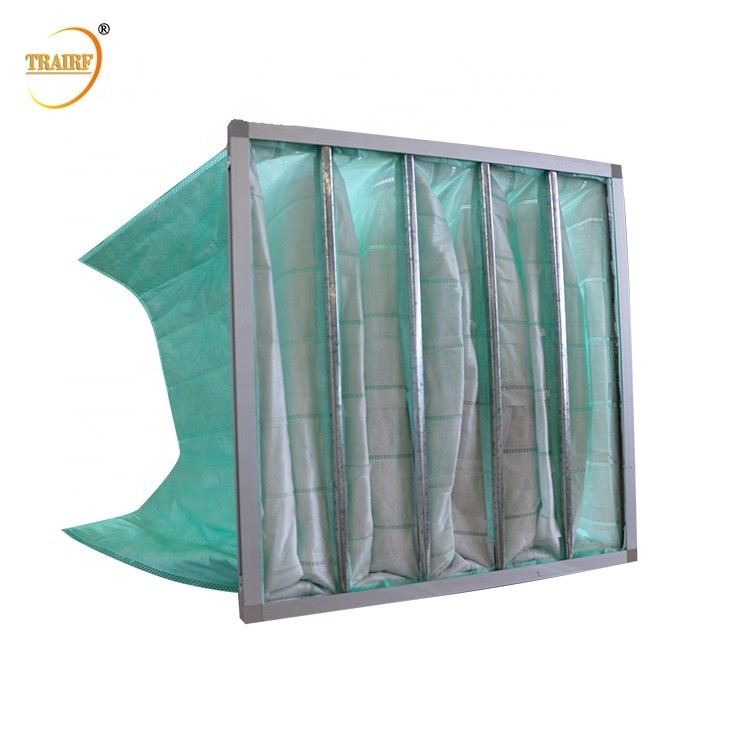

Spray Booth Synthetic Fiber F6 Bag Air Filter

Description:

TRAIRF® Pocket Filter Bag Filter F6  is an extended surface air filter designed for most medium and high efficiency air filtration systems.

The pocket air filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure MultiLayer buildups and eliminate fiber shedding.

TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.

Efficiency:

Synthetic fiber air filter has an average atmospheric dust spot efficiency range 45-50%, 60-65%, 80-85% and 90-95% in NBS Test Method; per ASHRAE 52.2, the efficiency is MERV9, MERV11, MERV12 & MERV14.

Features:

Bag Filter is designed to a V-Shape pocket with extended surface frame. V-Shape pocket design allows every pockets to fully inflate and maintain a proper spacing with adjacent pockets. Air can freely through from front to back .

Filter Media:

Fiberglass and Synthetic Fiber filter media are available for TRAIRF® Medium Filter F5 F6 F7 F8. Synthetic fiber media consist of one layer of spun bound on each side for strength and stability, one coarse fiber melt-blown layer for filtration of larger particles and one fine melt-blown layer for filtration of smaller particles.This media is extremely durable and non-shedding. Using a variety of materials, the range of filtration efficiency can be spanned from 45-50% to 90-95% and > 95%

Frame:

Both glass fiber and synthetic fiber filter media Pocket Filter Bag Filter consists of individual pockets, which are bonded to a corrosion-resistant header, aluminium alloy and galvanized frame header are available.

Applications:

Biomedical,Vehicles,Airlines,Heating, air conditioning,respiratory protection,  clean rooms, industrial processes, and building ventilation systems, Whole House Air Cleaning Systems, Electronic Air Filters for High-End Residential & Commercial Facilities.
