Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us

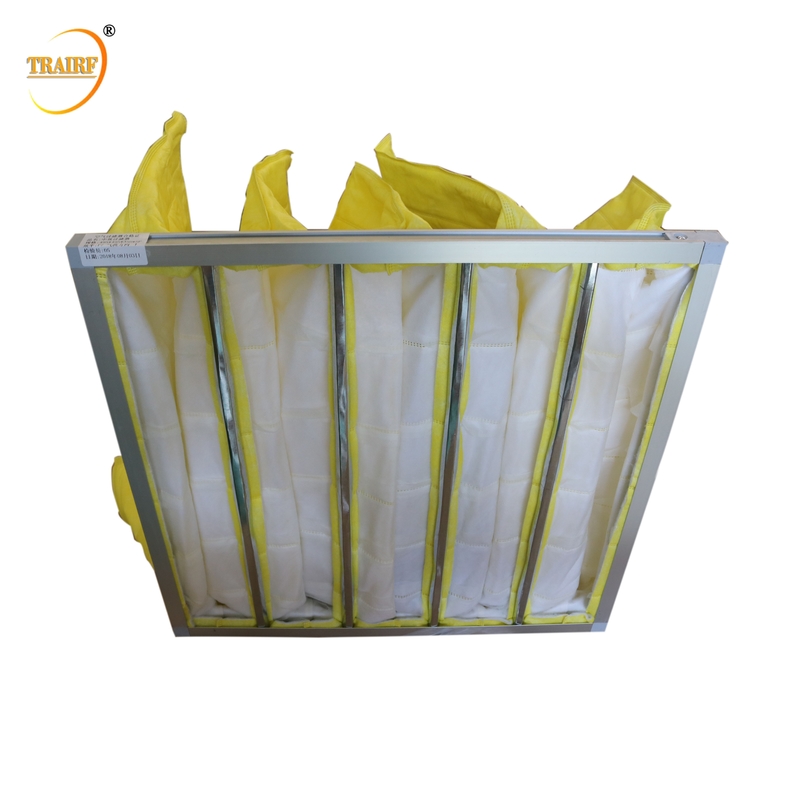

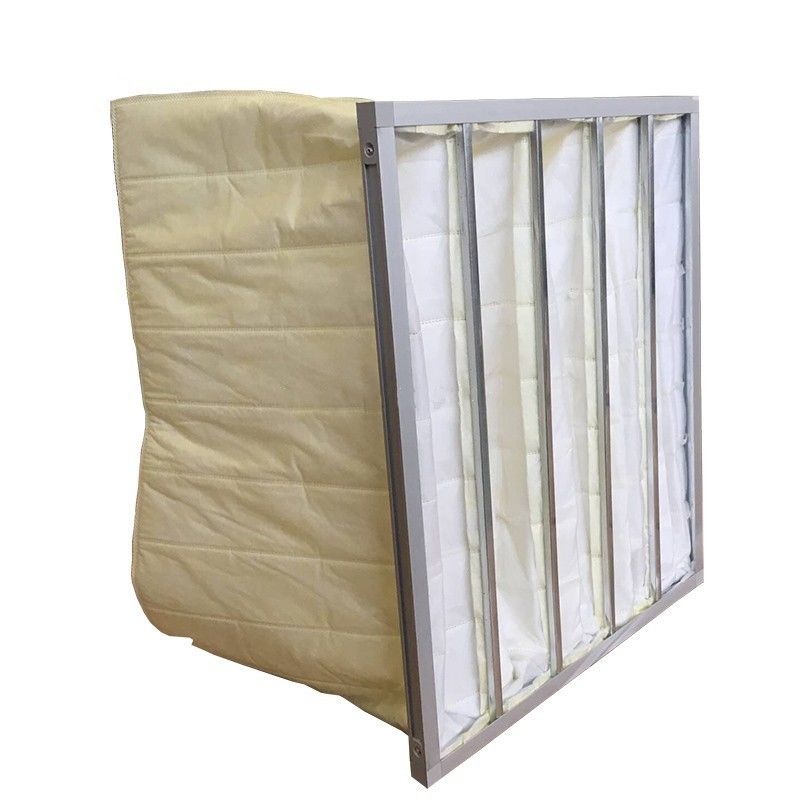

Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.
Product Materials, features, specifications
* Can be used multiple times
* Small resistance,
* Large air flow
* Low wind speed
Widely used for intermediate filtration of air conditioning system,
Widely used in central air-conditioning ventilation systems,
Widely used in air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Core Components |
media |
|
Condition |
New |
|
Efficiency |
F9 |
|
Construction |
Bag Filter |
|
Porosity |
0.5um |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
592*592*500mm |
|
Weight |
1KG |
|
Warranty |
Unavailable |
|
Product name |
G4 F5 F6 F7 F8 F9 Synthetic Media Excel Air Filter Bag |
|
Frame |
Galvanized Steel Frame |
|

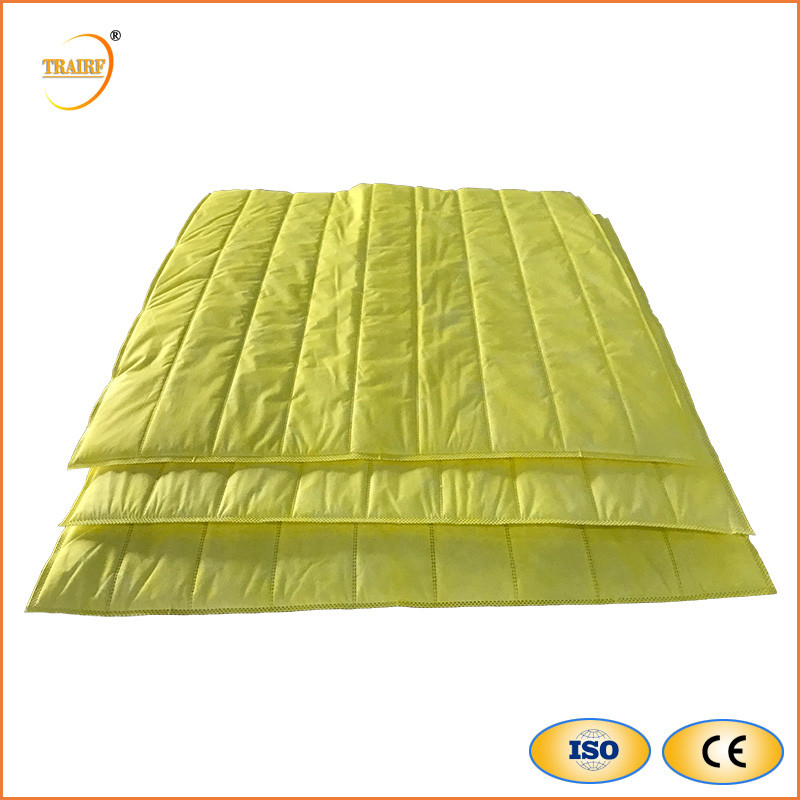

Filter Media |
Synthetic fiber |
|
Efficiency |
F9 |
|
Airflow |
1000-3200CMB/ H |
|
Dust Holding Capacity |
200-2400 g/㎡ |
|
Initial Pressure |
50 Pa |
|
Work Temperature |
80 ℃ |
|
Application |
Air conditioning system |
|
OEM |
Available |
Product Parameters
Medium efficiency bag filter G4 F5 F6 F7 F8 F9 parameters are model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.
| Model | Outside Dimensions(mm) | Rated Air Flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model Of Filter Media | Pockets |
| TR-ZXD-P1 |
495×295×500mm 20”×12” ×20” |
1000 | 50-130 Pa |
45% F5 65% F6 85% F7 95% F8 99% F9 colorimetric |
F5 White F6 Green F7 Pink F8 Yellow F9 Yellow |
5 |
| TR-ZXD-P2 |
495×295×500mm 20”×12” ×20” |
1800 | 5 | |||
| TR-ZXD-P3 |
595×295×500mm 24”×12” ×20” |
1300 | 6 | |||
| TR-ZXD-P4 |
595×595×500mm 24”×24” ×20” |
2200 | 6 | |||
| TR-ZXD-P5 |
495×295×600mm 20”×12” ×24” |
2600 | 8 | |||
| TR-ZXD-P6 |
495×495×600mm 20”×20” ×24” |
1200 | 5 | |||
| TR-ZXD-P7 |
495×295×600mm 20”×12” ×24” |
2200 | 5 | |||
| TR-ZXD-P8 |
595×295×600mm 24”×12” ×24” |
1600 | 6 | |||
| TR-ZXD-P9 |
595×495×600mm 24”×20” ×24” |
2700 | 6 | |||
| TR-ZXD-P10 |
595×595×600mm 24”×24” ×24” |
3200 | 8 |
* Customizable Size
1. FCL Shipment Order, using 5 layers carton case
2. LCL Shipment order, using wooden case package outside
3.Customization
