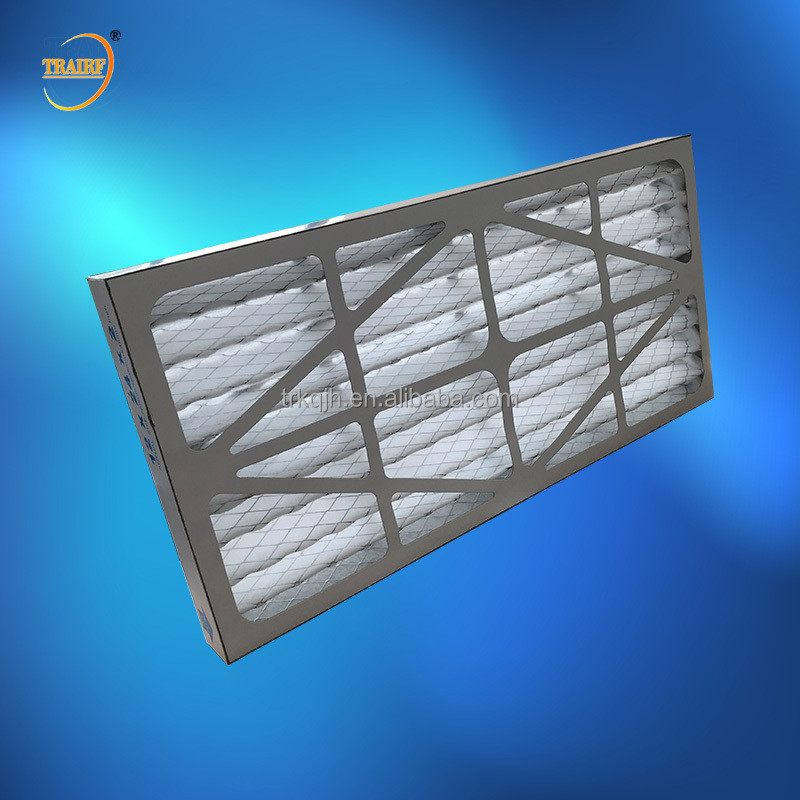

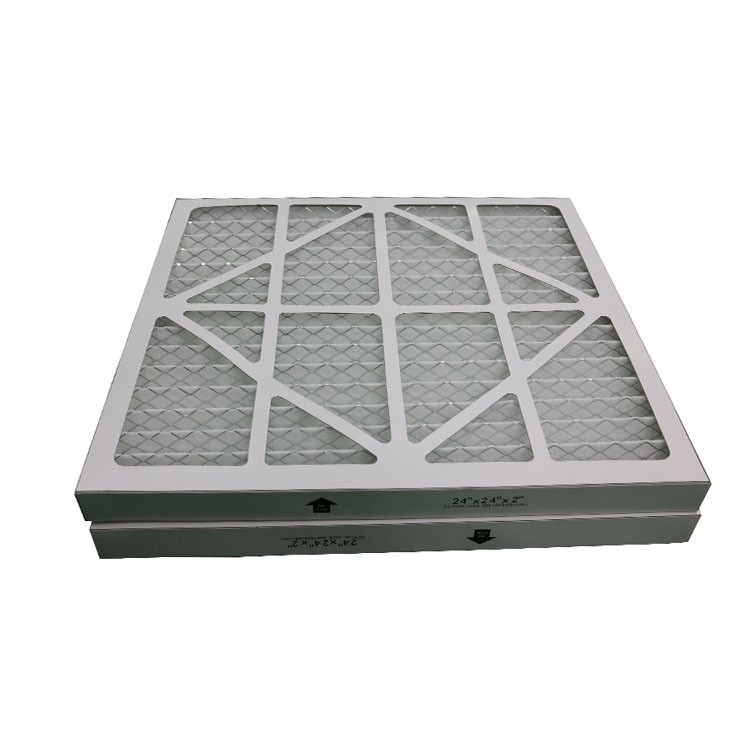

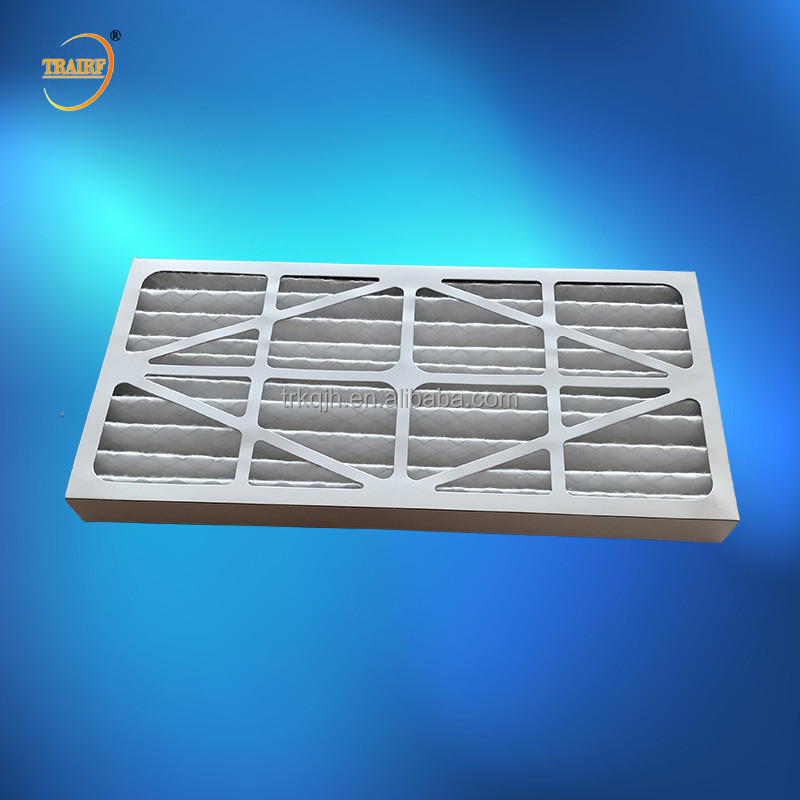

AHU Filter Cardboard Pleated Panel Filtration Class M5 Pre Air Filter
Applications:
1. Central Air Conditioner System
2.Pre-filtration for clean-room,general Industry Ventilation system
3. Automobile industry,residential,air purifying
Features:
1. Frame: Moisture resistance cardboard; Aluminum alloy; Galvanized plate;
2. Unique support structure to ensure folding shape of filter media,simply to change and installation,can be widely used in air conditioner system, ventilation system, automobile industry, air purifying fields etc
3. Low resistance, large dust holding capacity
1.Type: Disposable panel moisture resistant cardboard frame filter
2.Filter Media: Mixture of cotton and synthetic fiber
3.Filter class: G3(EN779) MERV6( ASHRAE 52.2)
G4(EN779) MERV8( ASHRAE 52.2)
4.Recommended final pressure drop:250 Pa
5.Temperature: 70ºC maximum in continuous service
6. Fire Rating:UL900
7.Customized Accept , provide OEM service
Specification:
|
Model |
Dimension(mm) |
Airflow(m³/h) |
Initial Resistance(Pa) |
Efficiency(%) |
Filter Media |
|
TR-CX-Z1 |
295*295*46 |
800 |
≤25 |
G3 G4 |
Filter Cotton (Color: Green, blue,white ) |
|
TR-CX-Z2 |
495*295*46 |
1300 |
≤25 |
||
|
TR-CX-Z3 |
495*495*46 |
2200 |
≤25 |
||
|
TR-CX-Z4 |
595*295*46 |
1600 |
≤25 |
||
|
TR-CX-Z5 |
595*495*46 |
2700 |
≤25 |
||
|
TR-CX-Z6 |
595*595*46 |
3200 |
≤25 |
* Customizable Size
Advantages:
1.Low resistance , Large airflow area , High air flow
2. Lower cost
3.OEM Service available
