Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
OVERVIEW :

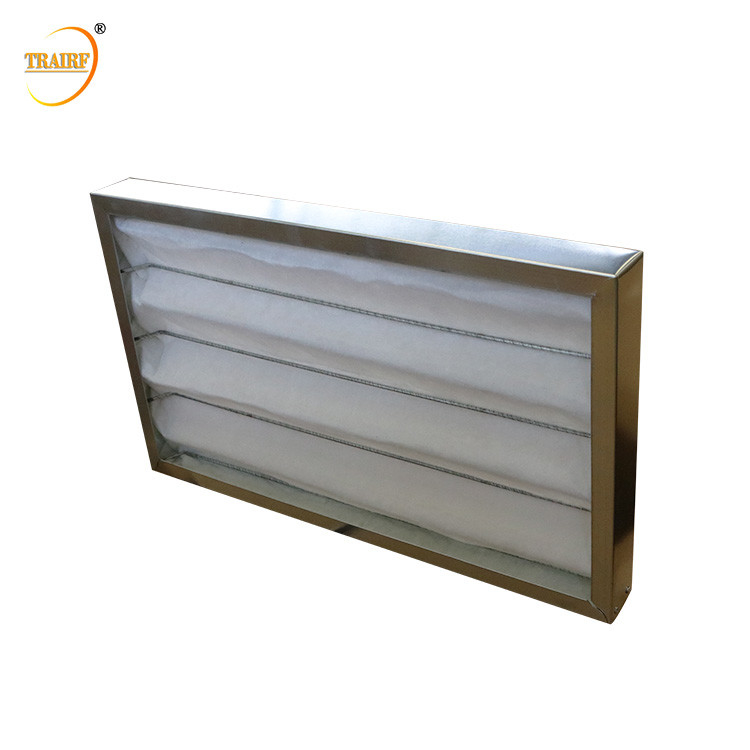

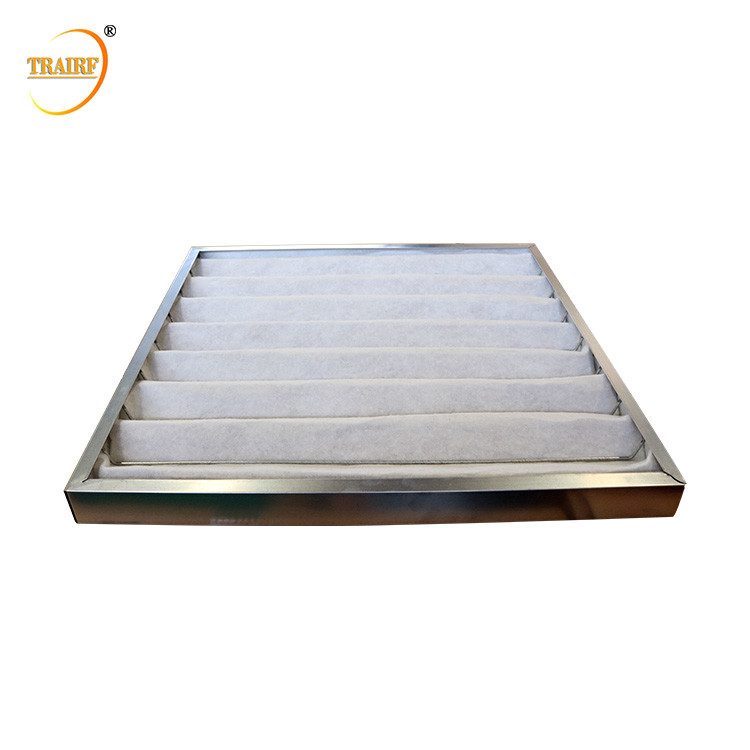

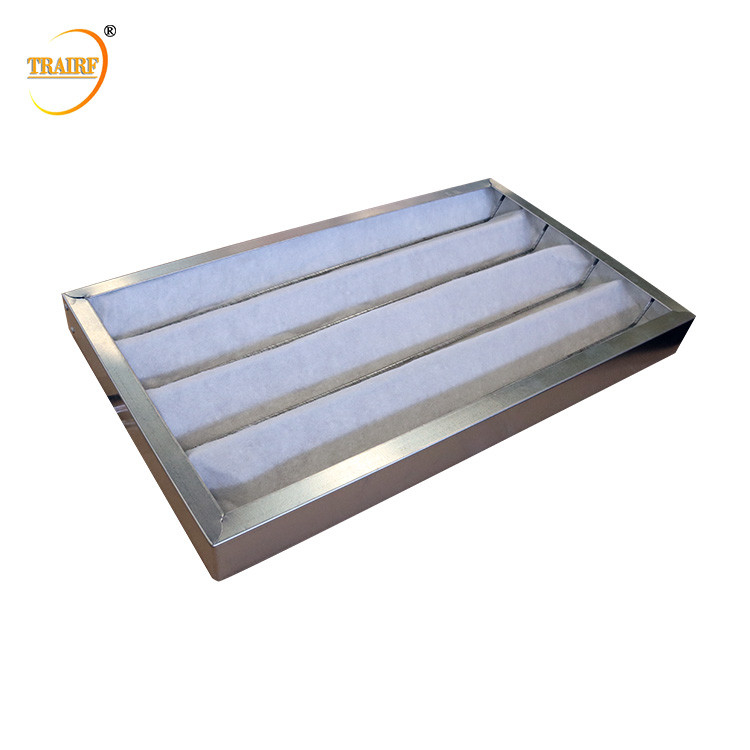

G4 Air conditioning filters (Washable air purifier) is made of high quality polyester synthetic fiber or filter cotton. It has advantages of the large dust holding capacity, low pressure loss in the initial period and lager air flow.
1.The moisture-proof: 100%;
2.Heat resistance: 80℃;
3.The rank of the filtration:G1,G2,G3,G4
|
Material and Performance |
|
|
Product Name |
G4 Washable Air Filter |
|
Frame Material |
Galvanized Frame / Aluminum Alloy |
|
Filter medium |
Synthetic Fiber / coarse cotton filter |
|
Face Guard |
Galvanization net,aluminum nets |
|
Max. humidity |
80%RH |
|
Max. temperature |
80°C |
Parameters
|
Model |
Dimension |
Rate air |
Initial Resistance |
Efficiency |
|
(W*H*D)MM |
(m³/h) |
(pa) |
(Class) |
|
|
TR-CX-Z1 |
295*295*46 |
800 |
25 Pa |
G3 G4 |
|
TR-CX-Z2 |
495*495*46 |
1300 |
||
|
TR-CX-Z3 |
495*495*46 |
2200 |
||
|
TR-CX-Z4 |
595*295*46 |
1600 |
||
|
TR-CX-Z5 |
595*495*46 |
2700 |
||
|
TR-CX-Z6 |
595*595*46 |
3200 |
* Customizable Size
Features:
1. High dust loading capacity
2. Low pressure drop
3. Large air flow
4. Efficiency: G2, G3, G4
5. Low cost
6.Easy installation
7.Long service life
8.Customization is available.
Details:
1. Outer Frame
Strong aluminum alloy frame to protect whole structure.
2. Filter Media
Good quality filters cotton to collect dust effectively.
3. Product Design
Well-organized metal support to prevent filter media falling
Application:
Used as first stage filters in air condition system.
1. Clean rooms (suitable for use in multilayer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
