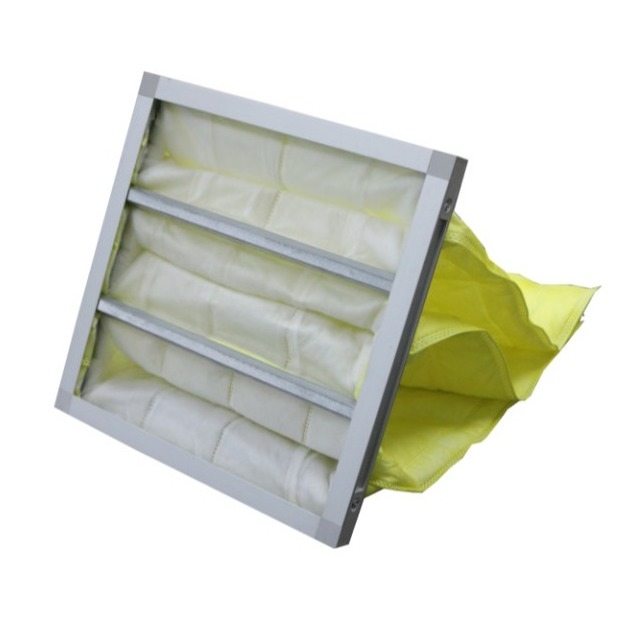

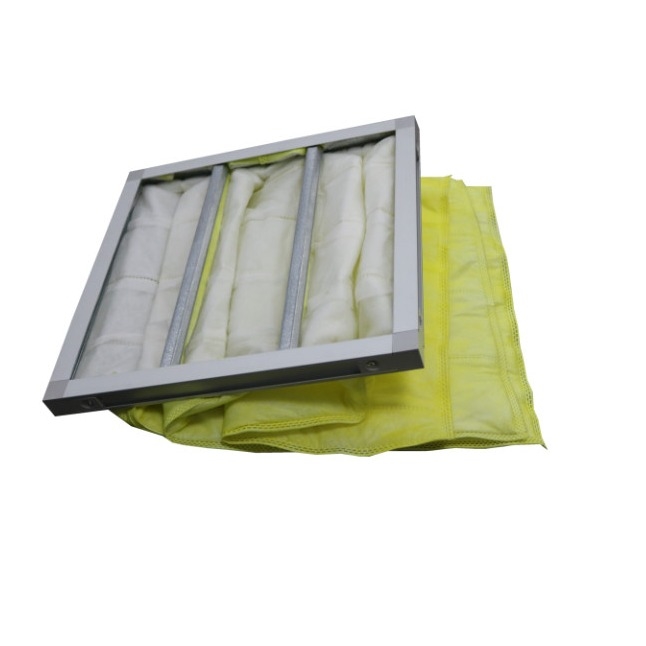

Easy Installation Medium Efficiency F8 Bag Filter High Moisture Resistant
Huajie Pocket Filter Bag Filter F8 is designed to serve as a medium and high efficiency air filter for various air filtration systems. It is constructed with 4 layers of Multiple Layers Synthetic Microfiber, which is built up in non-woven layers to ensure MultiLayer buildups and minimize fiber shedding.
This filter is commonly used in areas such as laboratory, pharmacy, microelectronics, hospital, and food industry that require a high-level cleanliness of air. With medium efficiency air filters, central air conditioning and central air supply systems can be effectively treated before the air is sent to the user, protecting the filters and the system itself.
Feature
Pocket: 3 Pockets
External frame: Aluminum alloy frame
Filter media: New composite non-woven fabric
Color: yellow
Maximum service temperature: 80ºC
Maximum humidity:80%
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency | Model of filter media | Pockets |
| TR-ZXD-P1 |
495*295*500mm
20"×12" ×20"
|
1000m³/h | 50-130Pa |
45% F5
65% F6
85% F7
95% F8
98% F9
colorimetric
|
F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow
|
5 |
| TR-ZXD-P2 |
495*295*500mm
20"×12" ×20"
|
1800m³/h | 5 | |||
| TR-ZXD-P3 |
595*295*500mm
24"×12" ×20"
|
1300m³/h | 6 | |||
| TR-ZXD-P4 |
595*595*500mm
24"×24" ×20"
|
2200m³/h | 6 | |||
| TR-ZXD-P5 |
495*295*500mm
20"×12" ×24"
|
2600m³/h | 8 | |||
| TR-ZXD-P6 |
495*495*500mm
20"×20" ×24"
|
1200m³/h | 5 | |||
| TR-ZXD-P7 |
495*295*500mm
20"×12" ×24"
|
2200m³/h | 5 | |||
| TR-ZXD-P8 |
595*295*500mm
24"×12" ×24"
|
1600m³/h | 6 | |||
| TR-ZXD-P9 |
595*495*500mm
24"×20" ×24"
|
2700m³/h | 6 | |||
| TR-ZXD-P10 |
595*595*500mm
24"×24" ×24"
|
3200m³/h | 8 |
Application
1. Aerospace, electronics, semiconductor, wafer, biopharmaceutical, hospital, food processing and other high cleanliness occasions.
2. Terminal of air conditioning and ventilation system (terminal filtration and hot air type high temperature oven and oven).
3. Hospital operating room, hospital, biopharmaceutical, laboratory, circuit board, microelectronics, optics, LED photoelectric, QS food processing or purification equipment end temperature requirements of clean working environment.
package
There are four type shipping ways you can choose:
1. By Sea.
2. By Air.
3. By Express( DHL, TNT, FedEX, UPS, EMS)
4. By Train( China Railway Express, the line starts in Chengdu and travels through Kazakhstan, Russia and Belarus to end in Lodz)
FAQ
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q: What's your MOQ ?
A: Different standard of MOQ for different goods.
Q: What's your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )
Q: What's your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What's your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance beforeshipment. If you have another question, please feel free to contact us.
