Place of Origin:
Sichuan, China
Brand Name:
trairf
Model Number:
595*295*600mm
Contact Us

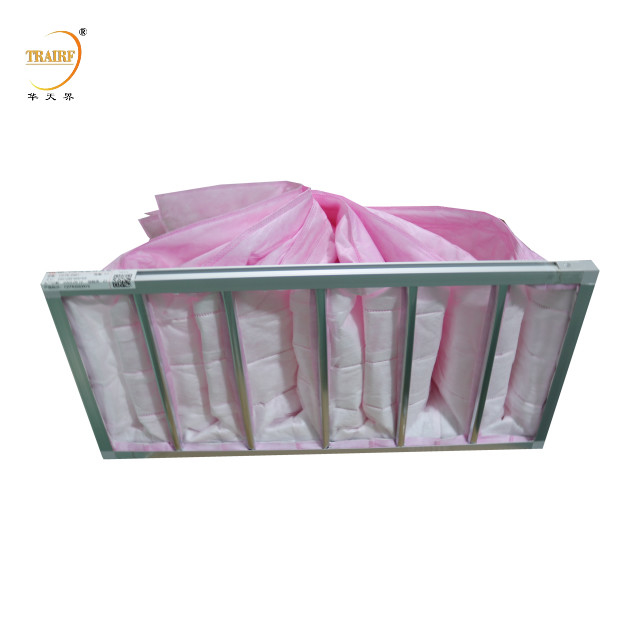

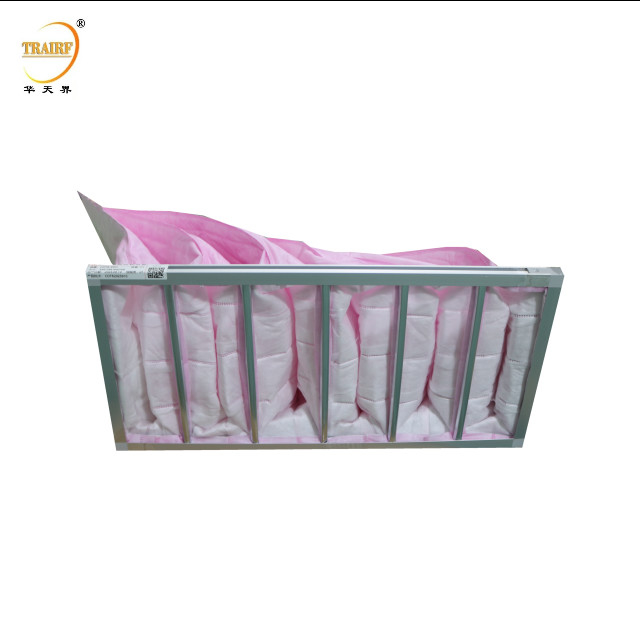

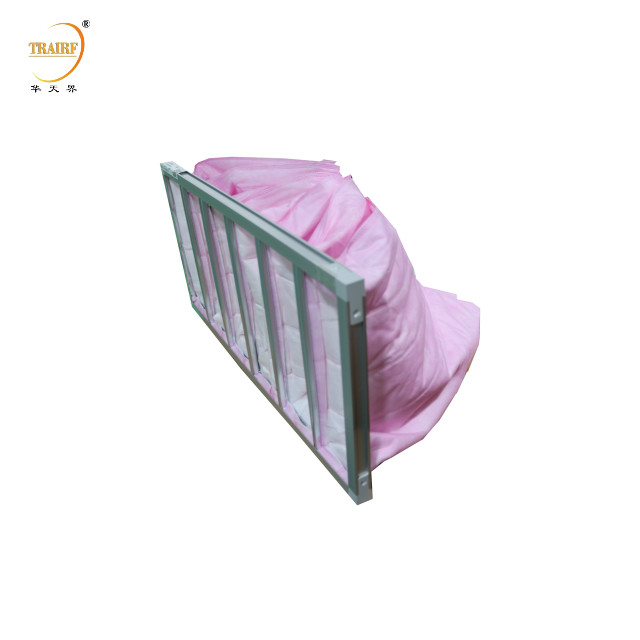

Bag Filter Filtration Aluminium Frame Pocket Air Filter for HAVC System
TRAIRF® Pocket Filter Bag Filter F9 is an extended surface air filter designed for most medium and high efficiency air filtration systems.
The pocket air filter media is composed of 4 layers designed to meet the various ASHRAE standards. The filter media are manufactured of Multiple Layers Synthetic Microfiber. The Synthetic Microfiber build up in non-woven layers to ensure Multi Layer buildups and eliminate fiber shedding.
TRAIRF® Air Filter Bag are widely used in ventilation and air conditioner system of laboratory, pharmacy, microelectronic, hospital, food industry etc which areas requesting a higher degree of air cleanliness.
Product parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency | Model of filter media | Pockets |
| TR-ZXD-P1 | 495*295*500mm 20"×12" ×20" |
1000m³/h | 50-130Pa |
45% F5
65% F6
85% F7
95% F8
98% F9
colorimetric
|
F5
White
F6
Green
F7
Pink
F8
Yellow
F9
Yellow
|
5 |
| TR-ZXD-P2 | 495*295*500mm 20"×12" ×20" |
1800m³/h | 5 | |||
| TR-ZXD-P3 | 595*295*500mm 24"×12" ×20" |
1300m³/h | 6 | |||
| TR-ZXD-P4 | 595*595*500mm 24"×24" ×20" |
2200m³/h | 6 | |||
| TR-ZXD-P5 |
495*295*500mm 20"×12" ×24" |
2600m³/h | 8 | |||
| TR-ZXD-P6 | 495*495*500mm 20"×20" ×24" |
1200m³/h | 5 | |||
| TR-ZXD-P7 | 495*295*500mm 20"×12" ×24" |
2200m³/h | 5 | |||
| TR-ZXD-P8 | 595*295*500mm 24"×12" ×24" |
1600m³/h | 6 | |||
| TR-ZXD-P9 | 595*495*500mm 24"×20" ×24" |
2700m³/h | 6 | |||
| TR-ZXD-P10 | 595*595*500mm 24"×24" ×24" |
3200m³/h | 8 |
*Customizable size
Product Line
Application
1. Clean rooms (suitable for use in multi layer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.
B:Secondly: Competitive Price provided as raw materials are provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)
American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q: What’s your MOQ ?
A: Different standard of MOQ for different goods.
Q: What’s your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )
Q: What’s your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What’s your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance beforeshipment. If you have another question, please feel free to contact us.
