Place of Origin:
Sichuan, China
Brand Name:
trairf
Model Number:
730*330mm
Contact Us

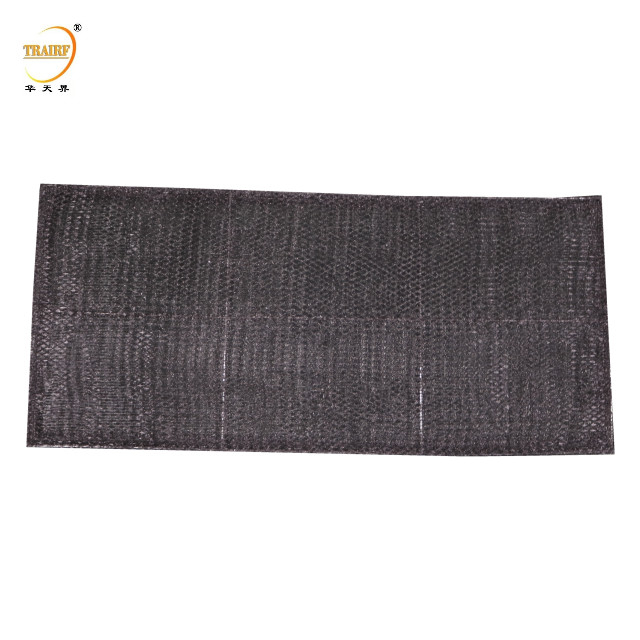

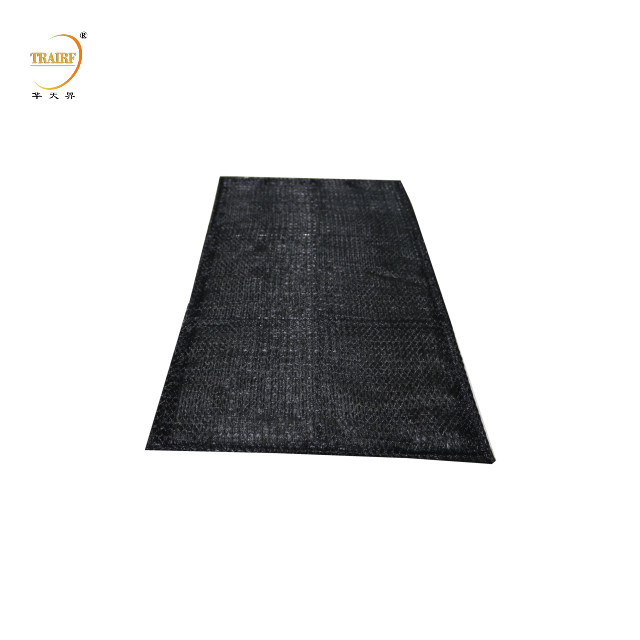

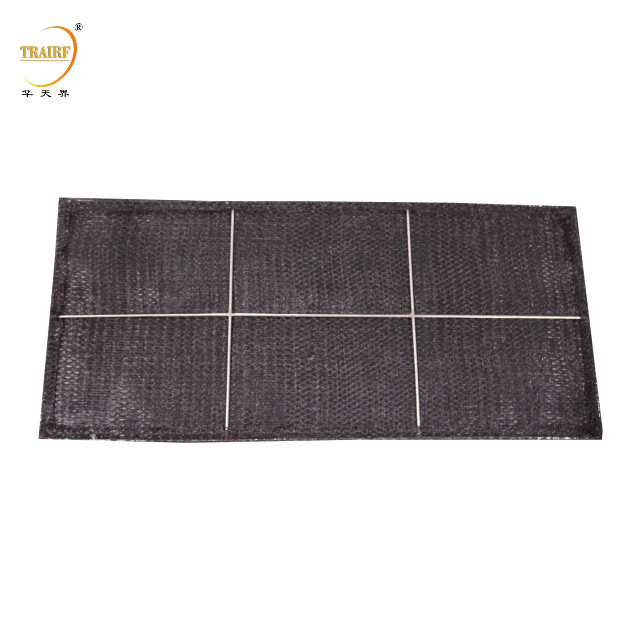

Features
Material: Nylon nets
External frame: aluminium frame
Color: black
Size: Customized size
Weight: 0.5KG
* Cheap price,
* thin thickness
* Small resistance,
*high air volume
Product parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resisatnce(Pa) | Efficiency(class) | Model of filter media | |
| TR-CX-P1 | 295×295×10/20mm 12"×12" ×1/2''/1'' |
800m³/h | 25-50Pa | 40% Weight |
G2 G3 G4 |
Nylon nets Early effect filter cotton Corrugated aluminum nets |
| TR-CX-P2 | 495×295×10/20mm 20"×12" ×1/2''/1'' |
1300m³/h | ||||
| TR-CX-P3 | 495×495×10/20mm 20"×20" ×1/2''/1'' |
2200m³/h | ||||
| TR-CX-P4 | 595×295×10/20mm 24"×12" ×1/2''/1'' |
1600m³/h | ||||
| TR-CX-P5 | 595×495×10/20mm 24"×20" ×1/2''/1'' |
2700m³/h | ||||
| TR-CX-P6 | 595×595×10/20mm 24"×24" ×1/2''/1'' |
3200m³/h | ||||
* Customizable size
Applications:
1. Clean rooms (suitable for use in multilayer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out.
B: Secondly: Competitive Price provided as raw materials are provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)
B: American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q: What’s your MOQ ?
A: Different standard of MOQ for different goods.
Q: What’s your Delivery Way?
A: LCL, 20ft, 40GP, 40HQ, by sea or by air, by express delivery ,by train (Our Company Nearby QINGBAIJIANG International Railway Station which line can be arrival Middle Europe directly and only need to take half month )
Q: What’s your delivery date?
A: Normal delivery date is about 7-20 workdays after payment.
Q:What’s your payment terms?
A:Total amount <=2000USD, 100% T/T in advance. Total amount>=2000USD, 30% T/T in advance and 70% balance beforeshipment. If you have another question, please feel free to contact us.
