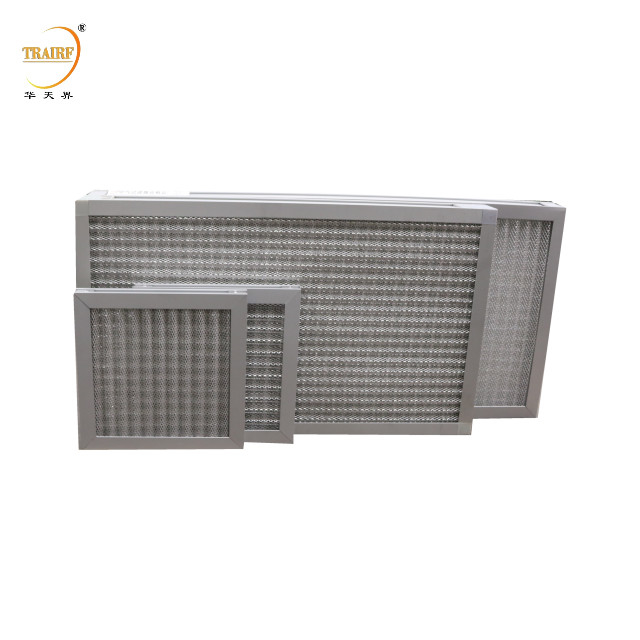

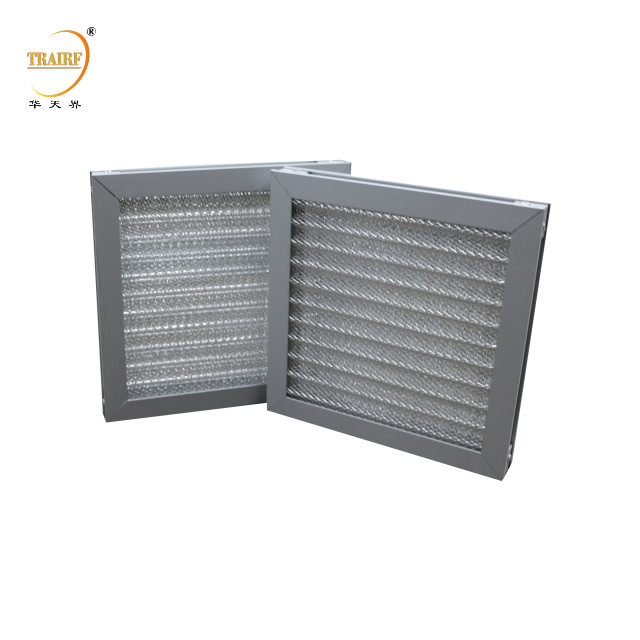

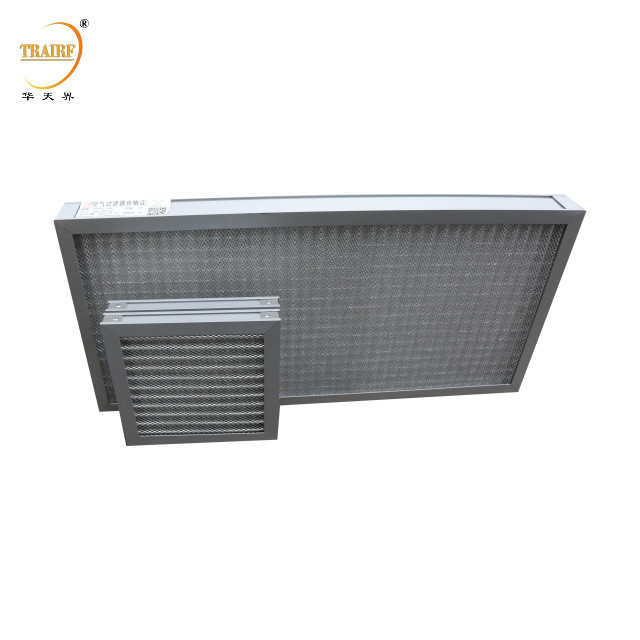

Metal Washable Corrugated Aluminum Mesh Pre Air Filter For Cleaning Equipment



Metal Washable Air Filter Corrugated Aluminum Mesh Air Filter for Cleaning Equipment

The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.



Features:

* Color: sliver

* External Frame: Galvanized frame or aluminum frame

* Cheap price, thin thickness

* Large effective filtration area
* Easy to be installed
* Lower resistance
* Great dust holding capacity



Parameters

Model	Outside dimensions(mm)	Rated air flow(m³/h)	Initial resistance(Pa)	Efficiency(class)		Model of filter media
TR-CX-P1	295×295×10/20mm 12”×12” ×1/2”/1”	800m³/h	25-50Pa	40%weight	G2 G3 G4	Nylon nets   Early effect filter cotton   Corrugated aluminium nets
TR-CX-P2	495×295×10/20mm 20”×12” ×1/2”/1”	1300m³/h
TR-CX-P3	495×495×10/20mm 20”×20” ×1/2”/1”	2200m³/h
TR-CX-P4	595×295×10/20mm 24”×12” ×1/2”/1	1600m³/h
TR-CX-P5	595×495×10/20mm 24”×20” ×1/2”/1”	2700m³/h
TR-CX-P6	595×595×10/20mm 24”×24” ×1/2”/1”	3200m³/h

* Customizable size



Applications:

The use of air purifying systems is widespread across industries and residential areas, ranging from Clean-rooms, buildings, food industry to automobiles.

These systems can be implemented in over ventilation systems, air-conditioning systems, furnace systems, and much more.

It is evident that air systems are commonplace in areas such as industry, residential areas, and other locations, and will help to make our everyday lives and work safer and of higher quality.





Customization:

Preliminary Air Filter - TRAIRF

• Brand Name: TRAIRF
• Place of Origin: China
• Certification: ISO9001
• Minimum Order Quantity: 1 piece
• Price: 7.25-19.36USD
• Packaging Details: carton
• Delivery Time: 4-10 workdays
• Payment Terms: T/T, L/C, D/P
• Supply Ability: 5000 pieces
• Air Flow Rate: 1000 CFM
• Size: Customized Size
• Filter Life: 1-3 Months
• Filter Efficiency: 40%
• Color: Silver



TRAIRF Preliminary Air Filter is the ideal choice for those who need a reliable, high-performance filter in their air filtration system. It boasts superior air flow rate of 1000 CFM, and its filter life can last from 1-3 months. It has a filter efficiency of 40%, and comes in a customized size and silver color. This preliminary air filter is ISO9001 certified with a minimum order quantity of 1 piece. Its price ranges from 7.25-19.36USD, and it is delivered within 4-10 workdays in a carton. Payment terms include T/T, L/C, and D/P. Its supply ability is 5000 pieces.



FAQ:

1. who are we?
We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price

2. 7-10 days Short Delivery Time base on Strong Producing Strength

3.With more than 10 Year OEM Service Experience in Air Filter Field

4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian
